Circuit Diagram
>>
Power Seats (2016 2017 2018 2019 2020 2021 2022)
Power Seats (2016 2017 2018 2019 2020 2021 2022)

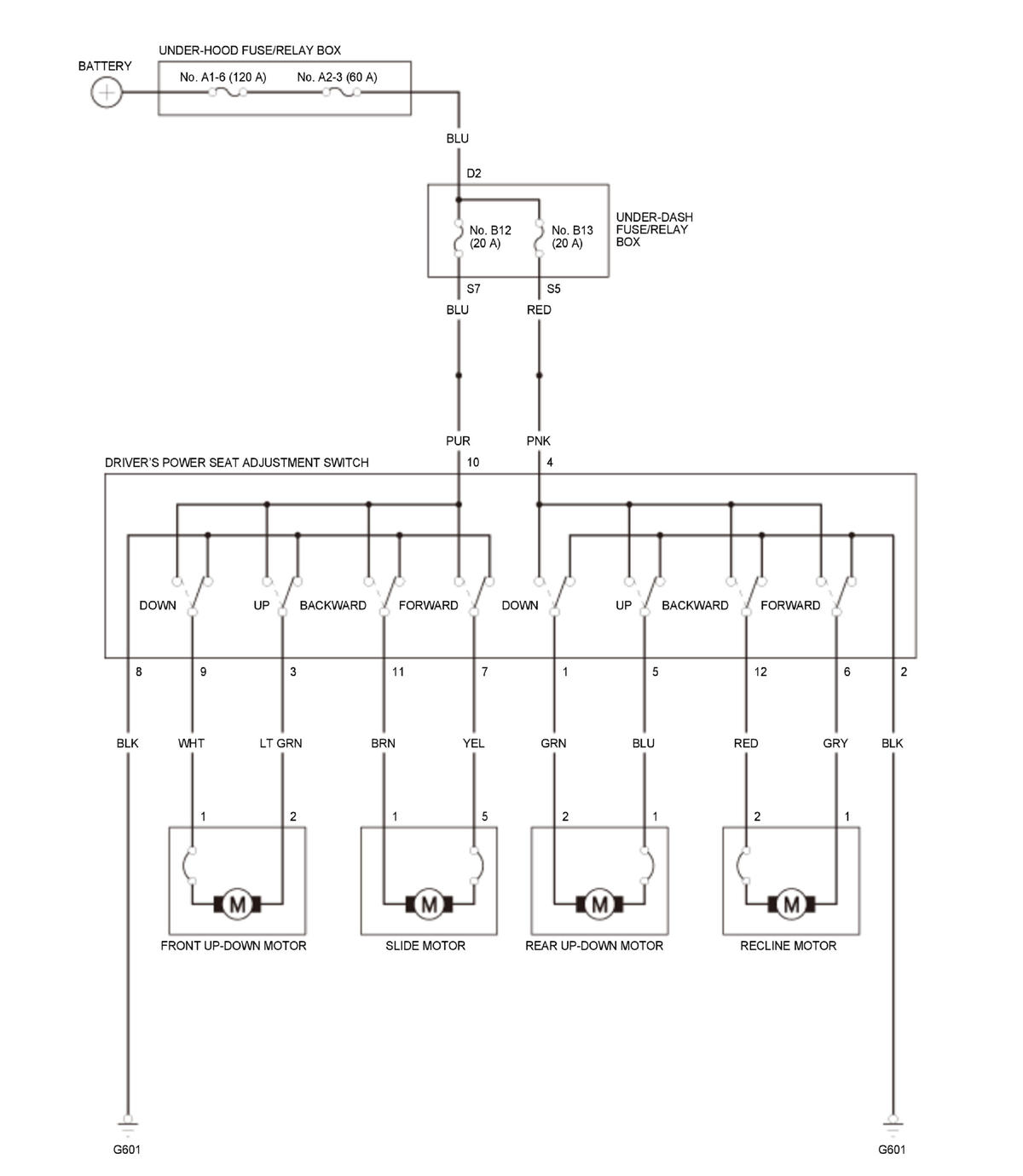

Driver's Seat without DPMS
Courtesy of HONDA, U.S.A., INC.

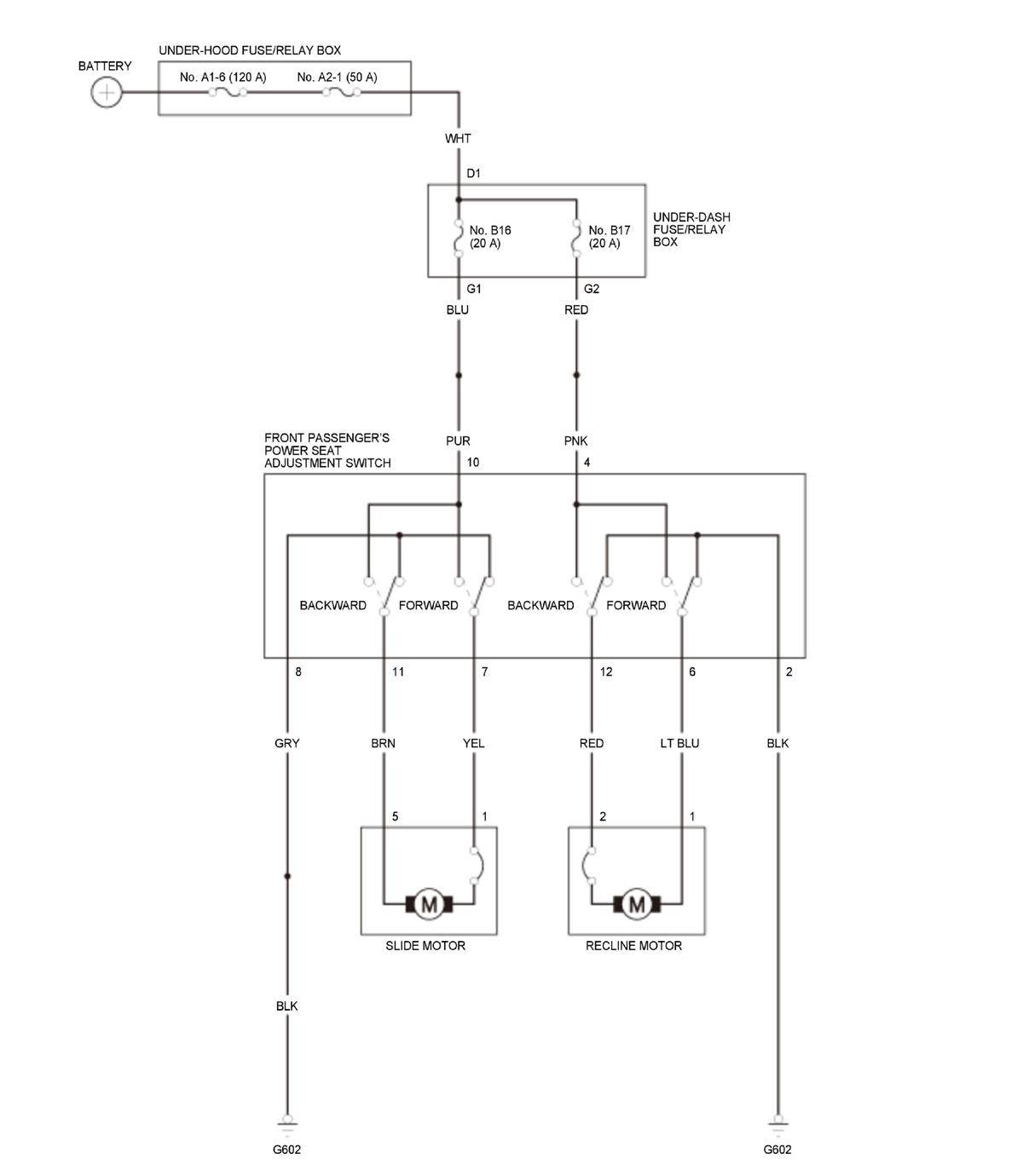

Front Passenger's Seat
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
