Audio-Navigation System DTC: 2707(KA, KC models) (2016 2017 2018 2019 2020 2021 2022)

DTC 2707  : Mic Diag

NOTE:

• Check the vehicle battery condition first .
• This navigation DTC sets when a problem is detected in the microphone circuit (the Mic icon is red in the System Links).
• Check any official Honda service website for more service information about the navigation system.
• Before you troubleshoot, make sure to follow the General Troubleshooting Information .
• Check the connectors for poor connections or loose terminals.

1. Problem verification

   -1. Clear the hard error codes .

   -2. Press the engine start/stop button to select the OFF mode.

   -3. Check for hard error codes .

   Is DTC 2707 indicated?

   YES

   The failure is duplicated, go to step 2.

   NO

   Intermittent failure, the system is OK at this time.

2. Telematics system DTC check

   -1. Go into the System Diagnostic Mode, and select the Mic/STRG SW in the Functional Setup menu to check for telematics system DTCs .

   Are there any DTCs indicated?

   YES

   Go to indicated telematics system DTC troubleshooting.

   NO

   Go to step 3.

3. Audio-navigation unit check

   -1. Do the Mic Level test in the Mic/STRG SW diagnosis .

   -2. Check the Mic level saying "testing" in front of the microphone.

   Is the microphone level OK?

   YES

   Replace the audio-navigation unit .

   NO

   Go to step 4.

4. Determine possible failure area (MIC PWR line, others)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connector.

   HFL-ANC/active sound control microphone 8P connector

   -3. Press the engine start/stop button to select the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   	HFL-ANC/active sound control microphone 8P connector: disconnected
   Test circuit	MIC PWR

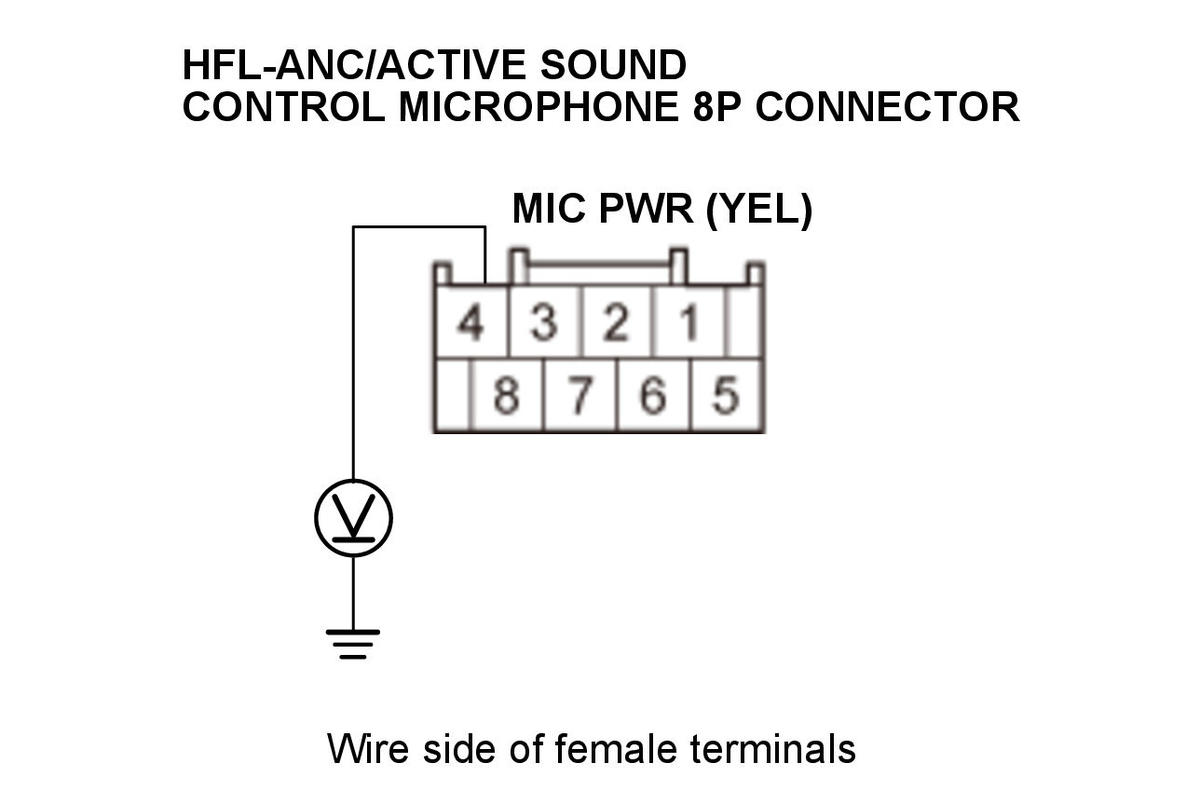

   Test point 1	HFL-ANC/active sound control microphone 8P connector No. 4 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 8.0 V?

   YES

   The MIC PWR wire is OK. Go to step 7.

   NO

   Go to step 5.

5. Open wire check (MIC PWR line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   	HFL-ANC/active sound control microphone 8P connector: disconnected
   Test circuit	MIC PWR

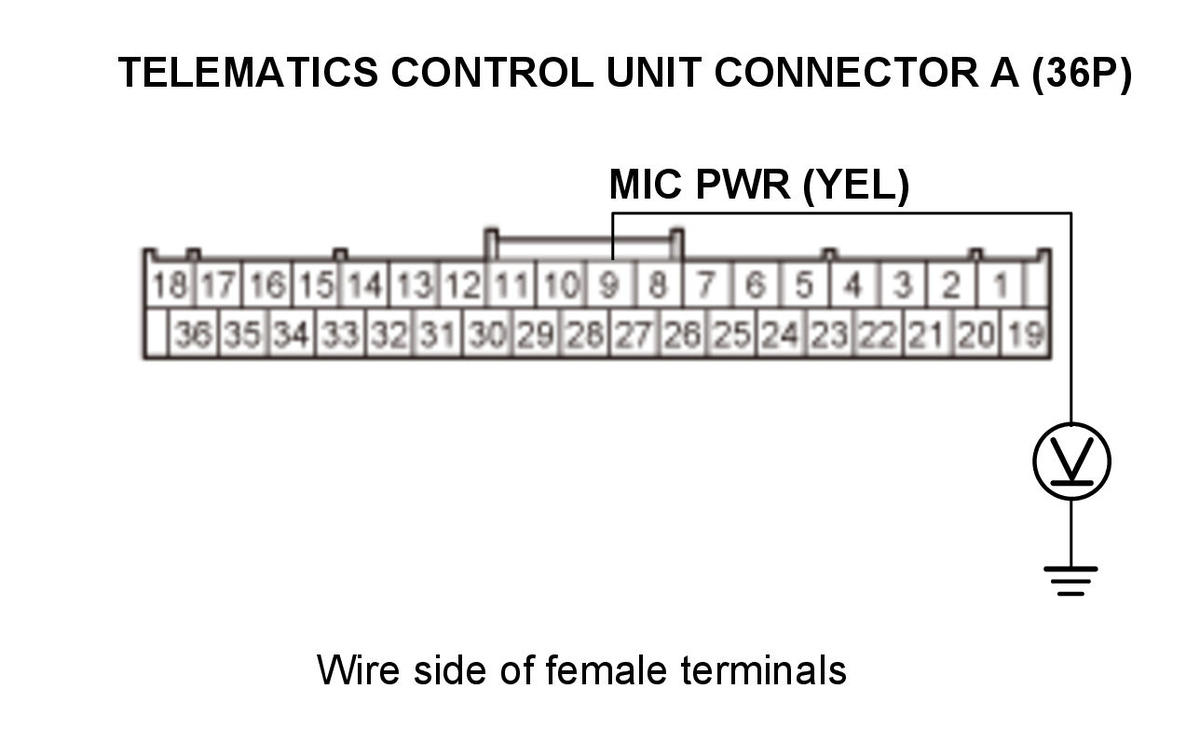

   Test point 1	Telematics control unit connector A (36P) No. 9 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 8.0 V?

   YES

   Repair an open in the wire between the HFL-ANC/active sound control microphone and the telematics control unit.

   NO

   The MIC PWR wire is not open. Go to step 6.

6. Shorted wire check (MIC PWR line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connector.

   Telematics control unit connector A (36P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	OFF mode
   	HFL-ANC/active sound control microphone 8P connector: disconnected
   	Telematics control unit connector A (36P): disconnected
   Test circuit	MIC PWR

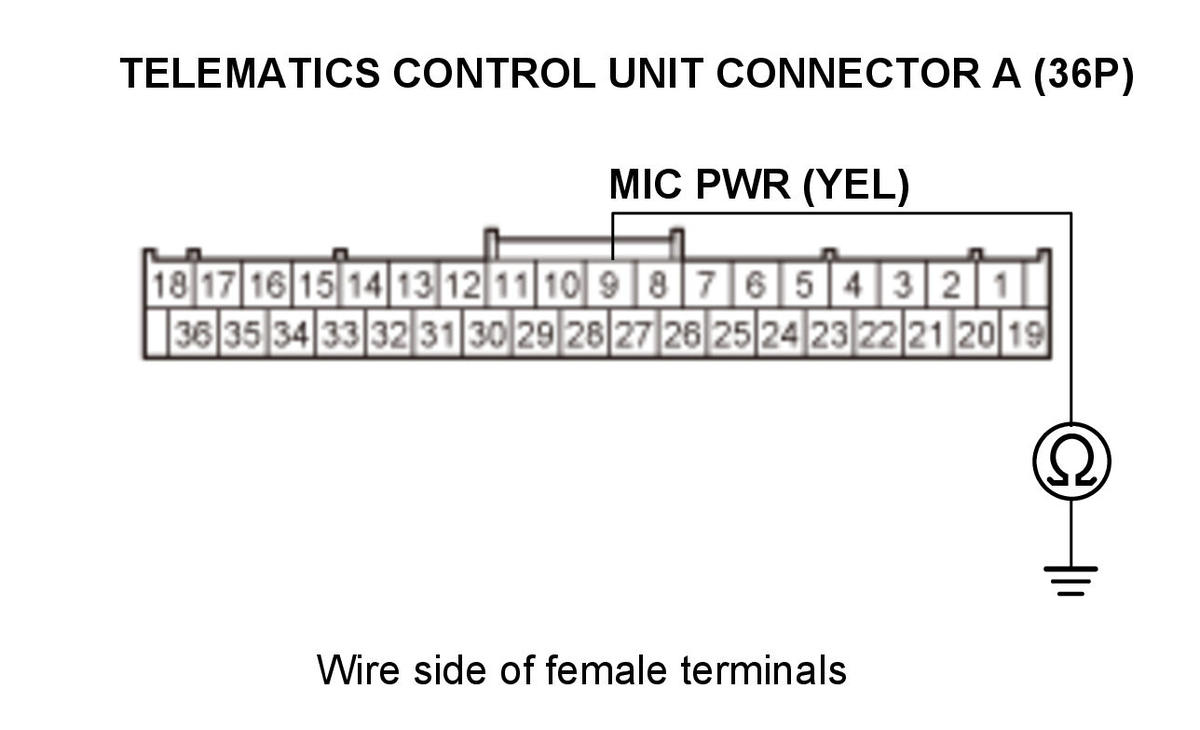

   Test point 1	Telematics control unit connector A (36P) No. 9 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to body ground in the wire between the HFL-ANC/active sound control microphone and the telematics control unit.

   NO

   Replace the telematics control unit .

7. Open wire check (HFT-NAVI MIC+ line, HFT-NAVI MIC- line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connectors.

   Telematics control unit connector A (36P)

   Audio-navigation unit connector F (18P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	OFF mode
   	Telematics control unit connector A (36P): disconnected
   	Audio-navigation unit connector F (18P): disconnected
   Test circuit	HFT-NAVI MIC+

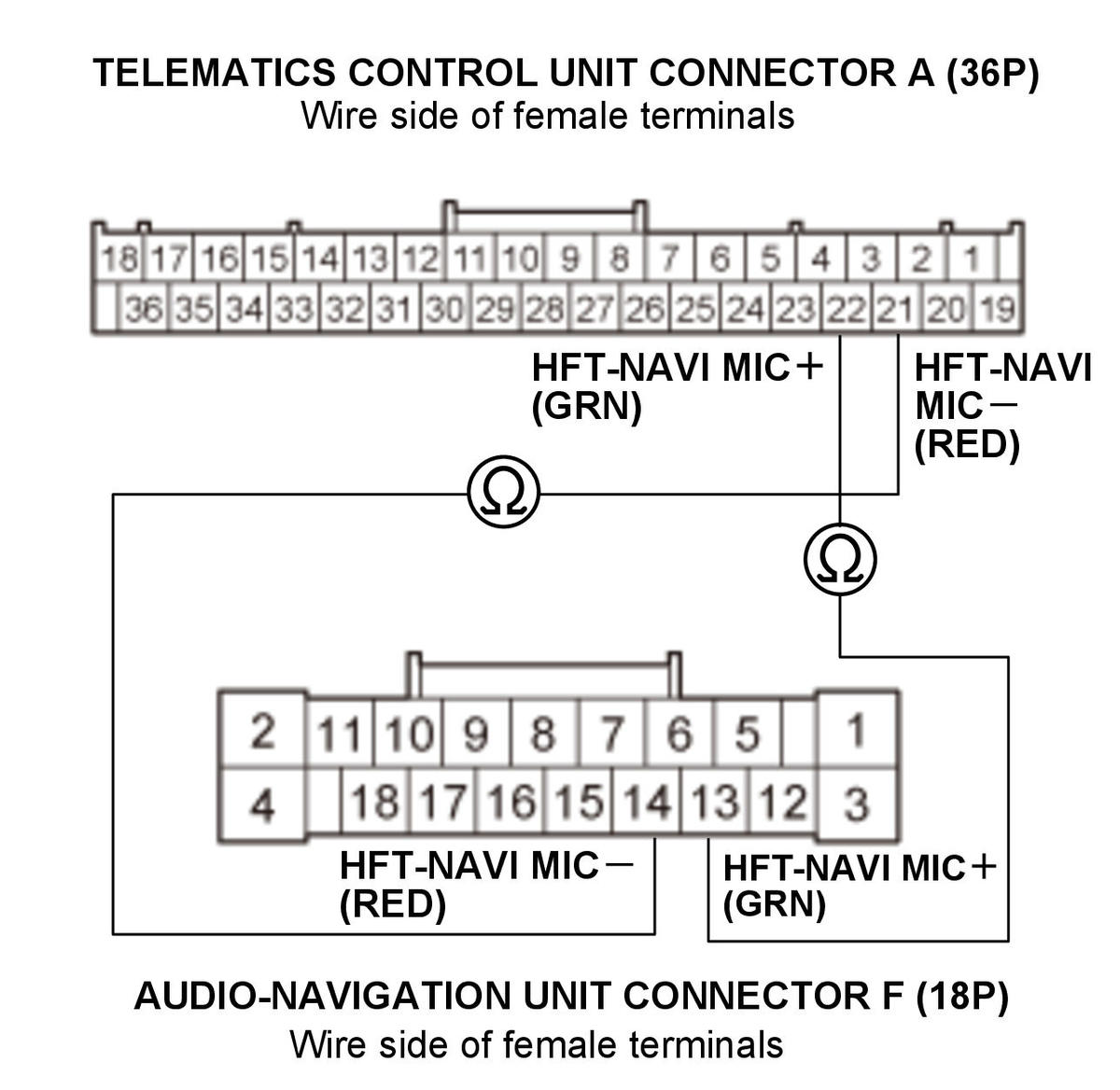

   Test point 1	Telematics control unit connector A (36P) No. 22 (GRN)
   Test point 2	Audio-navigation unit connector F (18P) No. 13 (GRN)

   Test circuit	HFT-NAVI MIC-
   Test point 1	Telematics control unit connector A (36P) No. 21 (RED)
   Test point 2	Audio-navigation unit connector F (18P) No. 14 (RED)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The HFT-NAVI MIC+ and the HFT-NAVI MIC-  wires are OK. Go to step 8.

   NO

   There is an open in the wire(s) between the telematics control unit and the audio-navigation unit. Replace the affected shielded harness.

8. Determine possible failure area (HFL-ANC/active sound control microphone, others)

   -1. Substitute a known-good HFL-ANC/active sound control microphone .

   -2. Reconnect all the connectors.

   -3. Clear the hard error codes .

   -4. Press the engine start/stop button to select the OFF mode.

   -5. Check for hard error codes .

   Is DTC 2707 indicated?

   YES

   Go to step 9.

   NO

   Replace the original HFL-ANC/active sound control microphone.

9. Audio-navigation unit check (substitution)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Substitute a known-good audio-navigation unit .

   -3. Clear the hard error codes .

   -4. Press the engine start/stop button to select the OFF mode.

   -5. Check for hard error codes .

   Is DTC 2707 indicated?

   YES

   Replace the telematics control unit .

   NO

   Replace the original audio-navigation unit.
