Start-Up Procedure and Diagnostic Menu

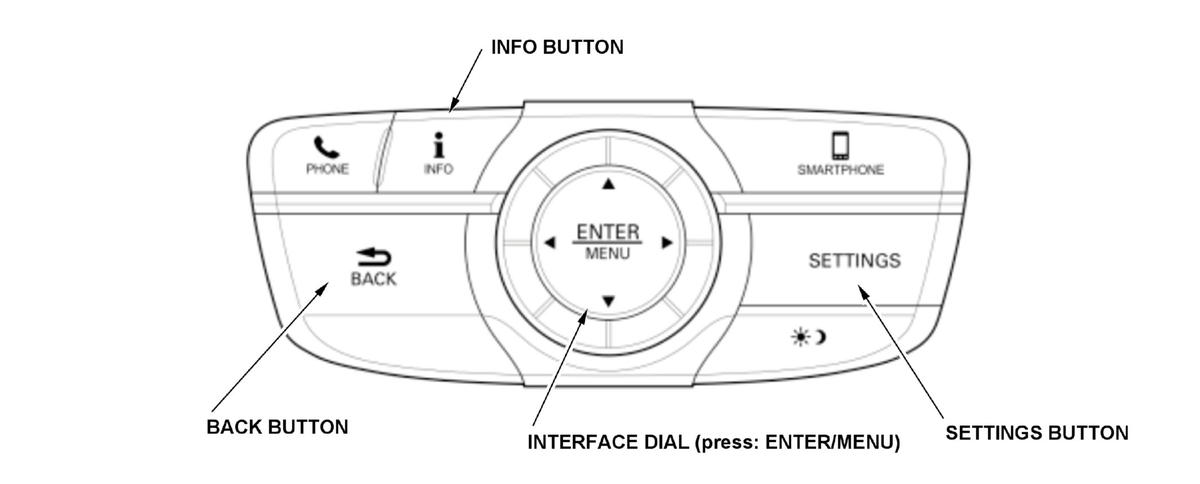

1. Start the engine.At any screen, use the center switch panel/interface dial buttons:Press and hold the INFO, SETTINGS, and BACK buttons at the same time for at least 3 seconds. The center display unit and the ODMD (TM) goes directly to the diagnosis items menu shown:

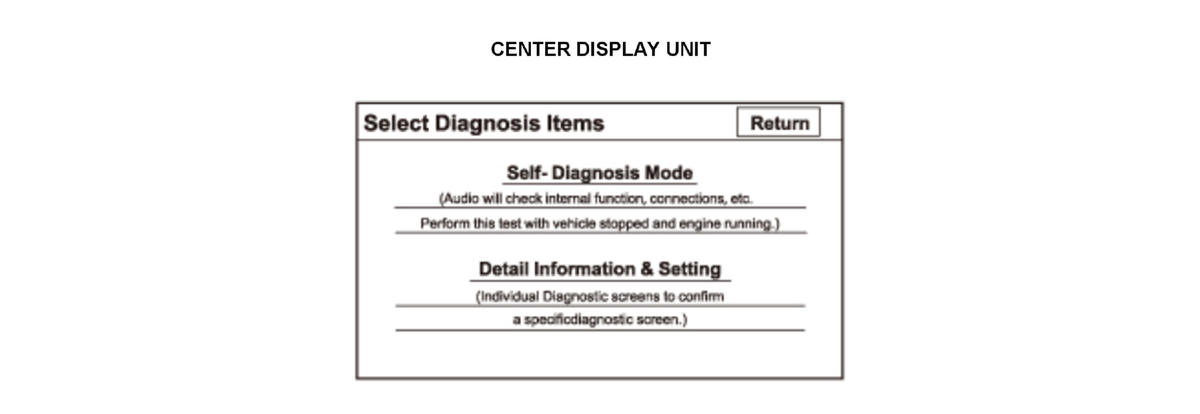

• Center display unit screen:
• • -

    Self-Diagnosis Mode (runs the automatic diagnosis of the audio system)

• • -

    Detail Information and Setting (Can help you to manually diagnose the audio system)

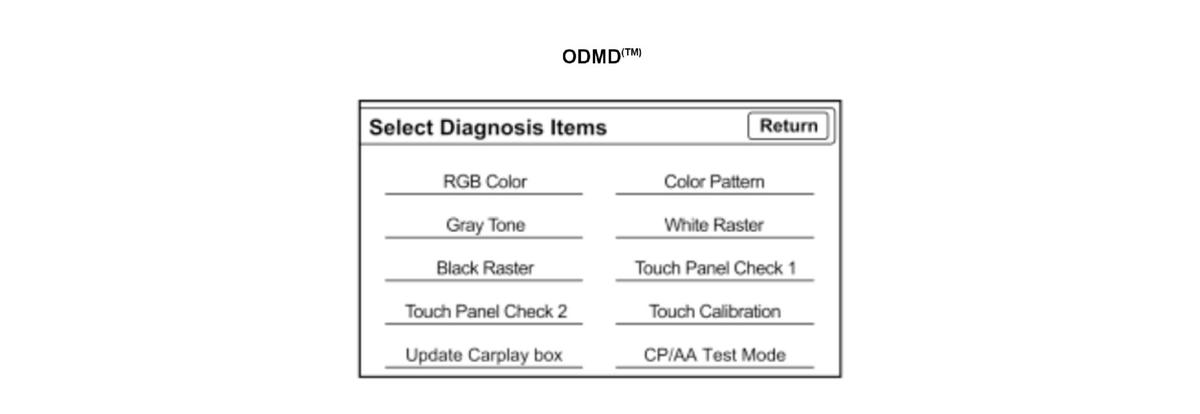

• ODMD (TM) (touch screen):
• • -

    Select Diagnosis Items (Monitor Check) (Can help you to manually diagnose the ODMD (TM))
