Start-Up Procedure and Diagnostic Menu

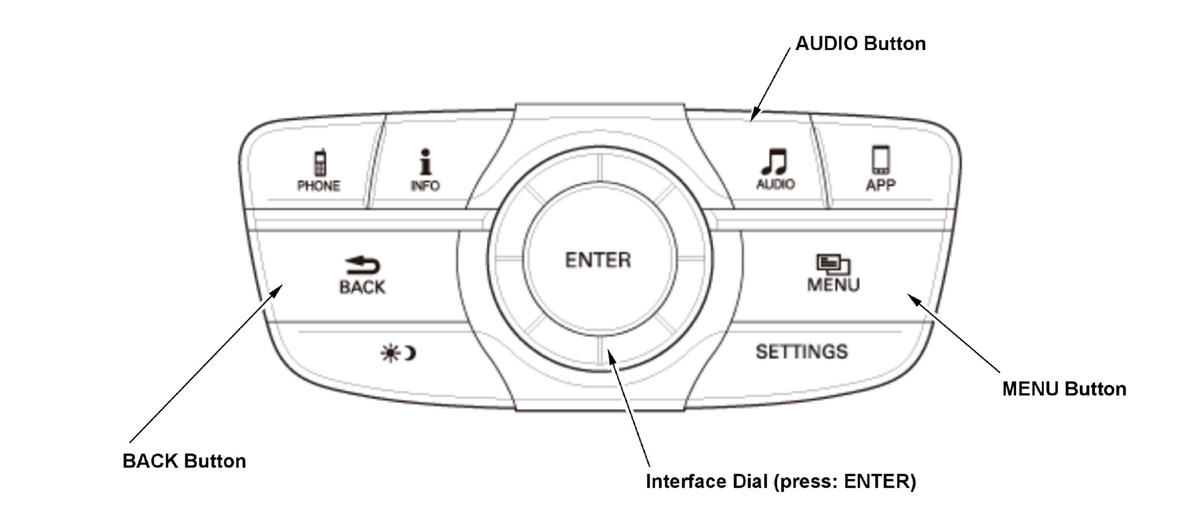

1. Start the engine.At any screen, use the center switch panel/interface dial buttons:Press and hold the MENU button, the AUDIO button, and the BACK button for about 3 seconds or more. The center display unit and the ODMD (TM) goes directly to the diagnosis items menu shown:

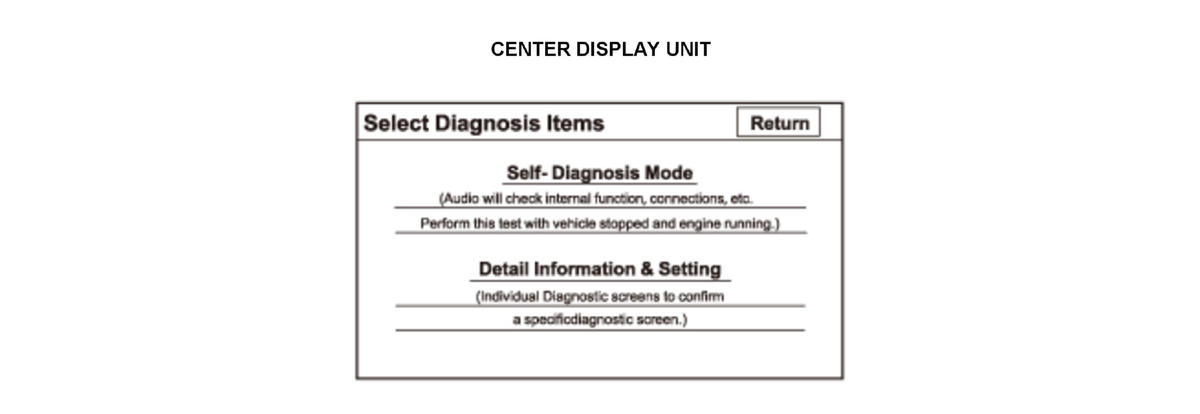

• Center display unit screen:
• • -

    Self-Diagnosis Mode (runs the automatic diagnosis of the audio system)

• • -

    Detail Information and Setting (Can help you to manually diagnose the audio system)

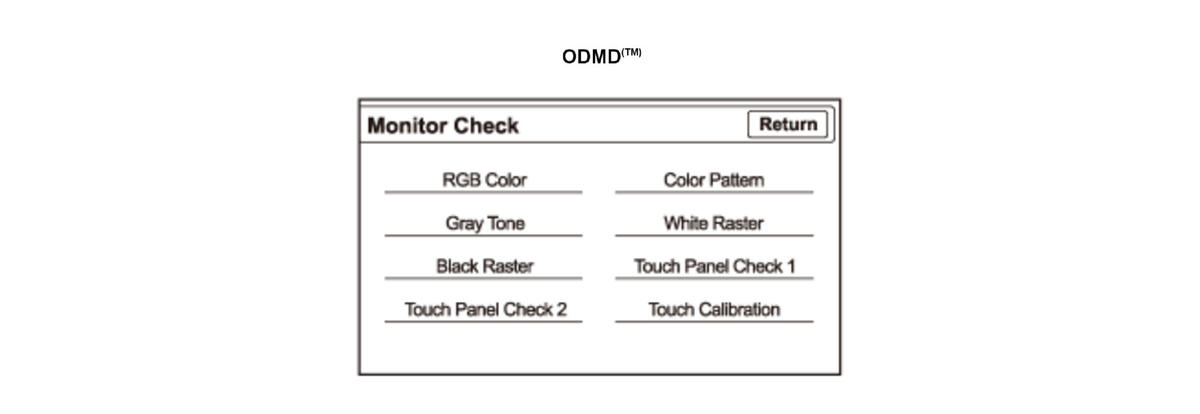

• ODMD (TM) screen:
• • -

    Monitor Check (Can help you to manually diagnose the ODMD (TM))
