Guideline Setup

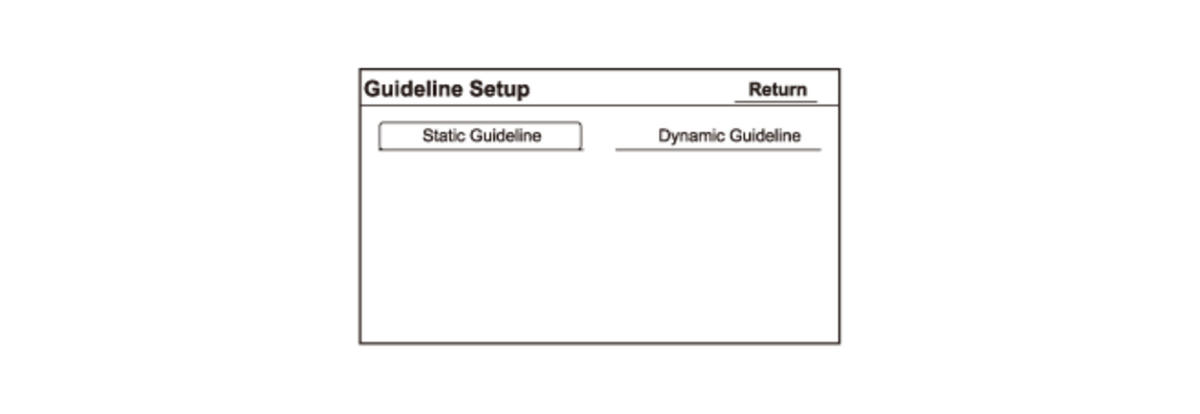

This screen allows you to adjust the static guideline or the dynamic guideline. Select the item you want to adjust.

NOTE:  Do not adjust the monitor position unless directed by a service bulletin.

Courtesy of HONDA, U.S.A., INC.

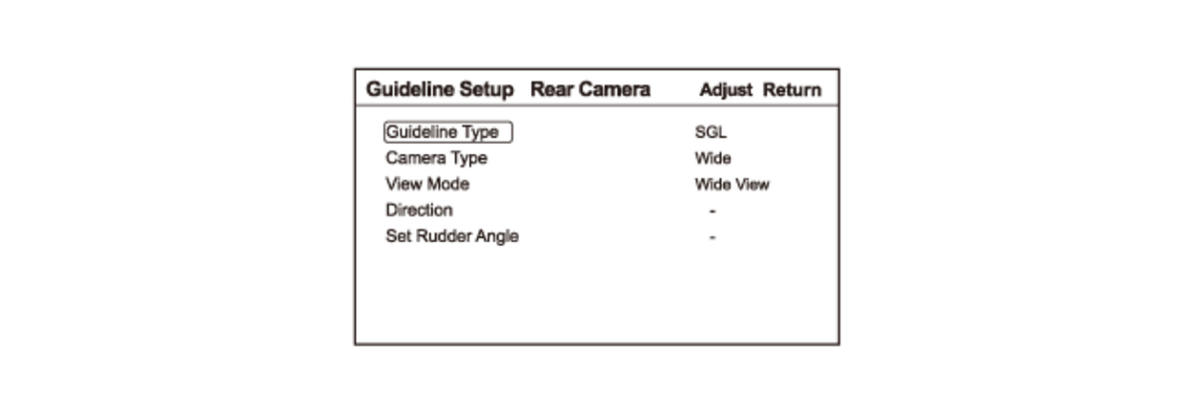

If you select the Static Guideline icon or the Dynamic Guideline icon, the rearview camera mode selection screen appears. Set the view mode and select the Adjust icon.

• Guideline Type
• • -

    SGL: Static Guideline

  • -

    DGL: Dynamic Guideline

• Camera Type
• • -

    Normal: Normal view camera

  • -

    Wide: Wide view camera

• View Mode
• • -

    Normal: Normal view mode

  • -

    Wide: Wide view mode

  • -

    Top: Top down view mode

• Direction (Dynamic Guideline only)
• • -

    L: Guidelines direction to left

  • -

    R: Guidelines direction to right

• Set Rudder Angle (Dynamic Guideline only): The guidelines of selected rudder angle is displayed.

Courtesy of HONDA, U.S.A., INC.

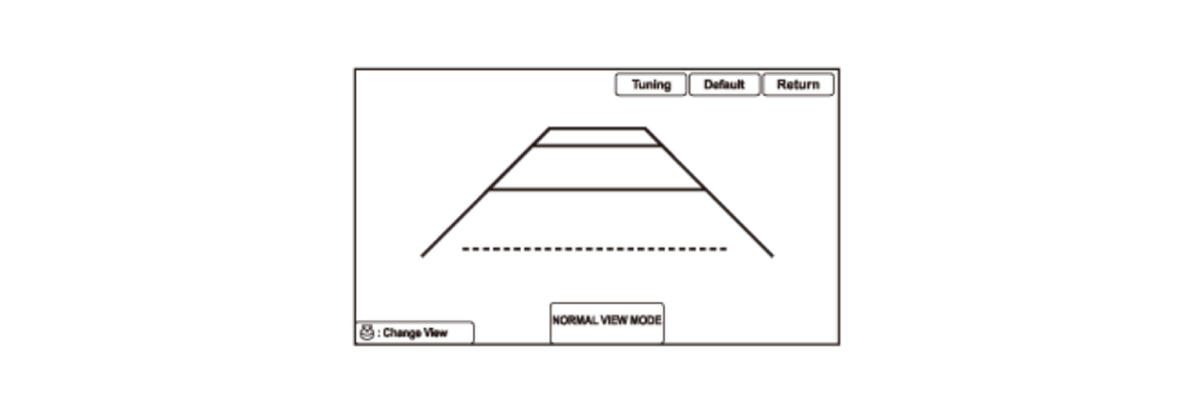

If you select the Adjust icon in the previous screen, the rearview camera guidelines adjustment screen appears. You cannot select the view mode using the interface dial on this screen.

• Default: All guide lines can be reset to the factory specification.
• Return: Returns to the Guide Line Setup main screen.
• Tuning: Adjusts the guide line on the adjustment screen.

Courtesy of HONDA, U.S.A., INC.

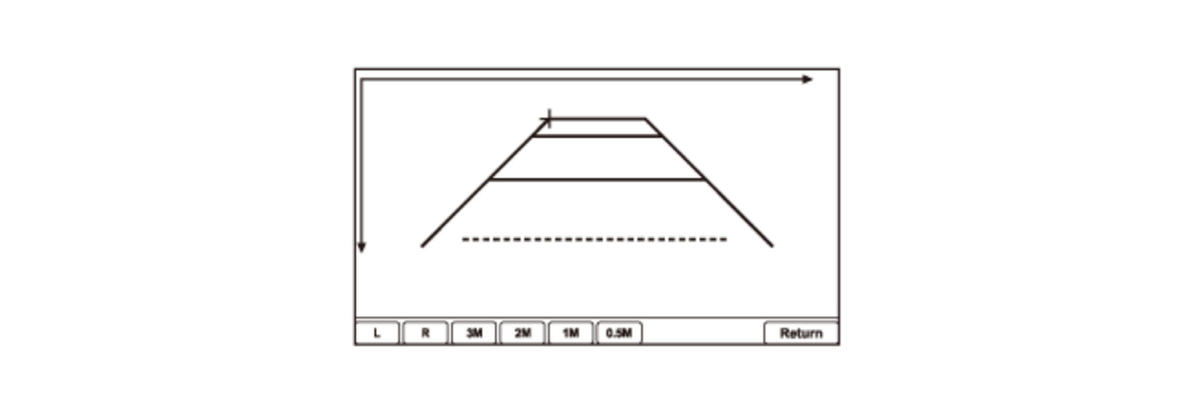

When select the Tuning icon, the guideline setup submenu appears. Select the guideline using the interface dial, then press ENTER.

Courtesy of HONDA, U.S.A., INC.

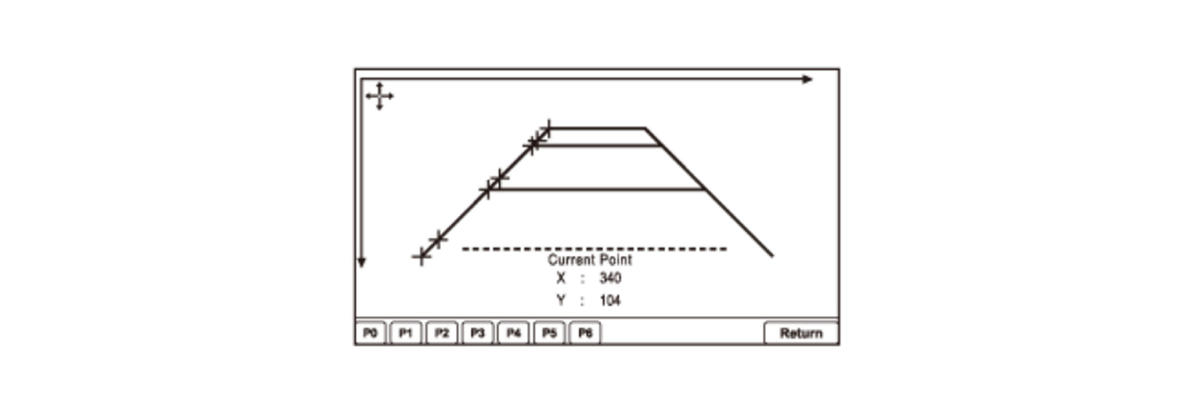

When the guideline adjust points appears, select the adjust point using the interface dial, then press ENTER.

Courtesy of HONDA, U.S.A., INC.

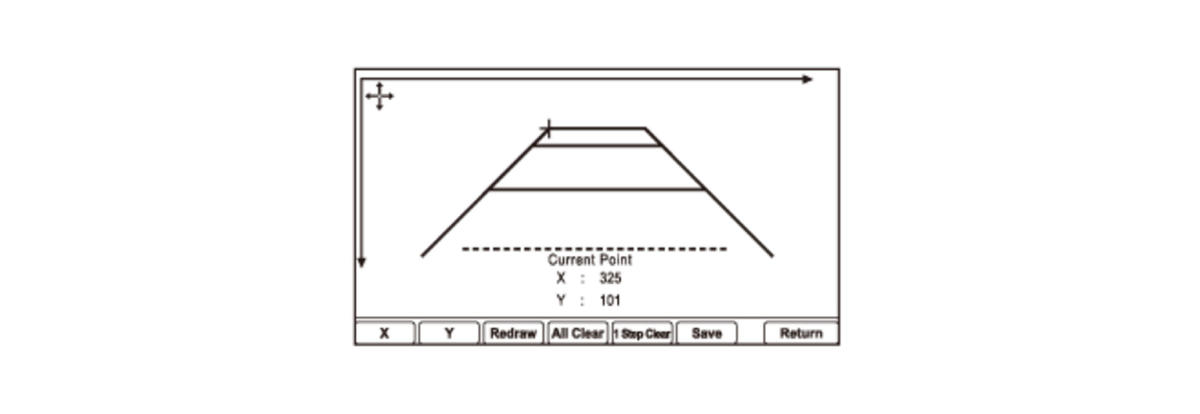

Select the direction (X or Y), and move the adjust points up/down or left/right, then select the Redraw icon and reflect the change of the guidelines. If you want to keep the setting, select the Save icon.

Courtesy of HONDA, U.S.A., INC.
