Shift Position Indicator Circuit Diagram (2014 2015)

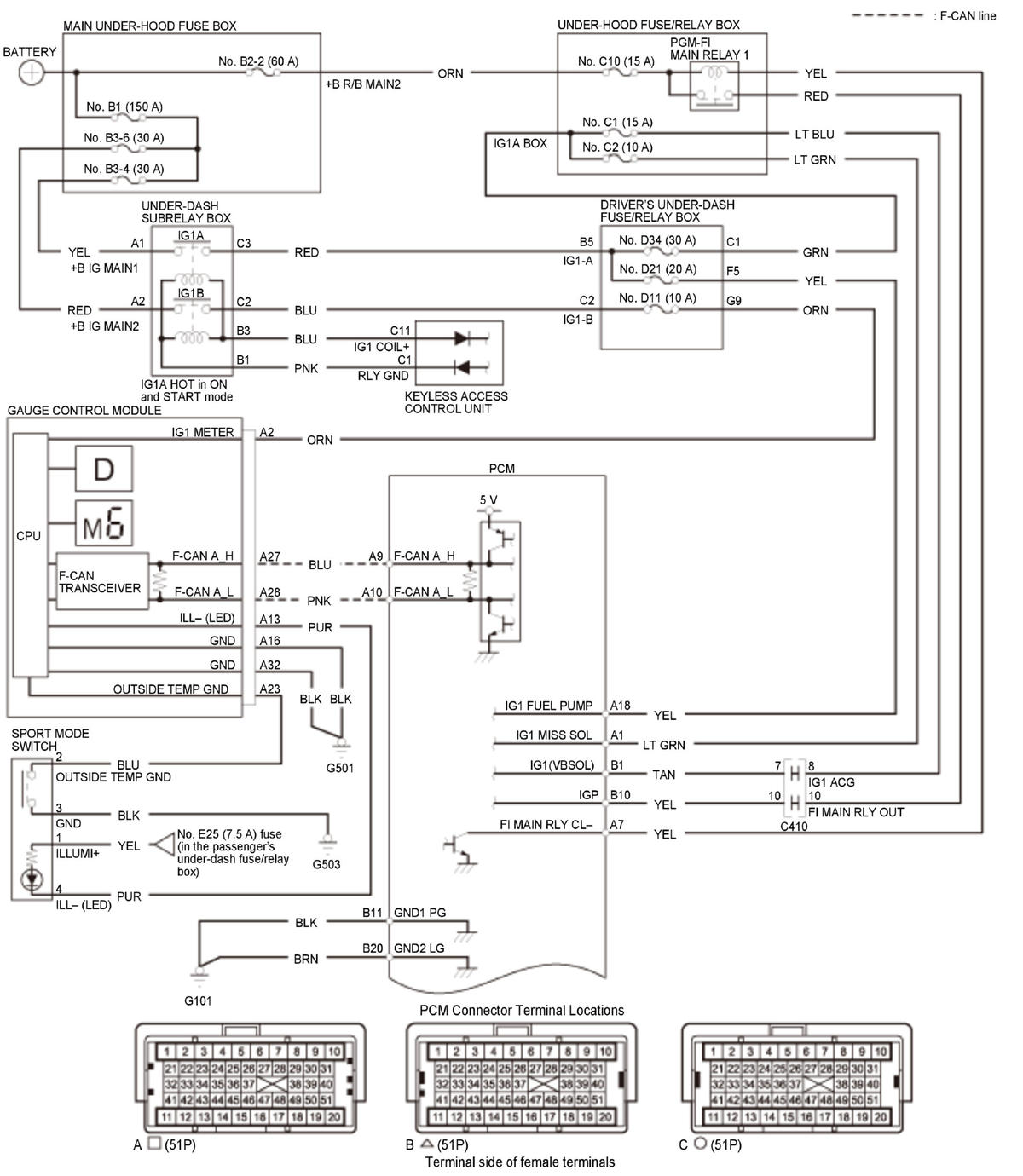

GHH347354

Courtesy of HONDA, U.S.A., INC.

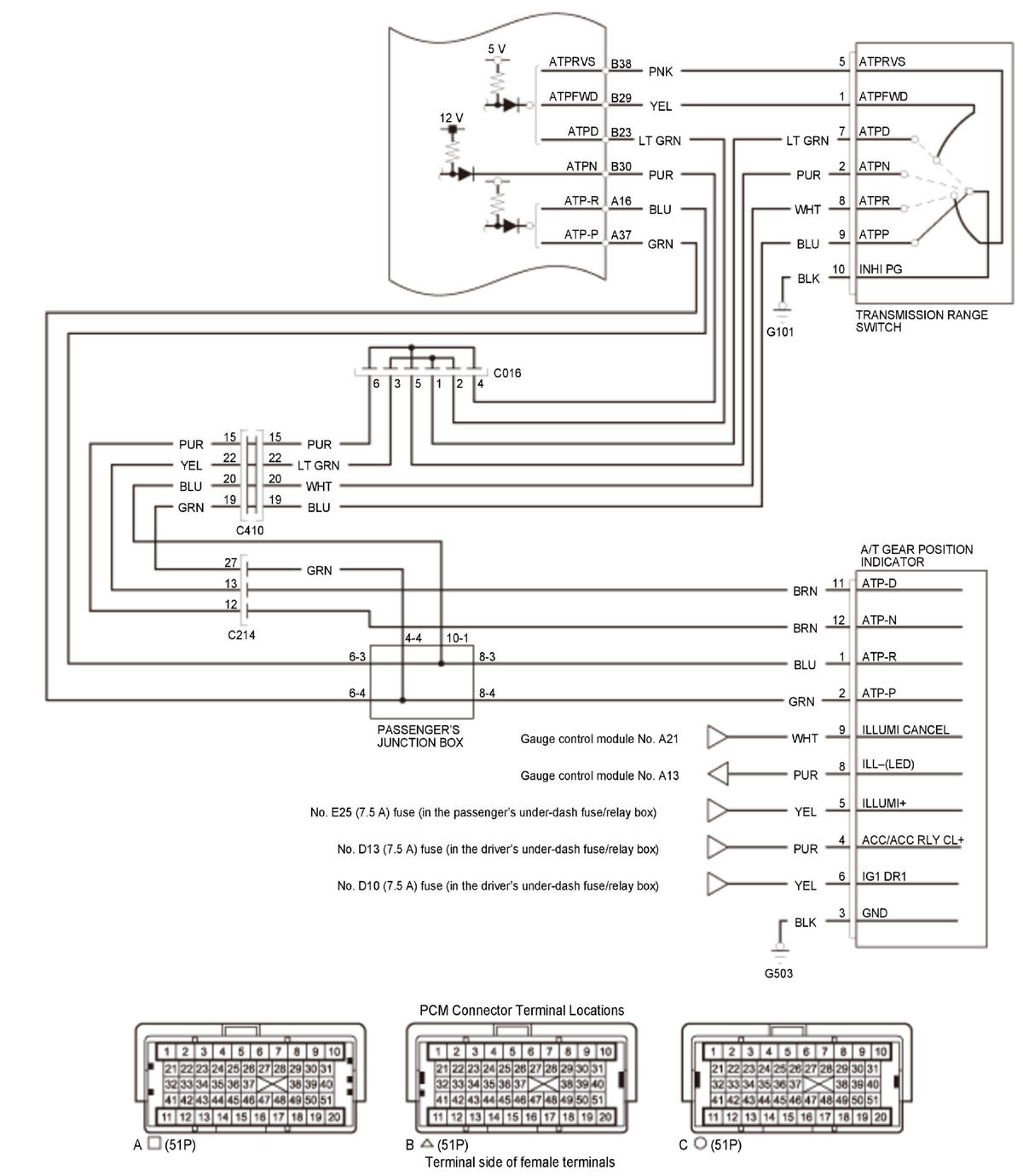

GHH347355

Courtesy of HONDA, U.S.A., INC.

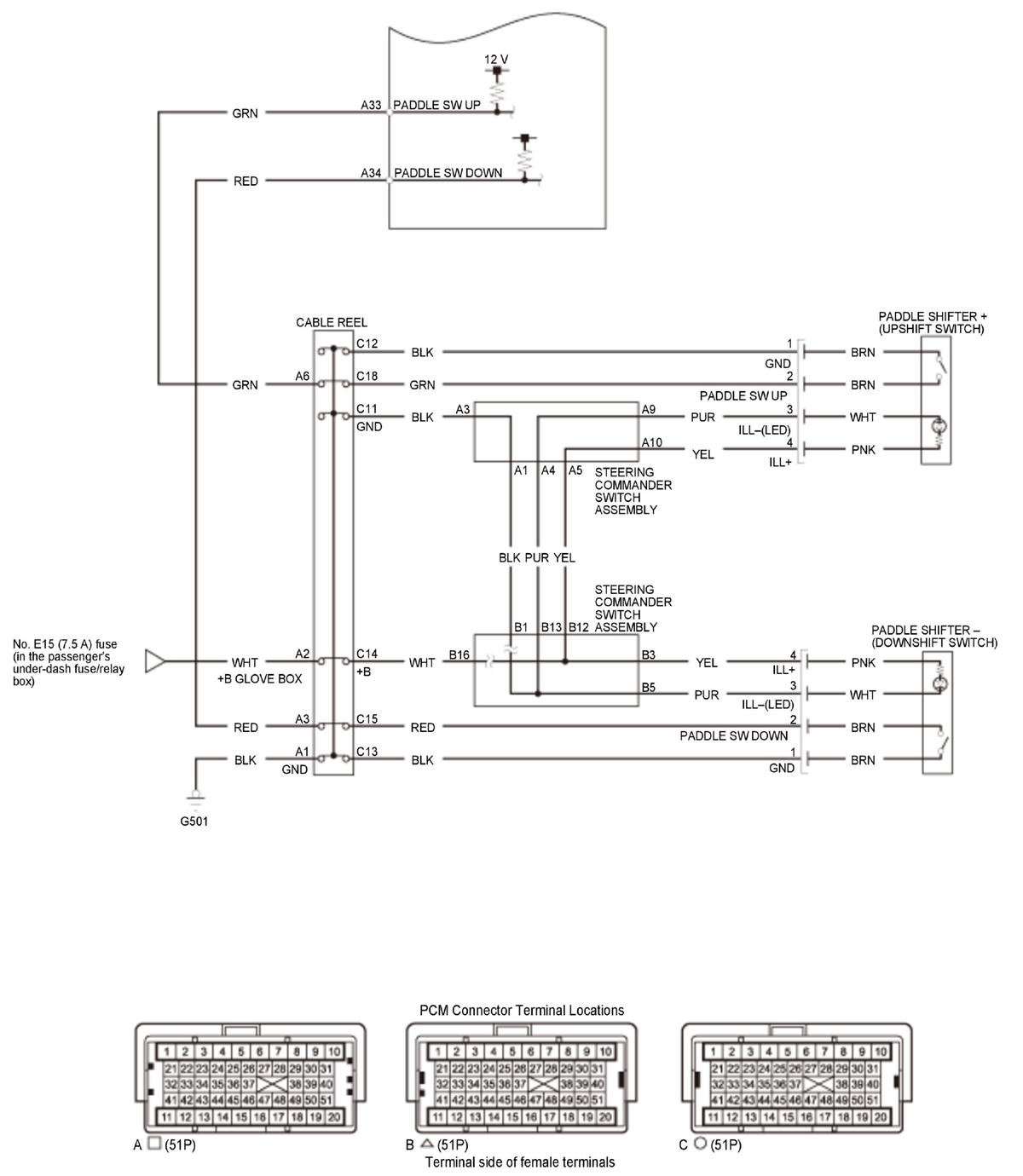

GHH347356

Courtesy of HONDA, U.S.A., INC.
