Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2014 2015 2016) and the precautions and procedures before doing repair or service.

1. Steering Wheel - Remove

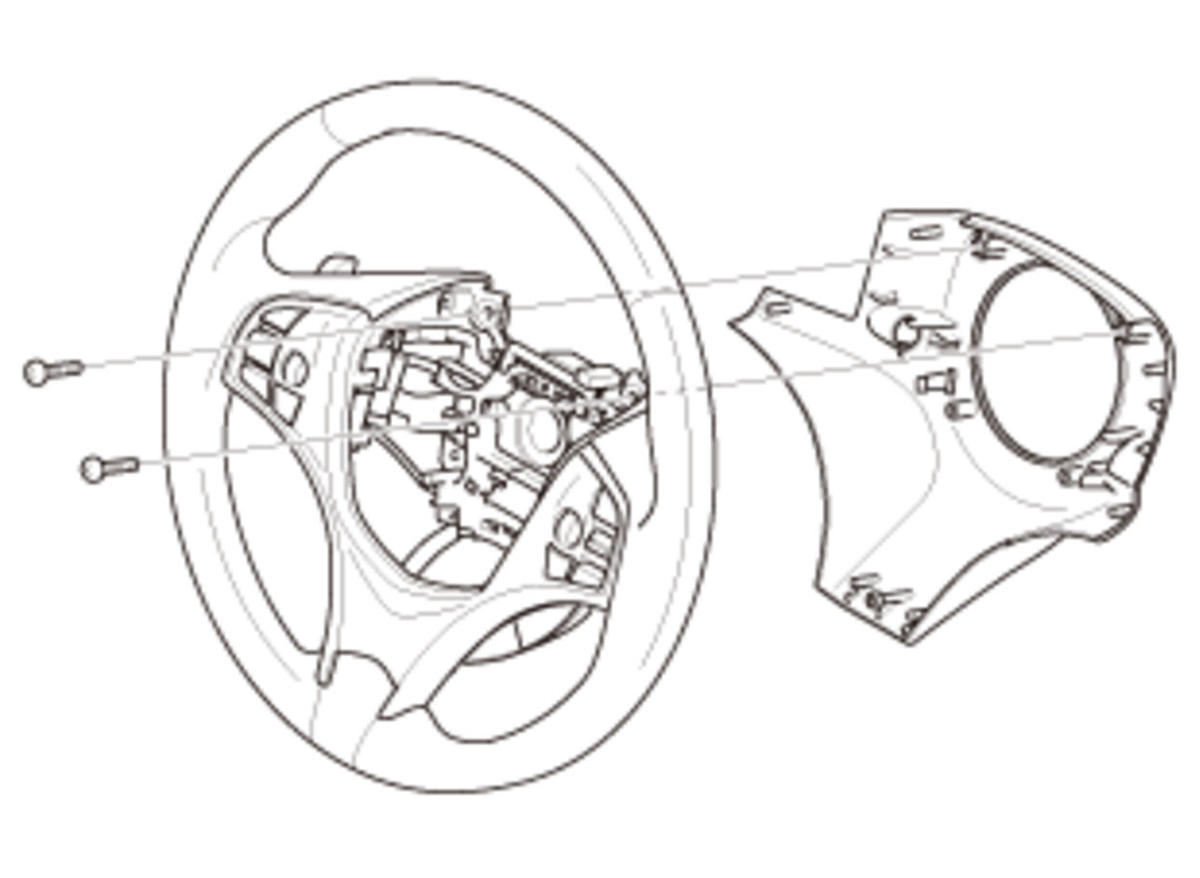

2. Steering Wheel Rear Cover - Remove

   Courtesy of HONDA, U.S.A., INC.

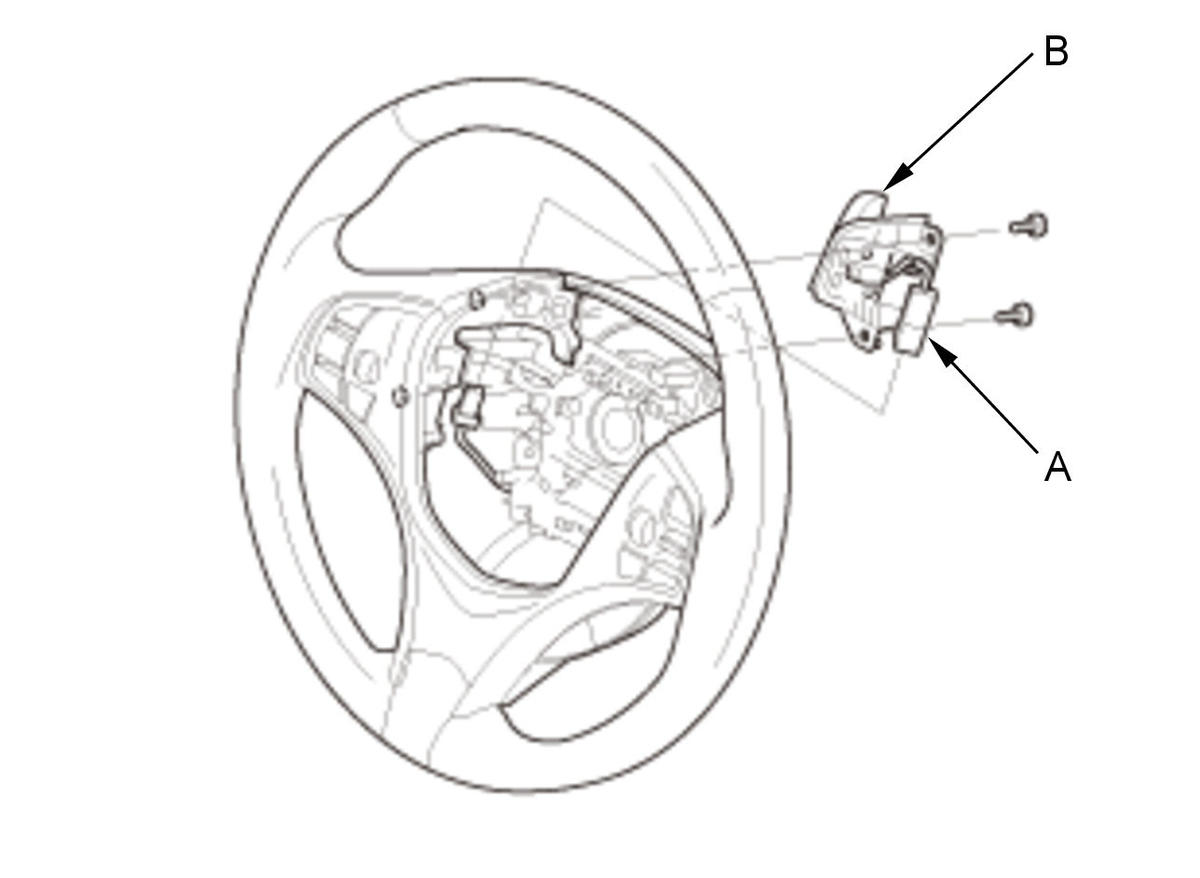

3. Paddle Shifter + (Upshift Switch) - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the paddle shifter + (upshift switch) connector (A). 2. Remove the paddle shifter + (upshift switch) (B).

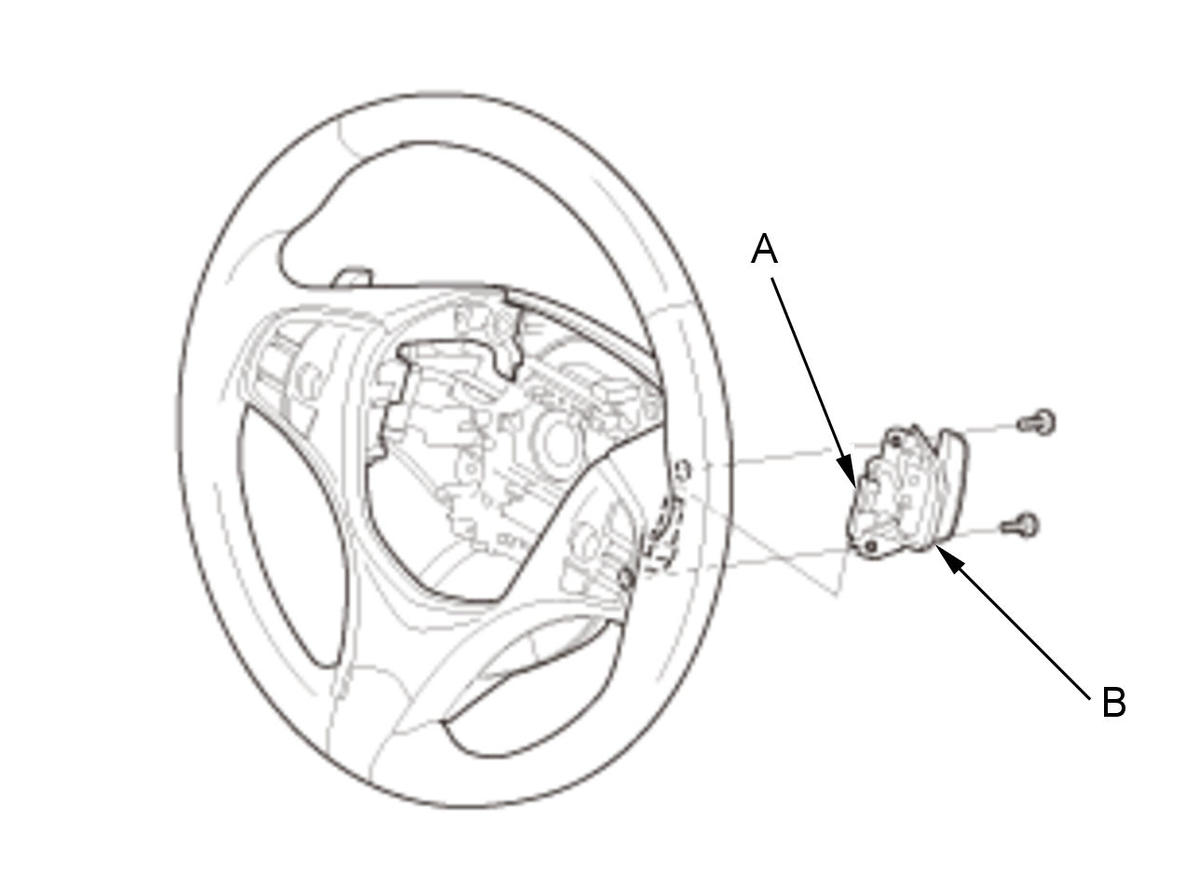

4. Paddle Shifter - (Downshift Switch) - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the paddle shifter - (downshift switch) connector (A). 2. Remove the paddle shifter - (downshift switch) (B).

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
