Entering the Self-Diagnostic Function (Manual Method)
Before doing the self-diagnostic function, make sure the No. A29 fuse , and the No. B5 fuse are OK.

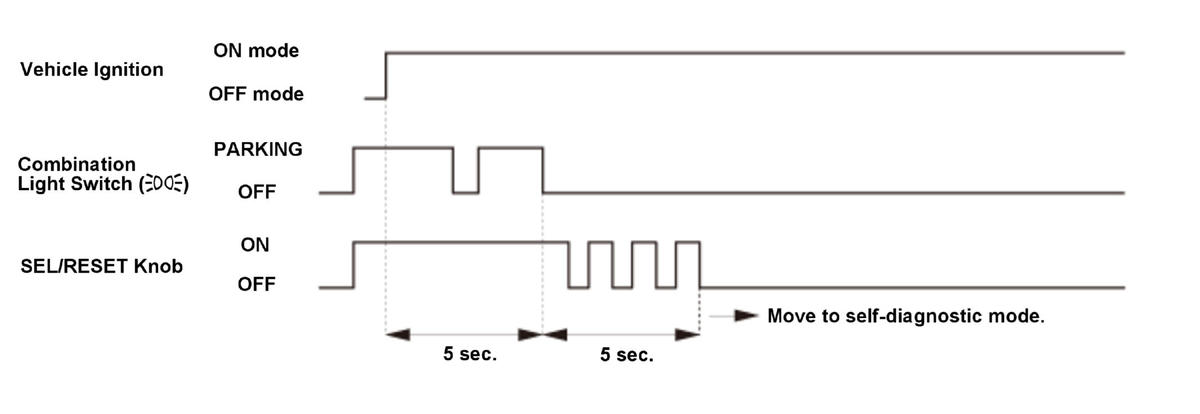

1. Push and hold the SEL/RESET knob.
2. Turn the combination light switch to the PARKING position (
).
3. Press the engine start/stop button to select the ON mode.
4. Within 5 sec., turn the combination light switch to OFF, then to the PARKING position (
) and OFF again.Within 5 sec., release the SEL/RESET knob, and then repeatedly push and release the button three times.
NOTE:
- While in the self-diagnostic mode, the dashlights brightness controller operates normally.
- While in the self-diagnostic mode, the SEL/RESET knob is used to start the Beeper Drive Circuit Test and the Gauge Drive Circuit Check.
- If the vehicle speed exceeds 1.2 mph (2 km/h), or press the engine start/stop button to select the OFF mode, the self-diagnostic mode ends.
