Gauges (2013 2014 2015)

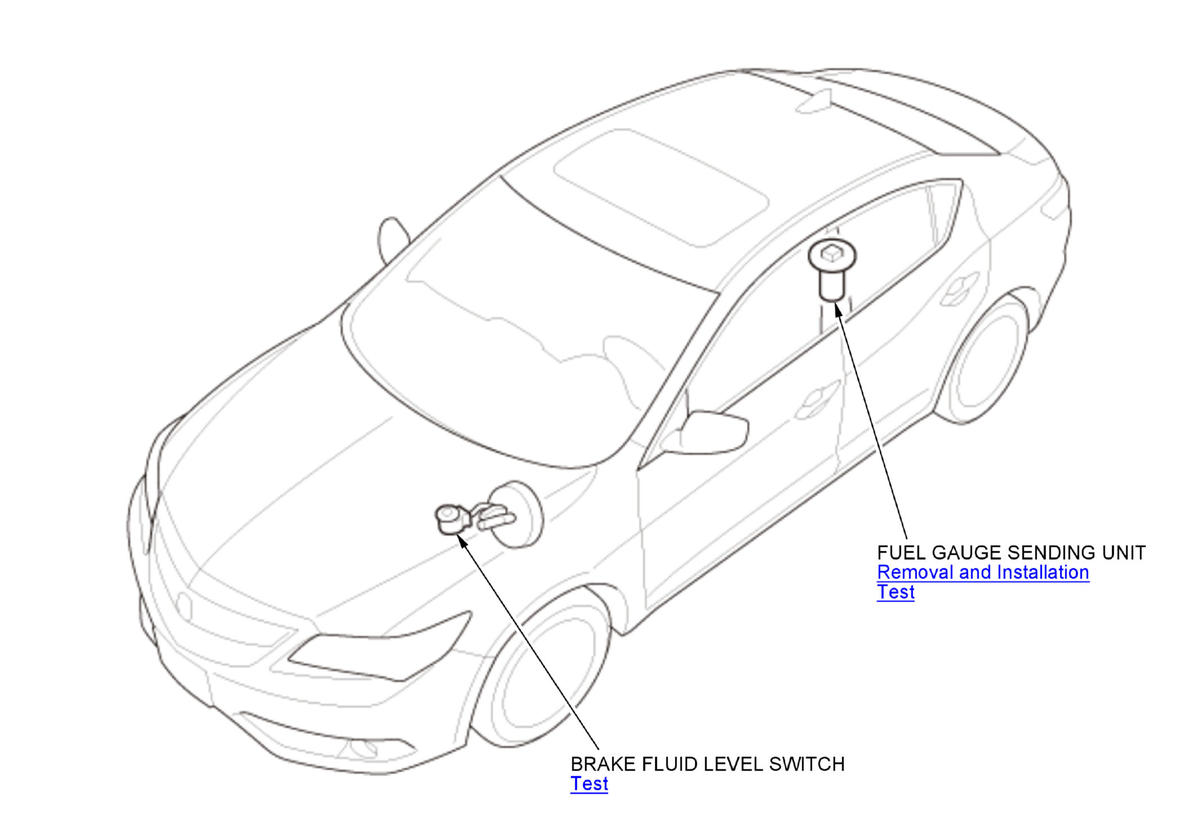

GHH470364Courtesy of HONDA, U.S.A., INC.

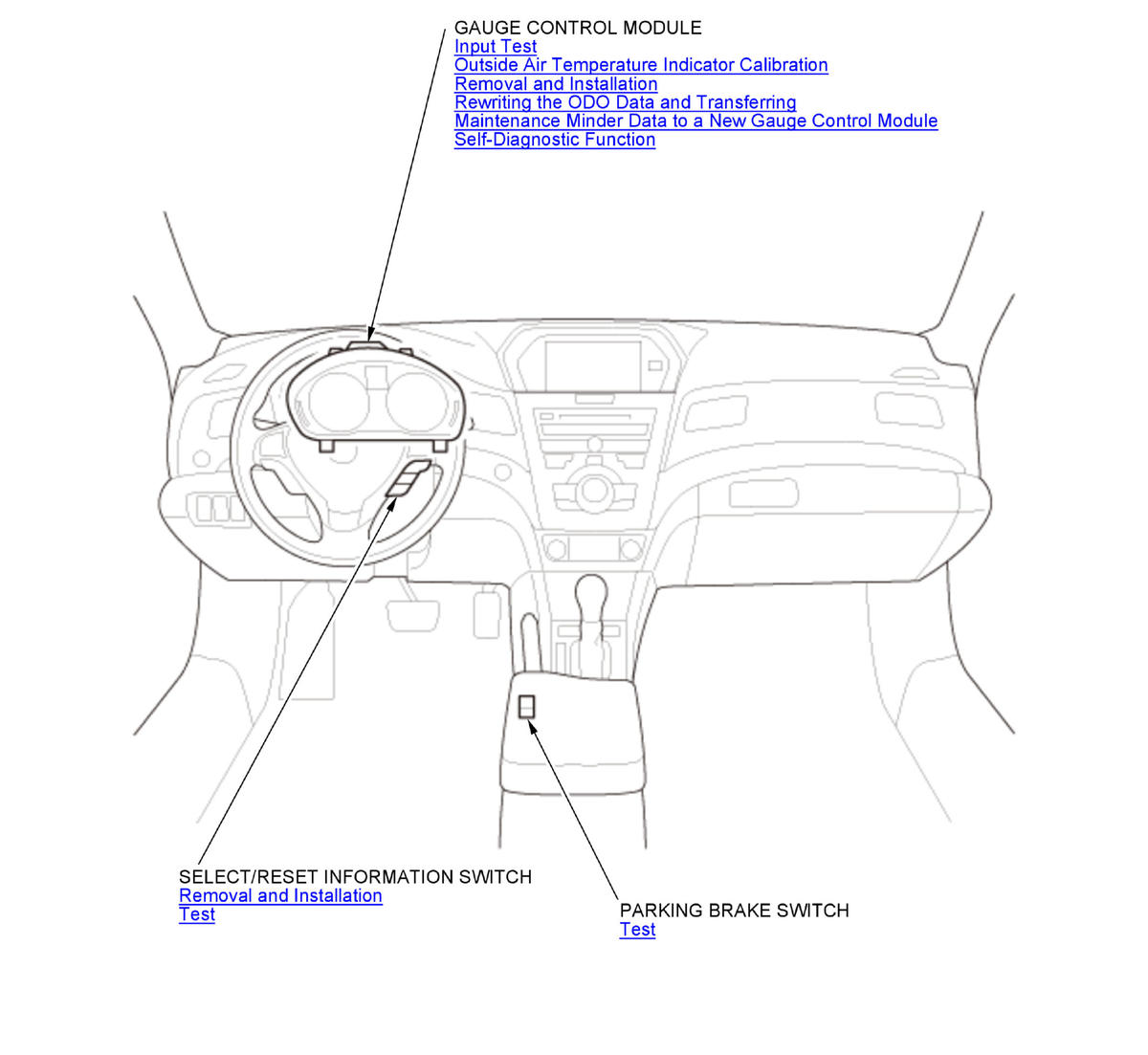

GHH470365Courtesy of HONDA, U.S.A., INC.

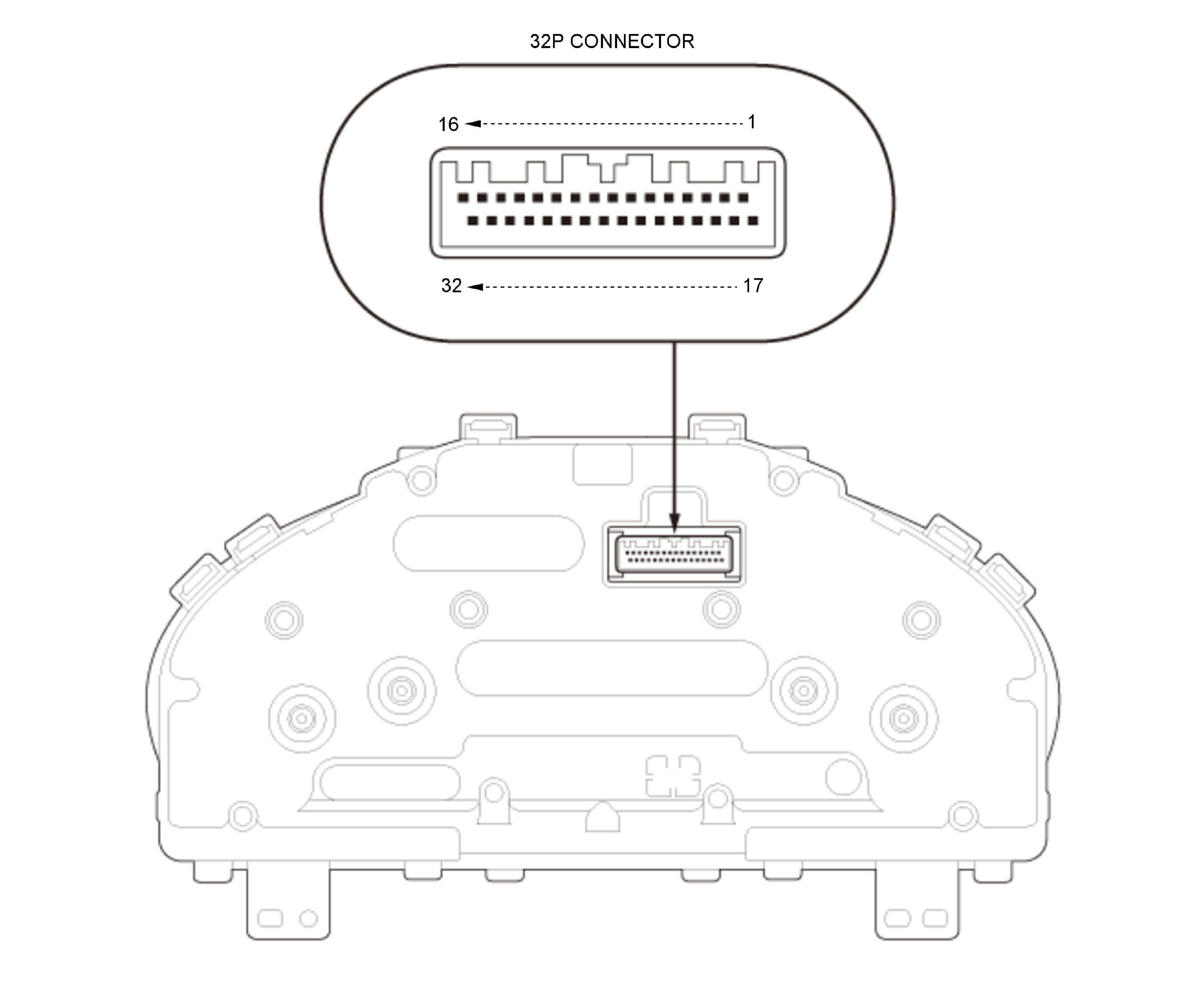

GHH470366Courtesy of HONDA, U.S.A., INC.

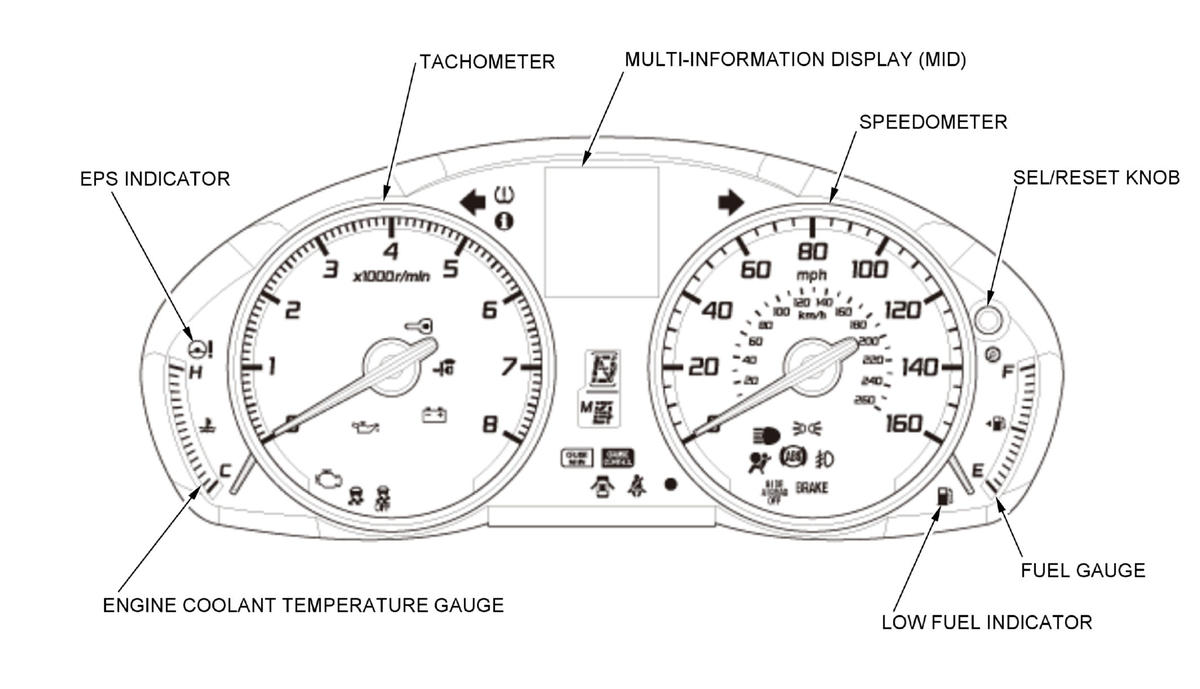

GHH470367Courtesy of HONDA, U.S.A., INC.

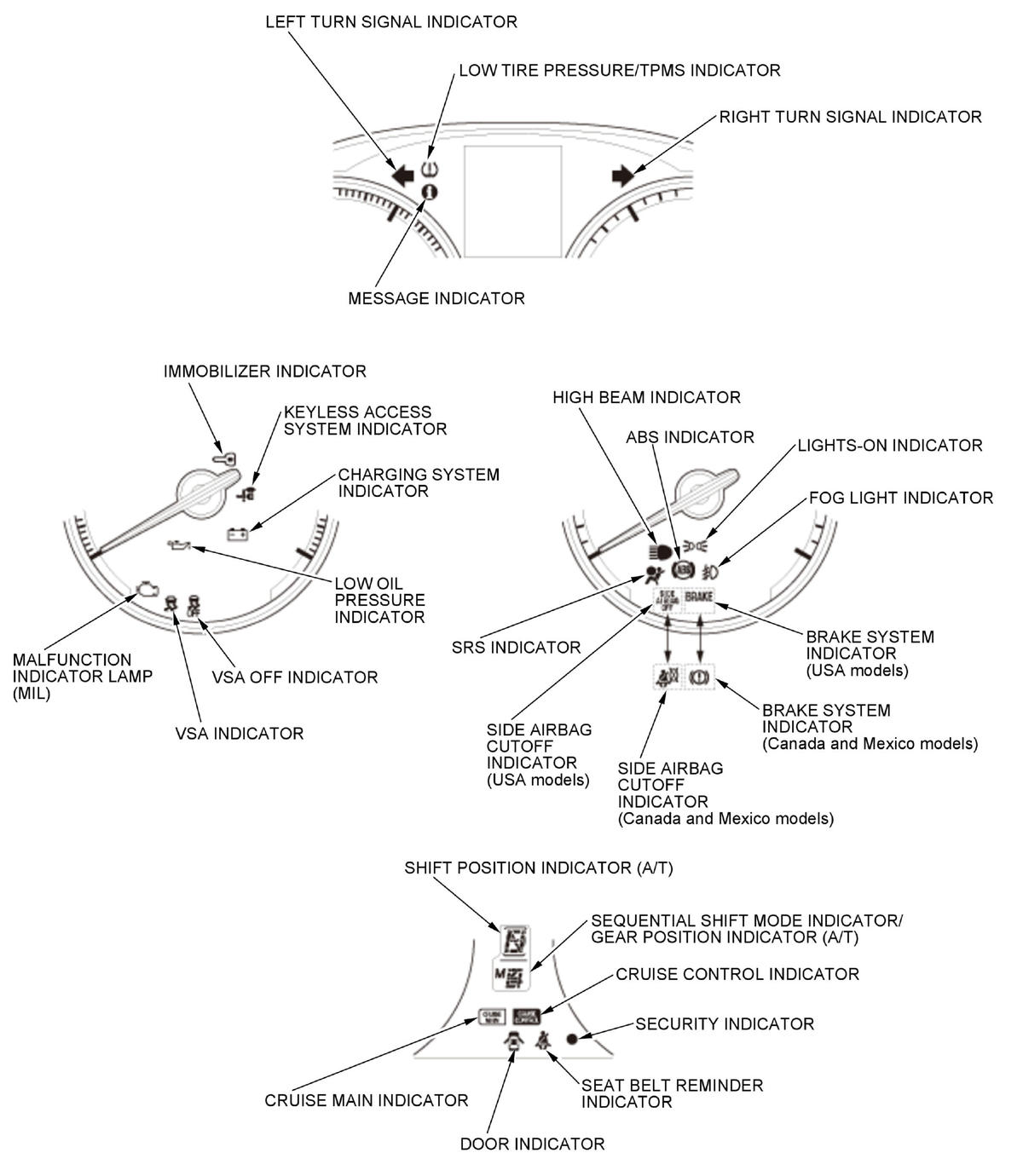

GHH470368Courtesy of HONDA, U.S.A., INC.
