Reminder Systems (2019 2020 2021 2022)

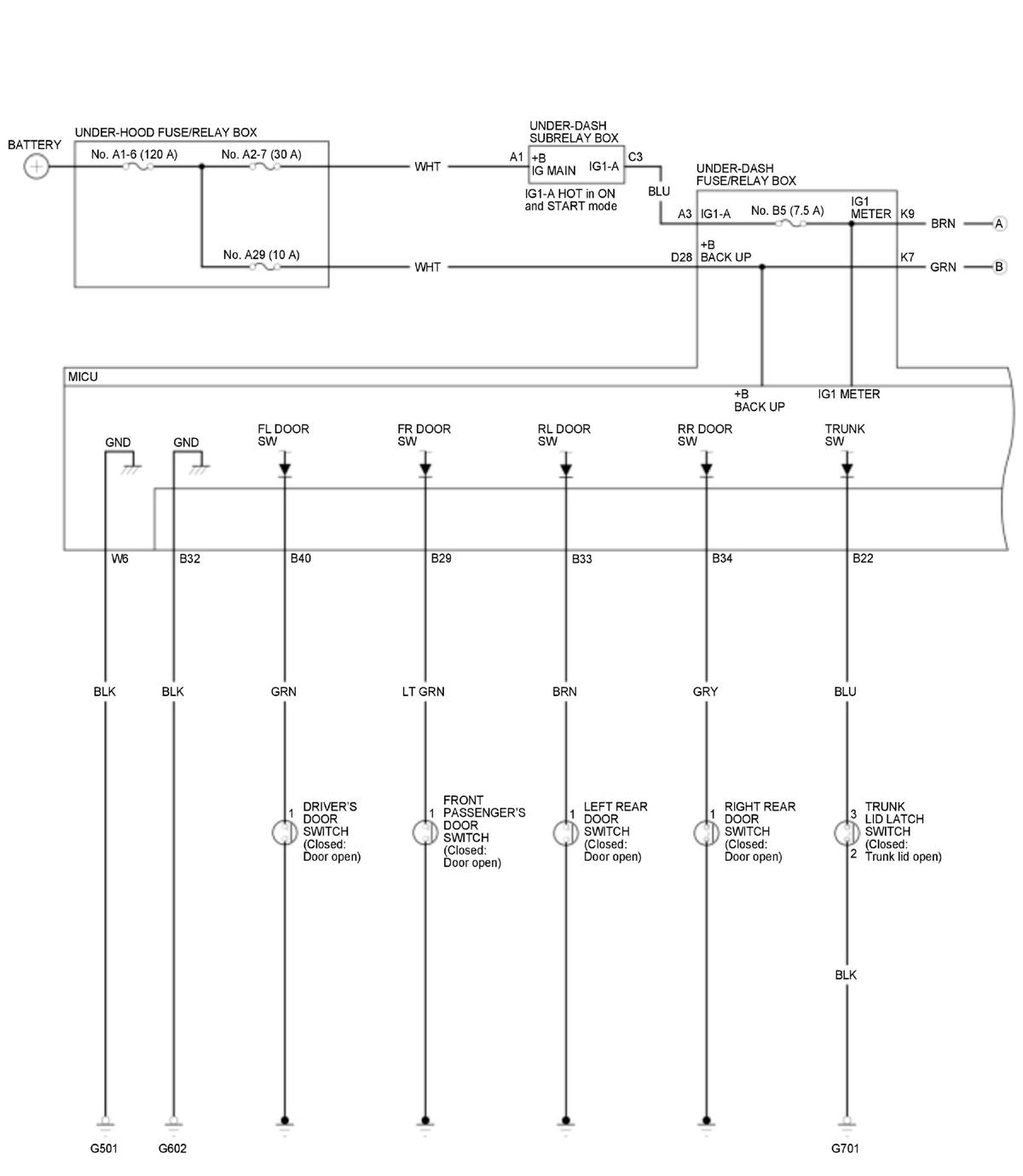

GHH470306

Courtesy of HONDA, U.S.A., INC.

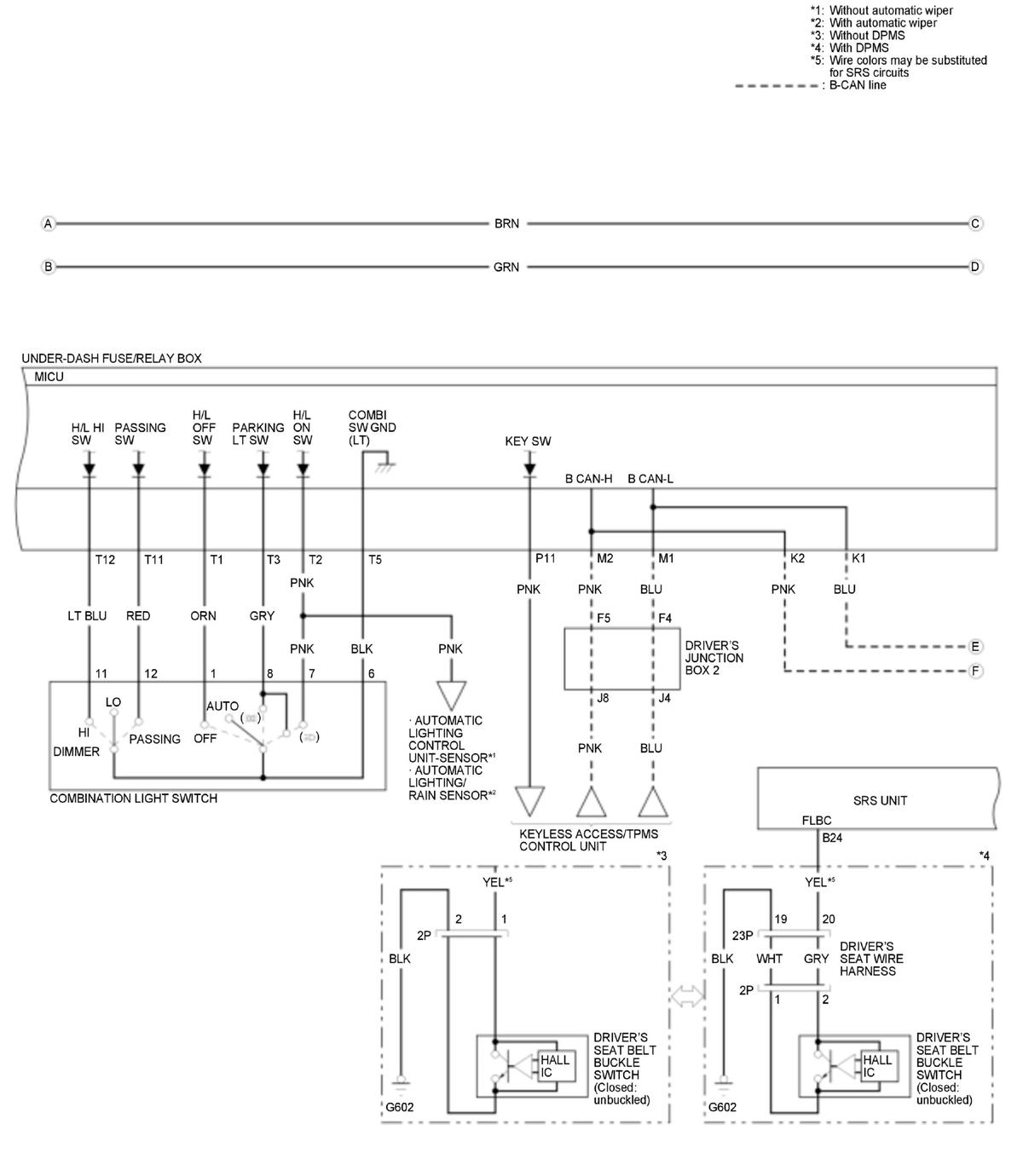

GHH470307

Courtesy of HONDA, U.S.A., INC.

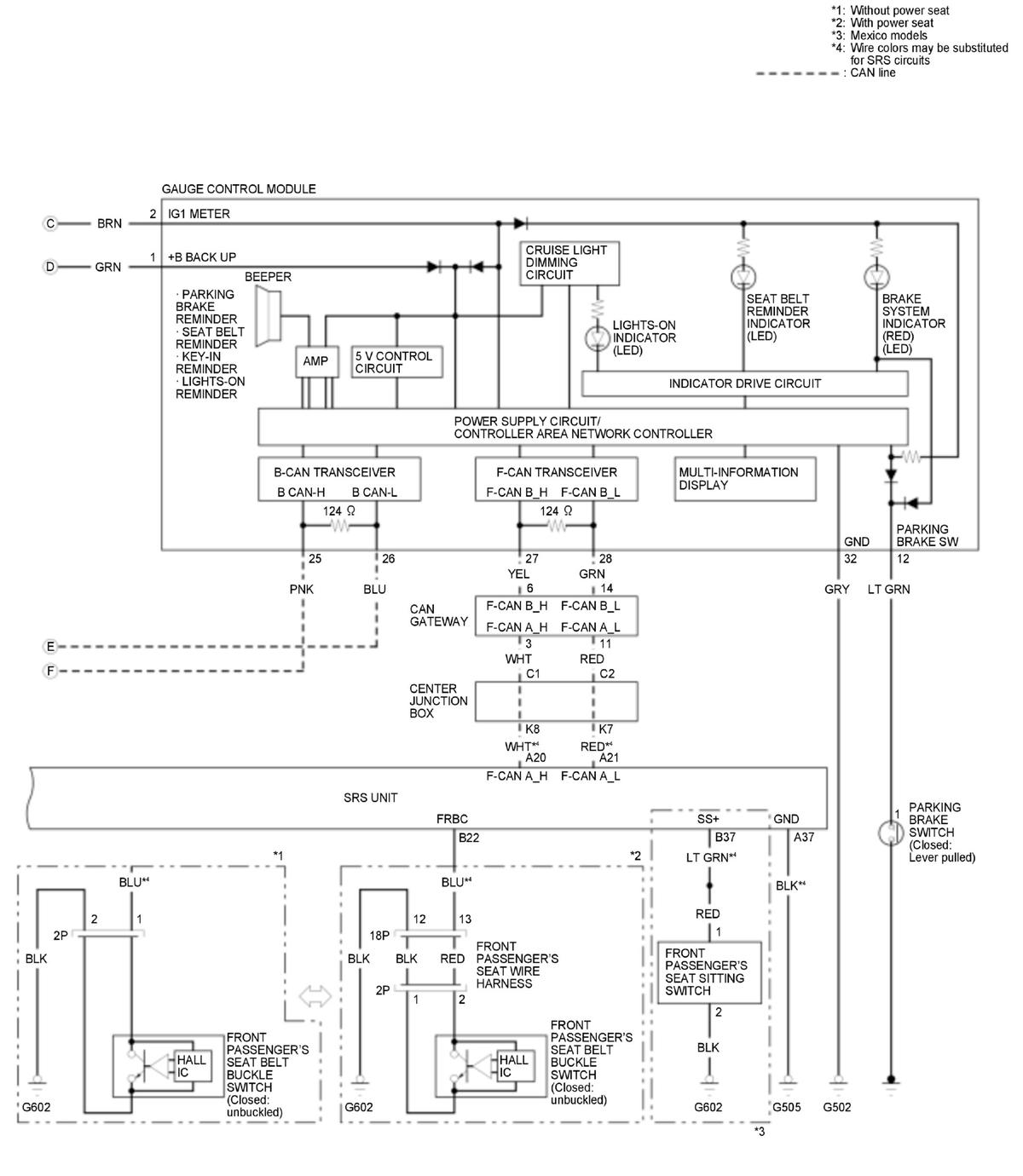

GHH470308

Courtesy of HONDA, U.S.A., INC.
