Output Shaft (Countershaft) Speed Sensor Removal and Installation(K24Z7) (2013 2014 2015): Removal

  1. Engine Undercover - Remove
    1. Remove the engine undercover .
  2. Output Shaft (Countershaft) Speed Sensor - Remove

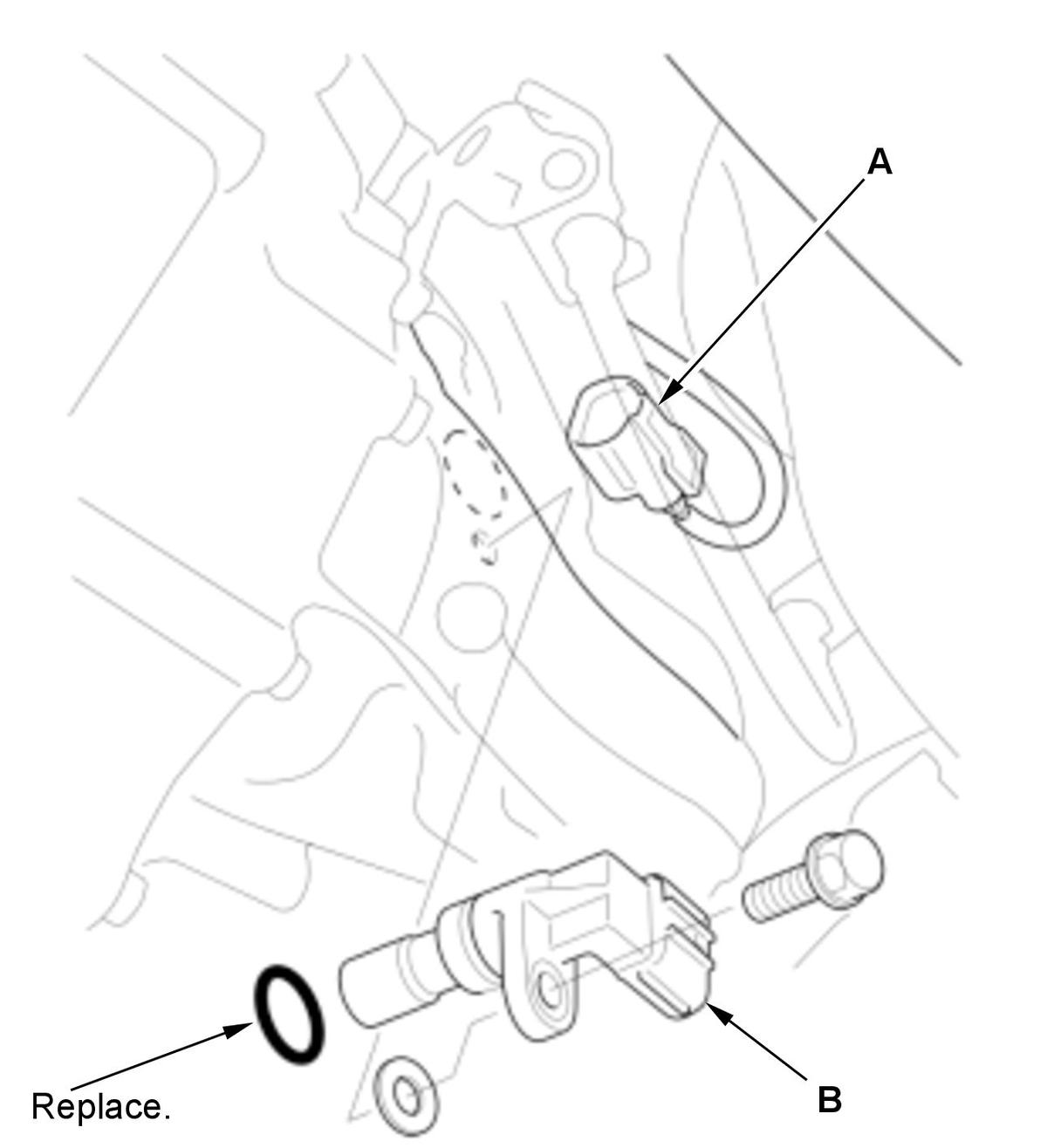

    GHH470408Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the output shaft (countershaft) speed sensor connector (A).

    2. Remove the output shaft (countershaft) speed sensor (B).
