Output Shaft (Countershaft) Speed Sensor Removal and Installation(K24Z7) (2013 2014 2015): Installation

Output Shaft (Countershaft) Speed Sensor - Install

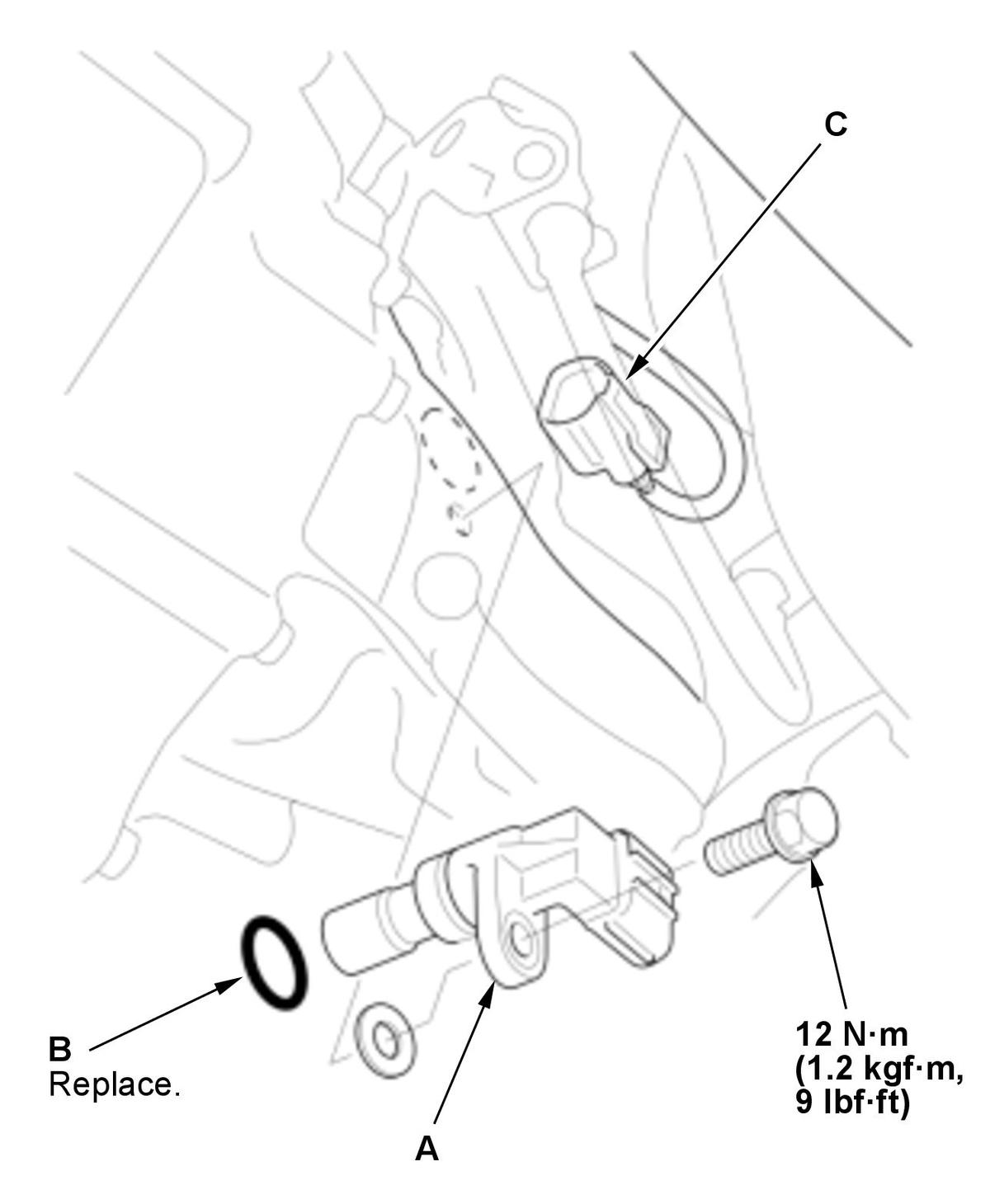

Fig 1: Output Shaft (Countershaft) Speed Sensor With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the output shaft (countershaft) speed sensor (A) with a new O-ring (B).

2. Connect the output shaft (countershaft) speed sensor connector (C).
