Mirrors - Testing & Troubleshooting (Except Hybrid)
>>

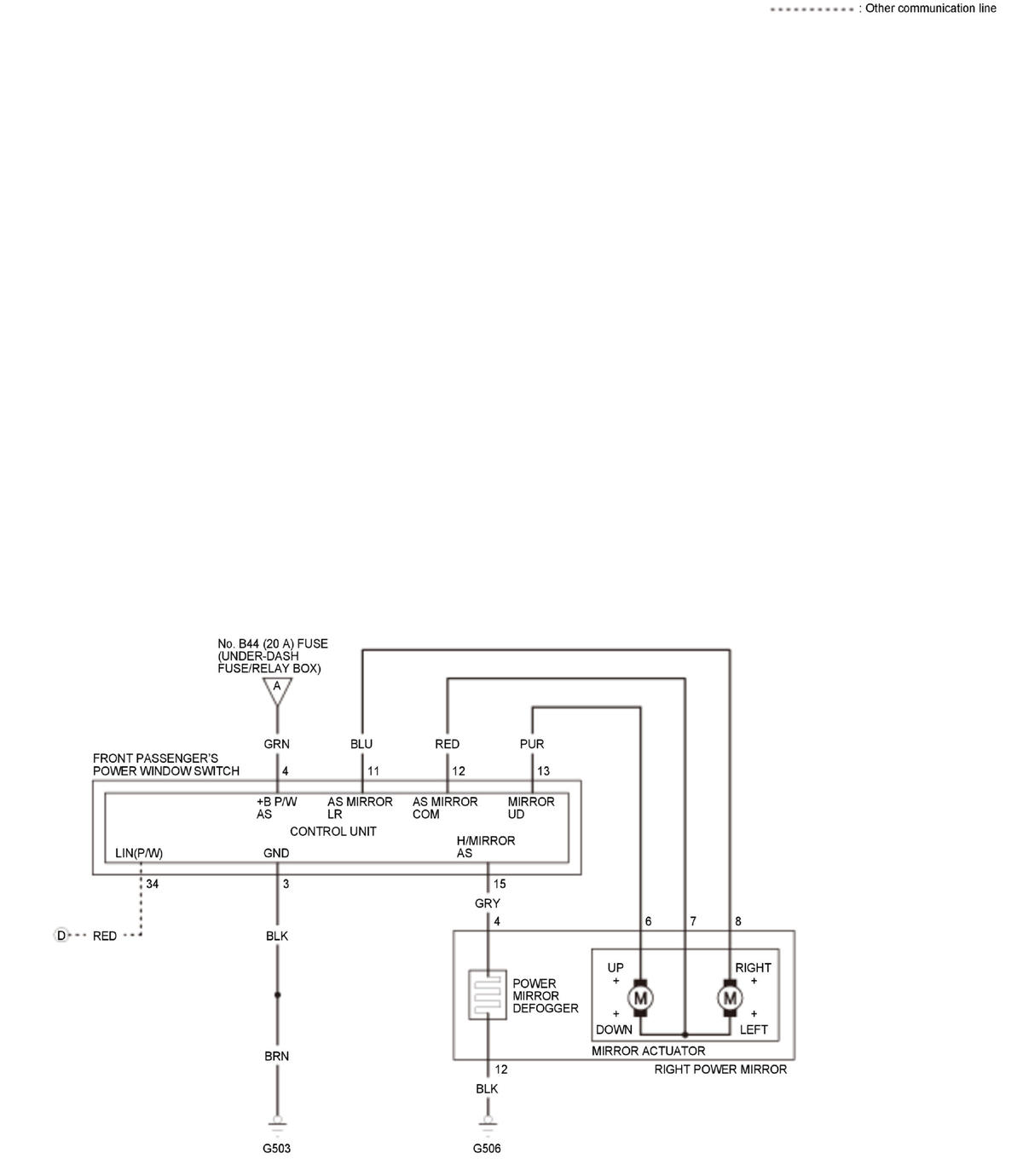

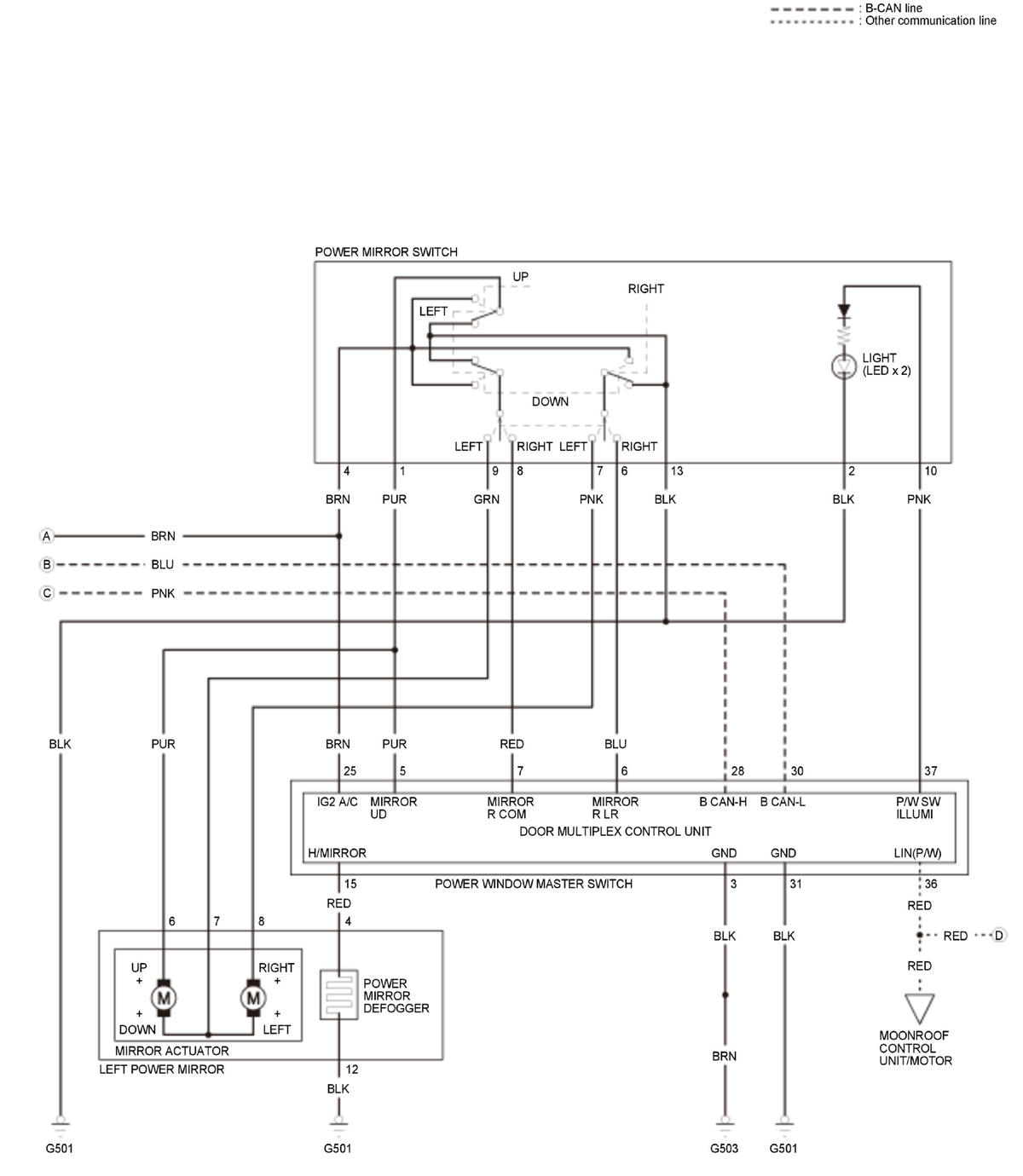

Circuit Diagram
>>
Power Mirrors (2013 2014 2015)
Power Mirrors (2013 2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
