Trunk Lid Latch Switch: Test

  1. Trunk Lid Trim Panel - Remove
    1. Remove the trunk lid trim panel .
  2. Trunk Lid Latch Switch - Test
    GHH471713GHH471714Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH471713GHH471714Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

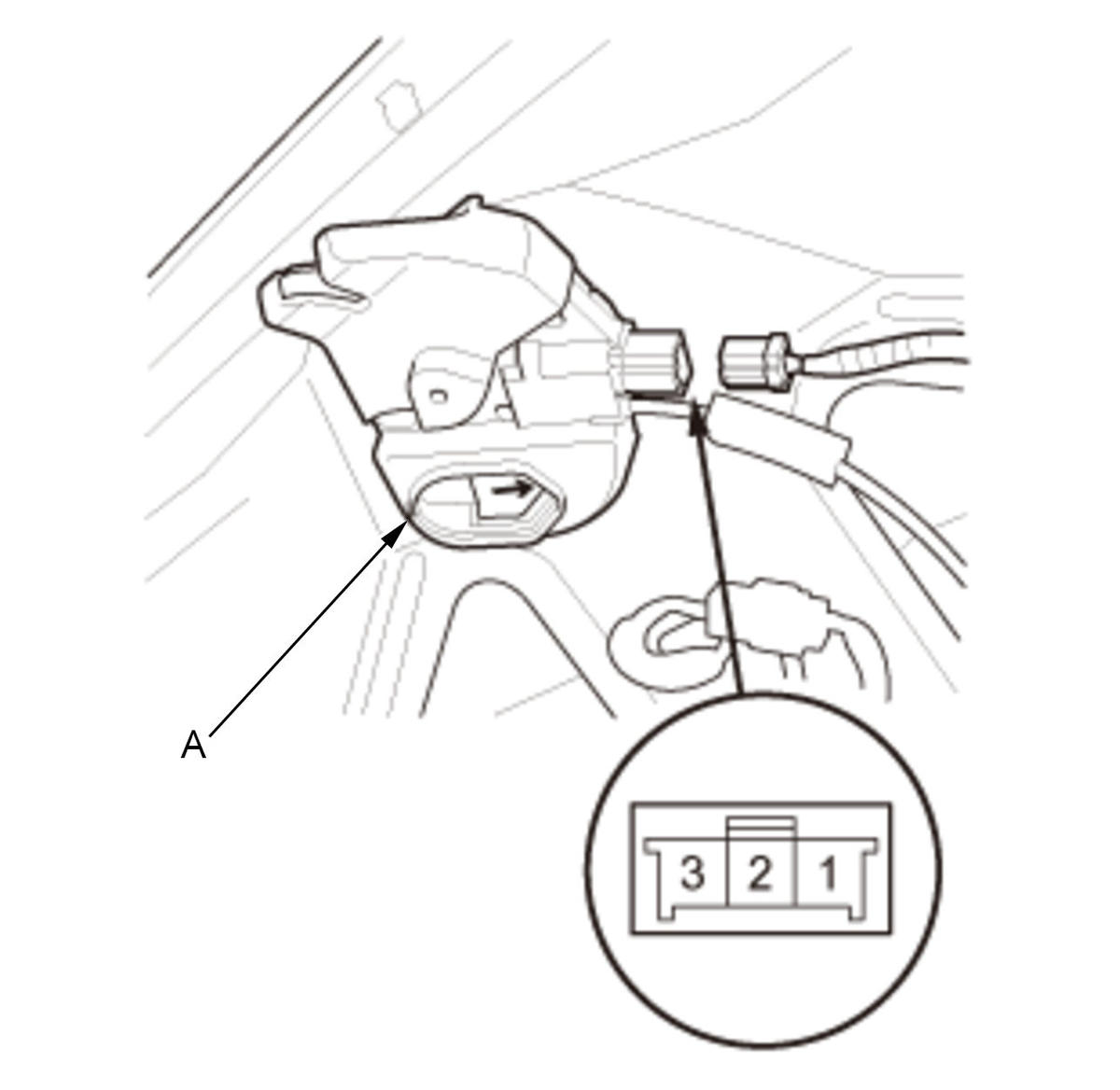

    		 1. Disconnect the trunk lid latch switch connector.

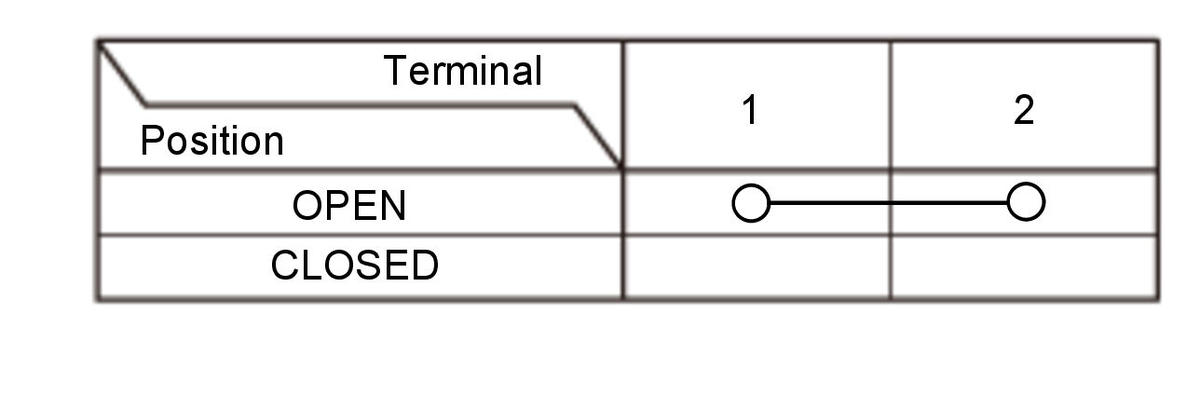

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, the trunk lid latch switch is faulty; replace the trunk lid latch

    (A).

    4. Connect the trunk lid latch switch connector.
  3. Trunk Lid Trim Panel - Install
    1. Install the trunk lid trim panel .
