Ambient Light: Test

  1. Roof Console Module - Remove
    1. Remove the roof console module .
  2. Ambient Light - Test

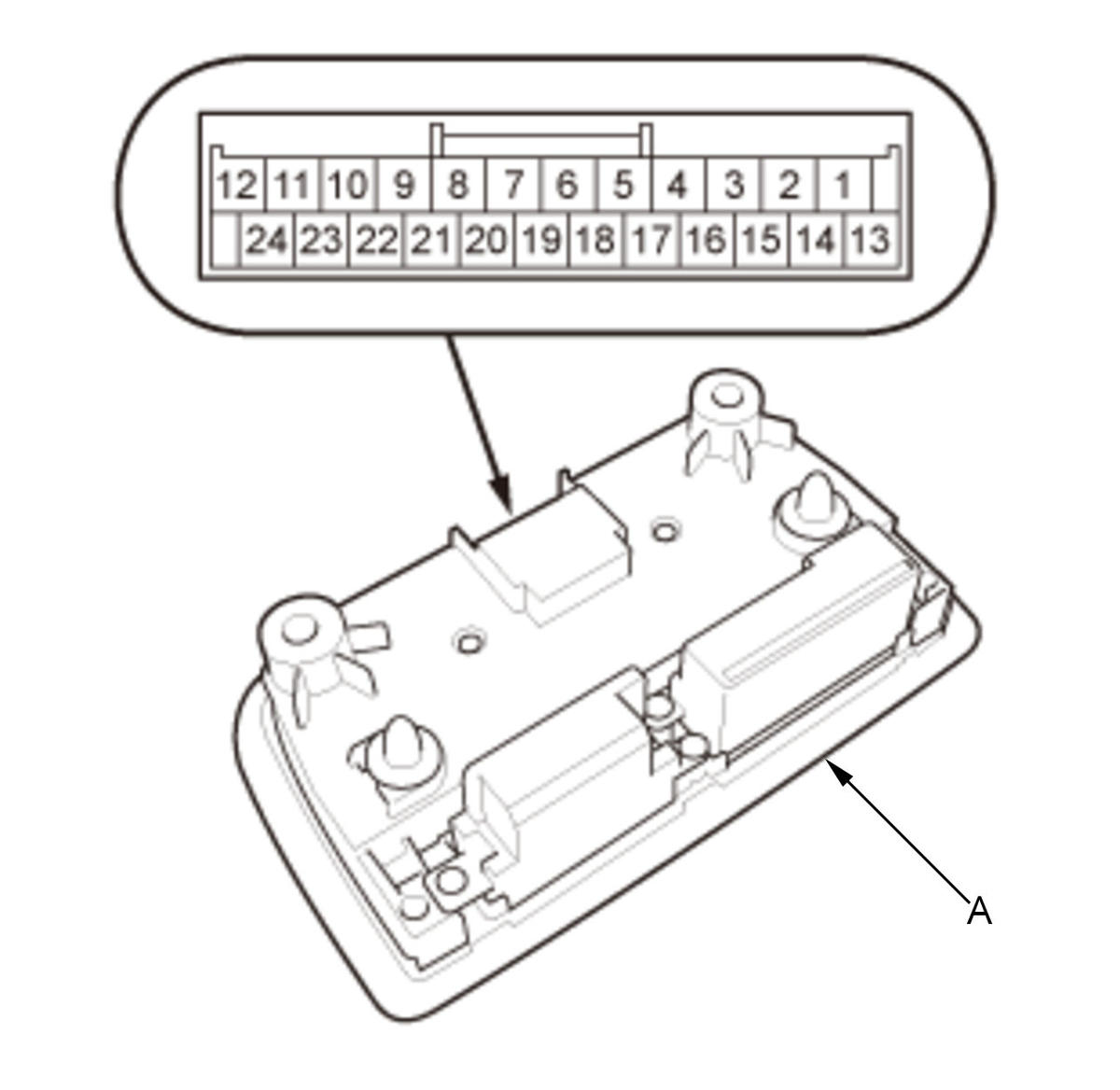

    GHH471707GHH471708Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

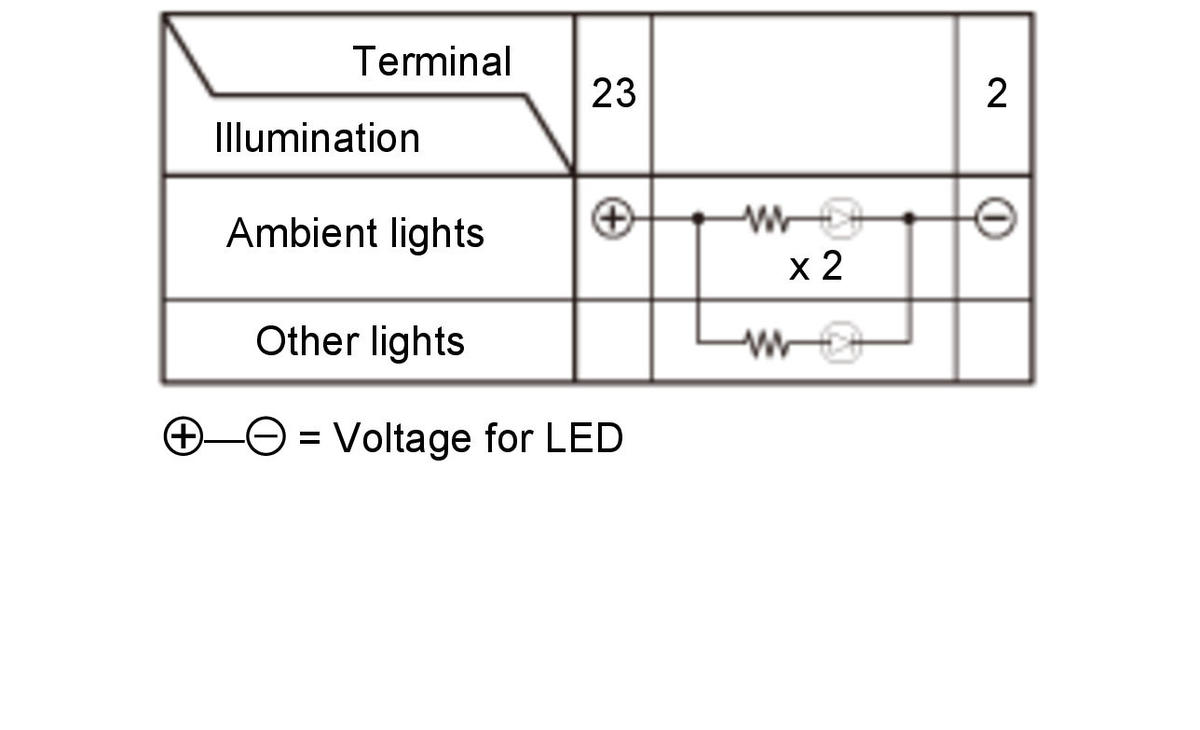

    GHH471707GHH471708Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 NOTE:  The ambient light is built into the roof console module (A).

    1. Check the LEDs according to the table.

    NOTE:

    • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    2. If the result is not as specified, the ambient light is faulty; replace the roof console module .
  3. Roof Console Module - Install
    1. Install the roof console module .
