Wiper Arm/Nozzle: Adjustment
- Wiper Arm/Nozzle - Adjustment
NOTICE:

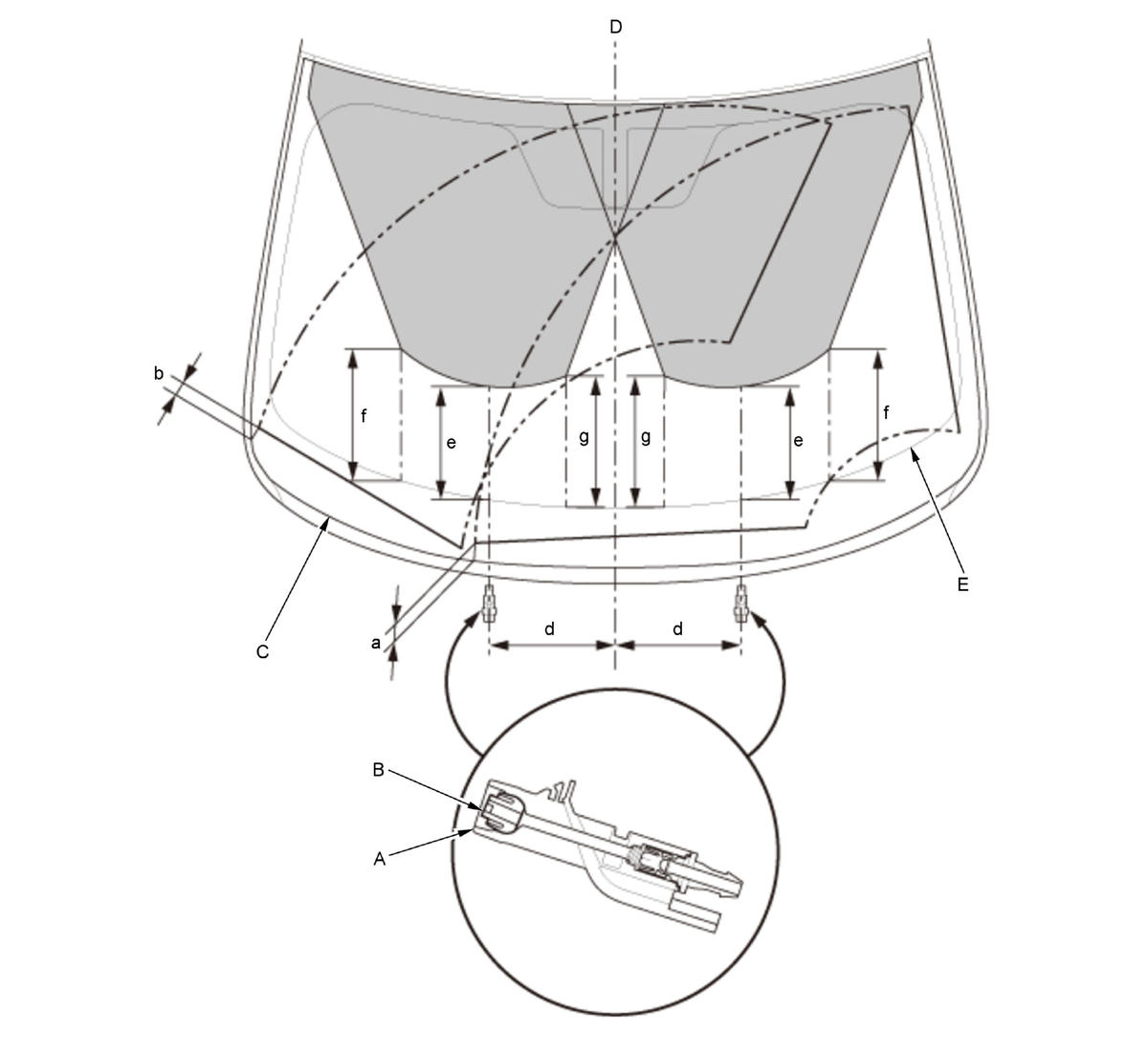

- Adjust the washer nozzles by gently gripping, and then moving, the outside of each nozzle (A).
- Do not insert tools into the nozzle hole (B), as it may cause the washer fluid to spray incorrectly.
Wiper Arms Auto-Stop Position
1. Press the engine start/stop button to select the ON mode, then turn the wiper switch ON, and then back OFF.
2. When the wiper arms stop at the auto-stop position, make sure that they are at the correct position.a: Position at about 37.0 mm (1.457 in) from the top of the cowl cover (C).b: Position at about 40.8 mm (1.606 in) from the top of the cowl cover (C).
Washer Nozzle Position
3. When you turn on the washer, make sure 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzle(s).d: Position at about 250.0 mm (9.843 in) from the windshield center line (D).e: Position at about 219.8 mm (8.654 in) from the top of the black ceramic area (E) at the lower windshield.f: Position at about 258.9 mm (10.192 in) from the top of the black ceramic area (E) at the lower windshield.g: Position at about 255.2 mm (10.047 in) from the top of the black ceramic area (E) at the lower windshield.
