Audio - Poor or no sound with AM/FM radio(Without Navigation) (2016 2017 2018 2019 2020 2021 2022)

Poor or no sound with AM/FM radio

NOTE:

Check the vehicle battery condition first .
Check for aftermarket accessories plugged into the vehicle accessory power sockets.
Check for any radio frequency modulators that are plugged into the FM antenna lead. These modulators allow clients to play audio from accessories like CD players or game consoles using the audio system, but they can create interference issues.
Check the radio reception in an open area. Compare it to a known-good vehicle whenever possible. Poor reception/interference can be caused by the following:
- -
  The radio station is far away
- -
  Atmospheric conditions are unfavorable
- -
  Tall buildings, mountains, or high-voltage power lines are nearby
- -
  Electrical loads like the rear window defroster, seat heaters, game consoles, etc.
Check the connectors for poor connections or loose terminals.

Problem verification
-1. Park the vehicle in an open area.

-2. Press the engine start/stop button to select the ON mode.

-3. Turn on the audio system, and select AM or FM radio station.

Is the sound quality normal?

YES

Intermittent failure, the system is OK at this time.

NO

The failure is duplicated, go to step 2.
Reception/interference check
-1. Check if the radio reception/interference is the same as the known-good vehicle in several locations.

Is the AM or FM sound quality the same?

YES

Multipath interference or weak station. Operation is normal.

NO

Go to step 3.
Seek stop test
-1. Do the Seek Stop Test in the Sound Quality Diagnosis .

Is the test vehicle within 10 % of the known-good vehicle?

YES

Go to step 11.

NO

Go to step 4.

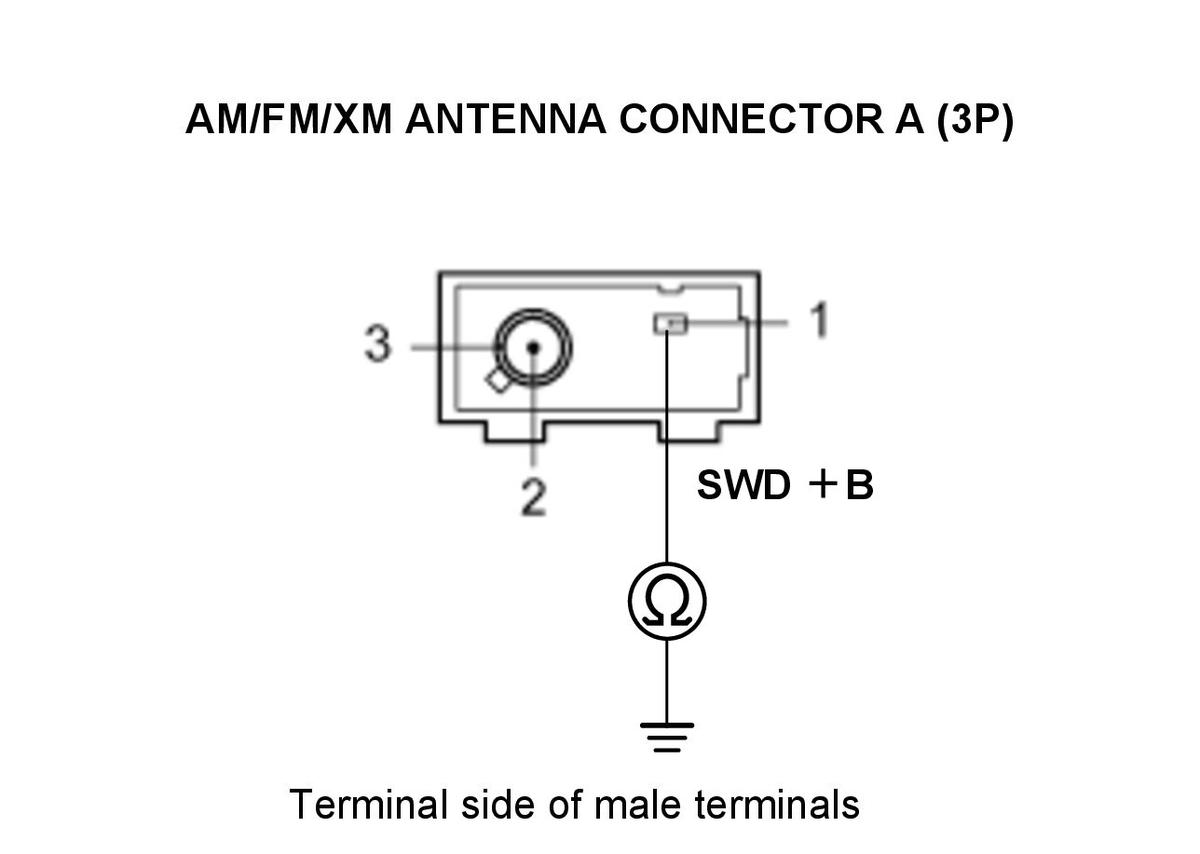

Determine possible failure area (SWD +B line, AM/FM line)

-1. Press the engine start/stop button to select the OFF mode.

-2. Disconnect the following connector.

AM/FM/XM antenna connector A (3P)

-3. Press the engine start/stop button to select the ON mode.

-4. Turn on the audio unit.

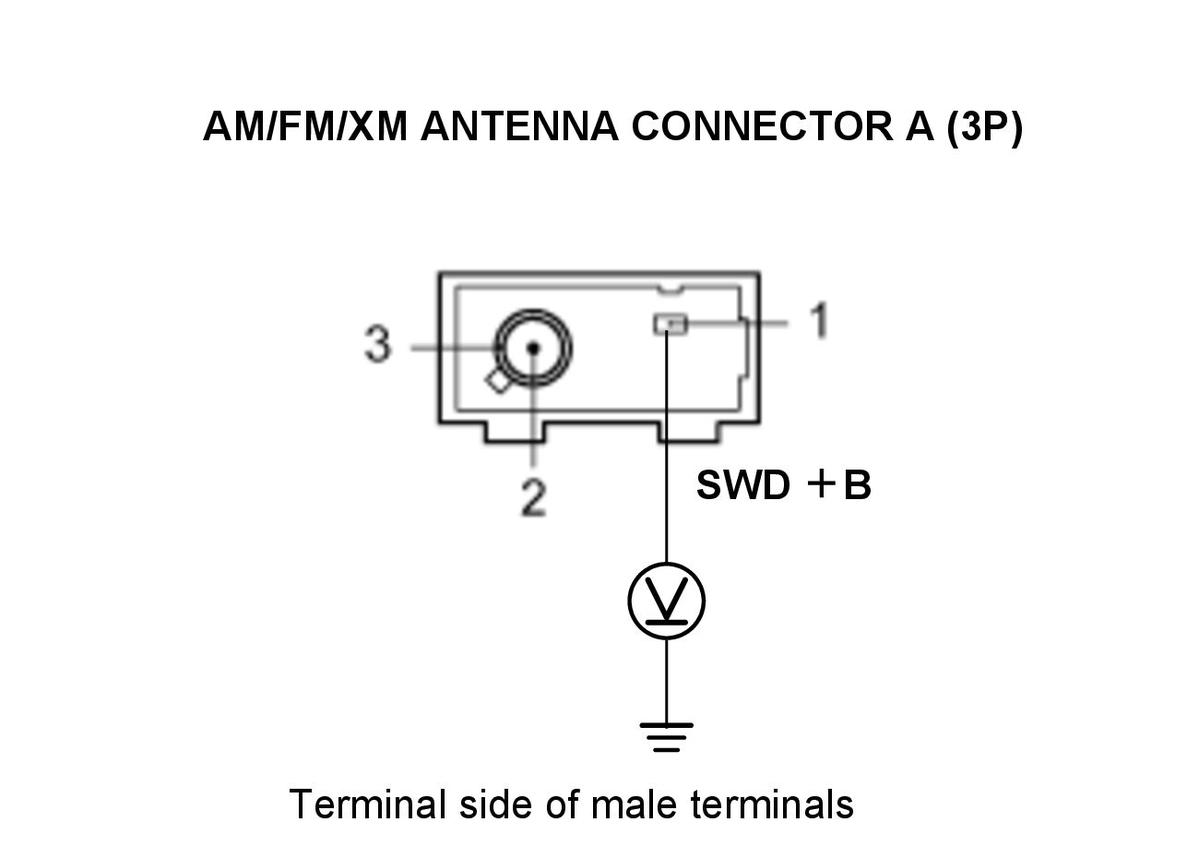

-5. Measure the voltage between test points 1 and 2.

Test condition	ON mode
	AM/FM/XM antenna connector A (3P): disconnected
Test circuit	SWD +B
Test point 1	AM/FM/XM antenna connector A (3P) No. 1
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there battery voltage?

YES

The SWD +B wire is OK. Go to step 7.

Go to step 5.

Shorted wire check (SWD +B line)

-1. Press the engine start/stop button to select the OFF mode.

-2. Disconnect the following connector.

Tuner unit connector B (5P)

-3. Check for continuity between test points 1 and 2.

Test condition	OFF mode
	AM/FM/XM antenna connector A (3P): disconnected
	Tuner unit connector B (5P): disconnected
Test circuit	SWD +B
Test point 1	AM/FM/XM antenna connector A (3P) No. 1
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Repair a short to body ground in the wire between the tuner unit and the AM/FM/XM antenna.

The SWD +B wire is not shorted to ground. Go to step 6.

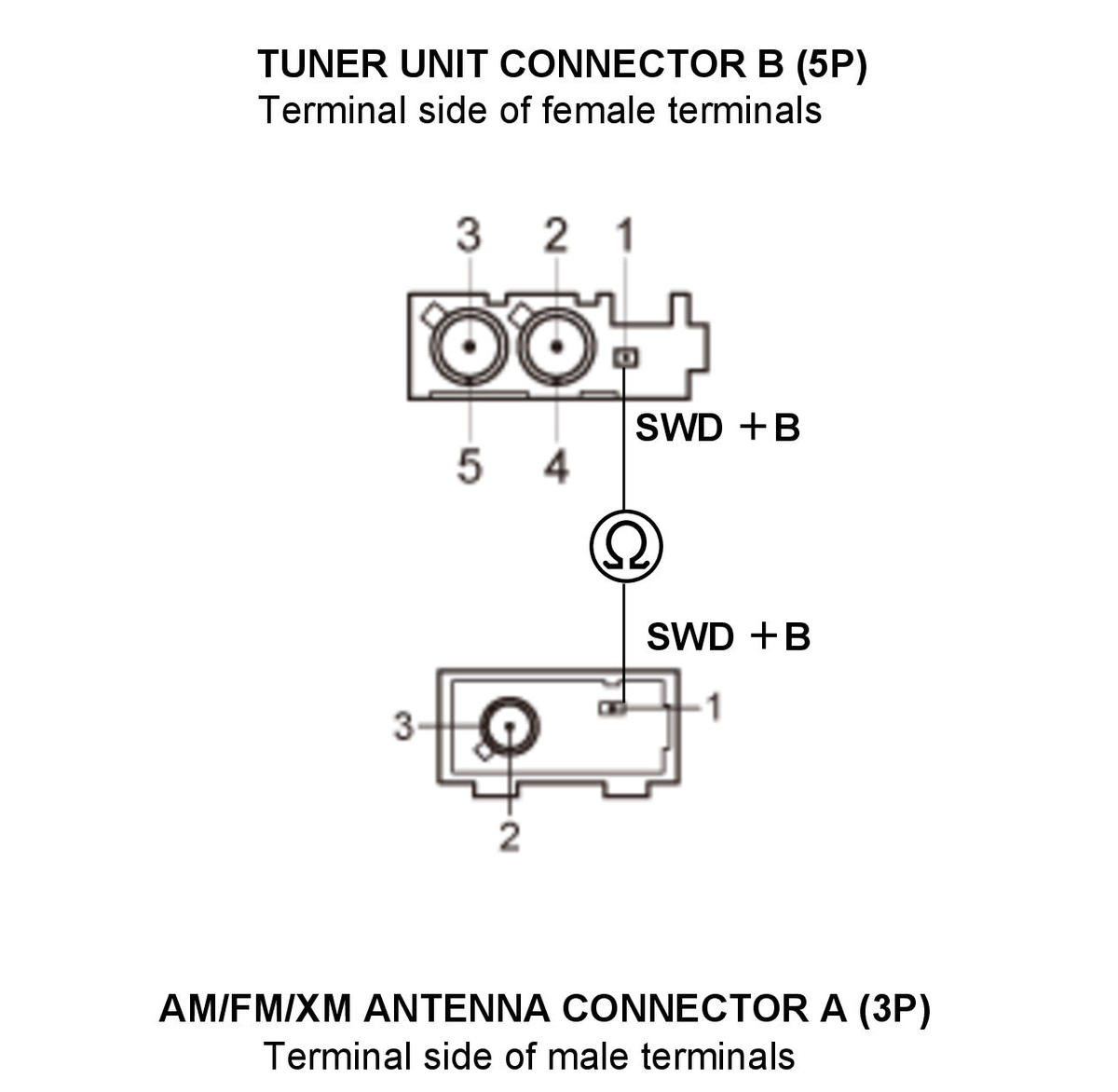

Open wire check (SWD +B line)

-1. Check for continuity between test points 1 and 2.

Test condition	OFF mode
	AM/FM/XM antenna connector A (3P): disconnected
	Tuner unit connector B (5P): disconnected
Test circuit	SWD +B
Test point 1	Tuner unit connector B (5P) No. 1
Test point 2	AM/FM/XM antenna connector A (3P) No. 1

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Replace the tuner unit .

Repair an open in the wire between the tuner unit and the AM/FM/XM antenna.

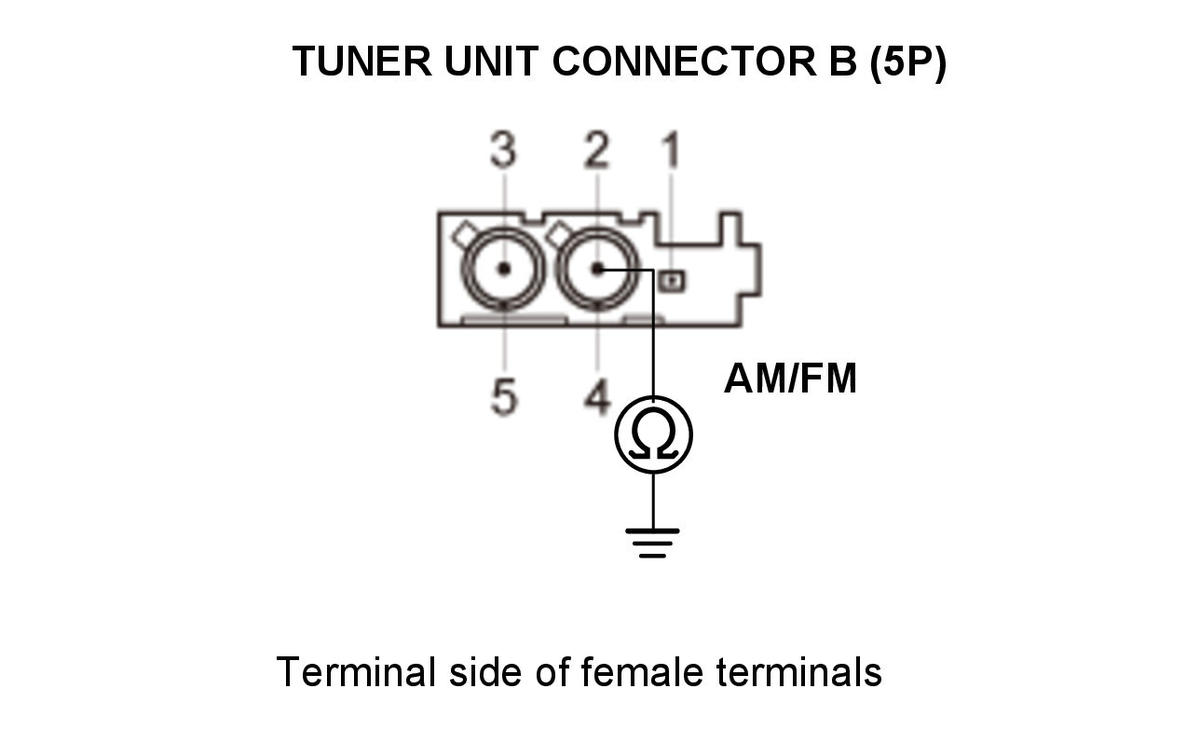

Shorted wire check (AM/FM line)

-1. Press the engine start/stop button to select the OFF mode.

-2. Disconnect the following connector.

Tuner unit connector B (5P)

-3. Check for continuity between test points 1 and 2.

Test condition	OFF mode
	AM/FM/XM antenna connector A (3P): disconnected
	Tuner unit connector B (5P): disconnected
Test circuit	AM/FM
Test point 1	Tuner unit connector B (5P) No. 2
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Replace the antenna rear lead.

The AM/FM wire is not shorted to ground. Go to step 8.

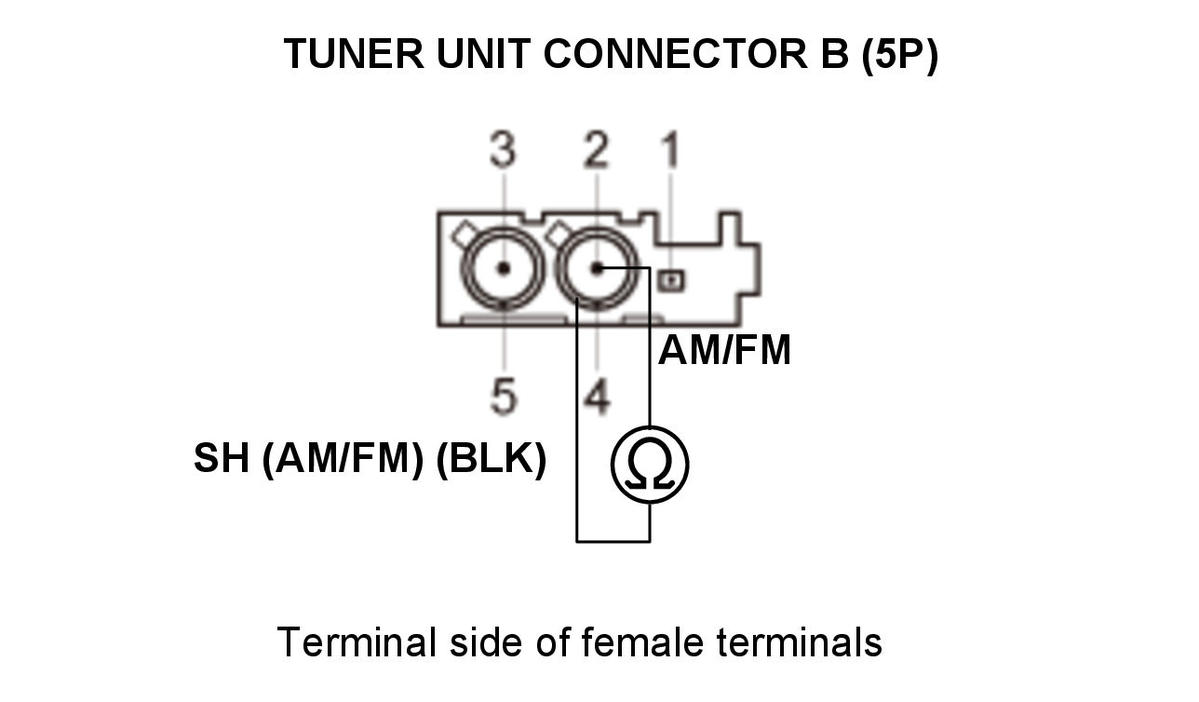

Shorted wire check (AM/FM line to SH (AM/FM) line)

-1. Check for continuity between test points 1 and 2.

Test condition	OFF mode
	AM/FM/XM antenna connector A (3P): disconnected
	Tuner unit connector B (5P): disconnected
Test circuit	AM/FM, SH (AM/FM)
Test point 1	Tuner unit connector B (5P) No. 2
Test point 2	Tuner unit connector B (5P) No. 4 (BLK)

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Replace the antenna rear lead.

The AM/FM wire is not shorted to SH(AM/FM) wire. Go to step 9.

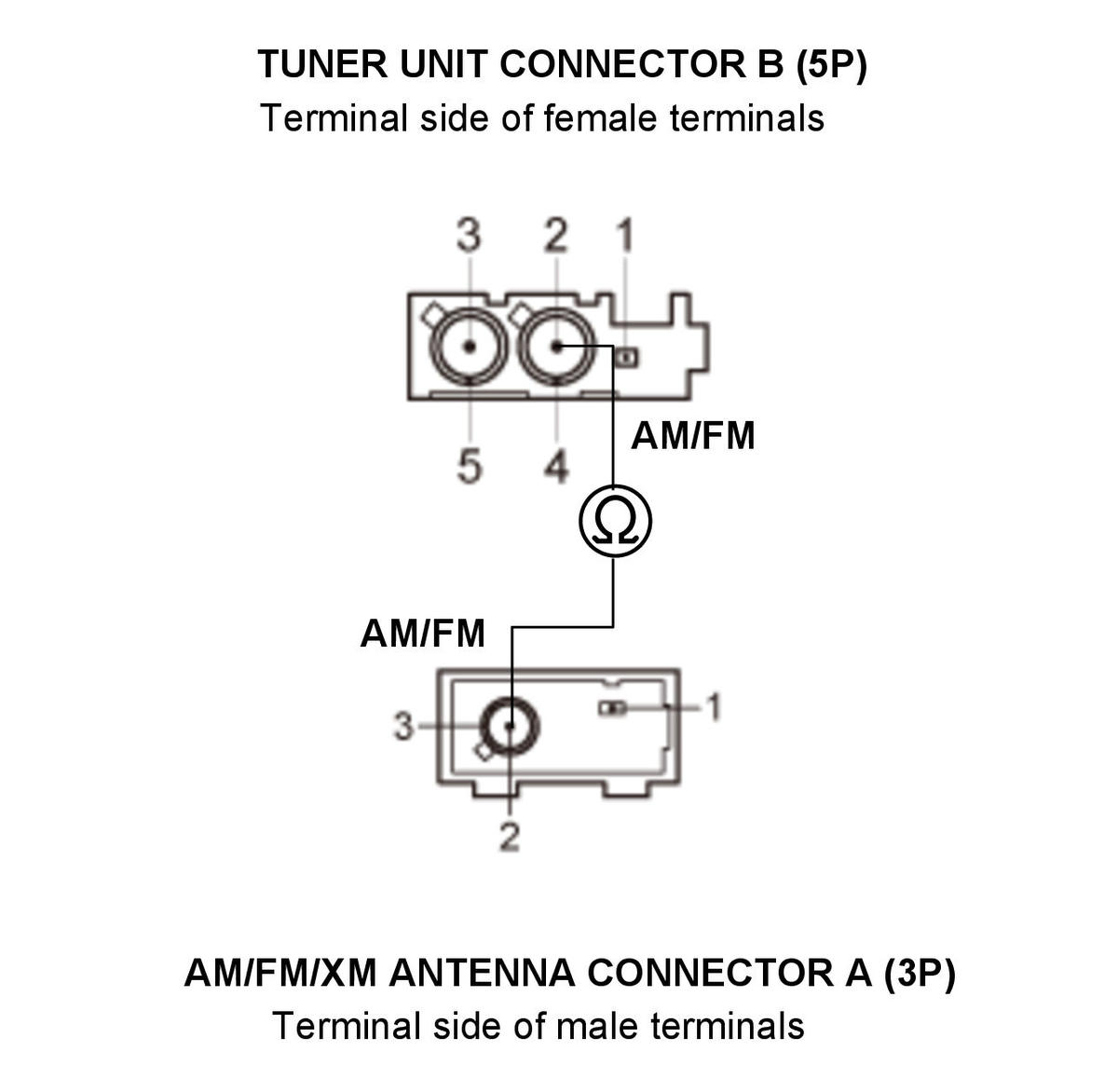

Open wire check (AM/FM line)

-1. Check for continuity between test points 1 and 2.

Test condition	OFF mode
	AM/FM/XM antenna connector A (3P): disconnected
	Tuner unit connector B (5P): disconnected
Test circuit	AM/FM
Test point 1	Tuner unit connector B (5P) No. 2
Test point 2	AM/FM/XM antenna connector A (3P) No. 2

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The AM/FM wire is OK. Go to step 10.

Replace the antenna rear lead.

AM/FM antenna check (substitution)
-1. Substitute a known-good AM/FM/XM antenna .

-2. Reconnect all the connectors, and recheck.

Does the symptom go away?

YES

Replace the original AM/FM/XM antenna.

NO

Replace the tuner unit .

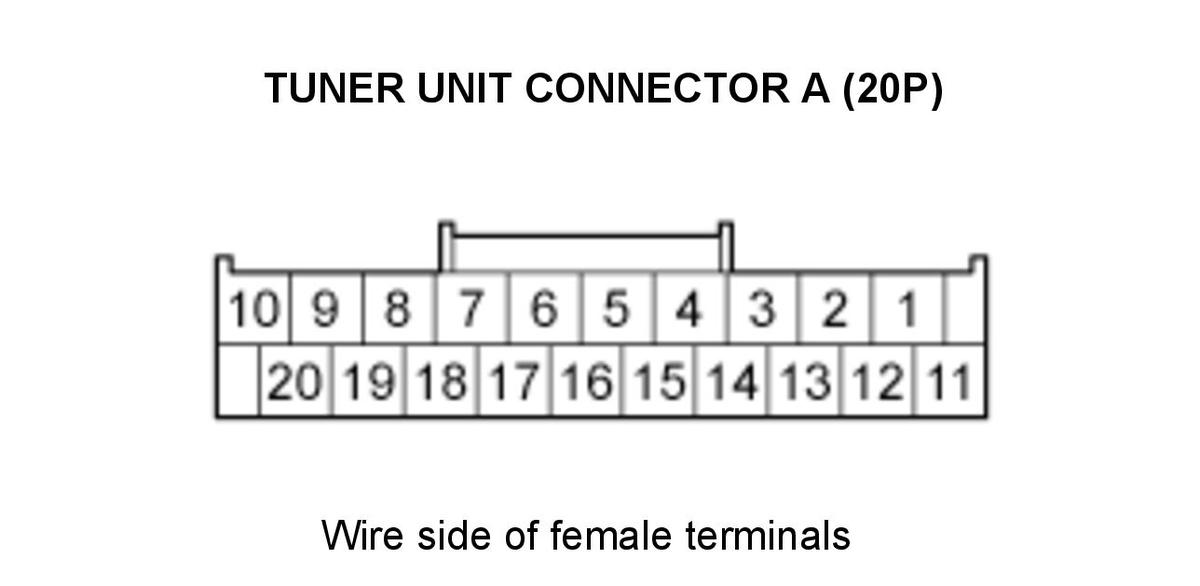

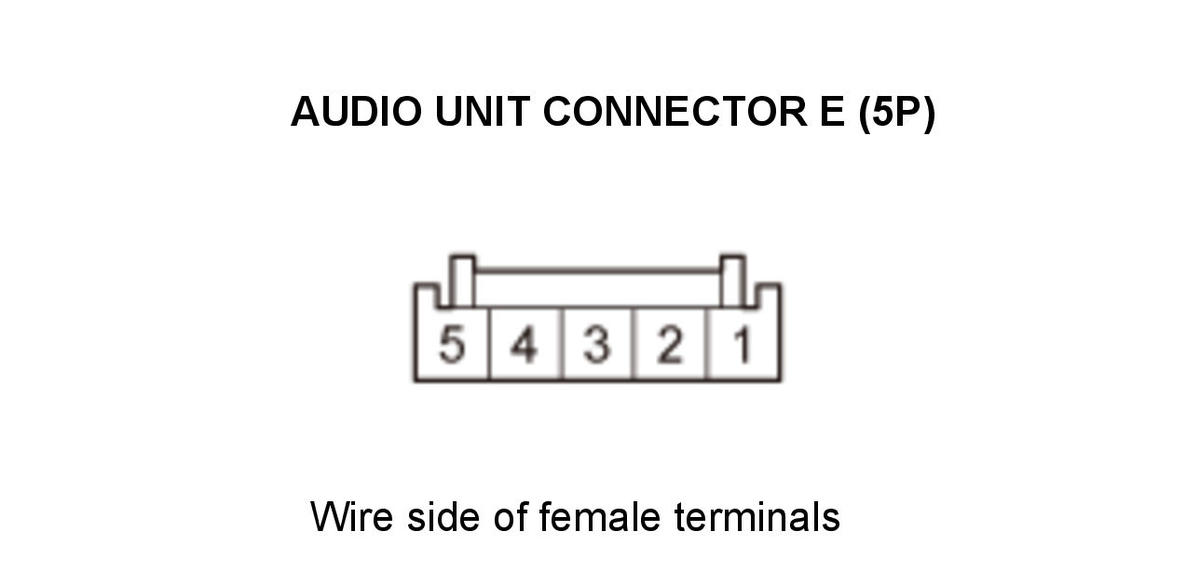

Shorted wire check (TUN AUDIO lines) 1

-1. Press the engine start/stop button to select the OFF mode.

-2. Disconnect the following connectors.

Audio unit connector E (5P)

Tuner unit connector A (20P)

-3. Check for continuity between these test points and body ground individually.

Test condition	OFF mode
	Audio unit connector E (5P): disconnected
	Tuner unit connector A (20P): disconnected

Connector	Test circuit	Terminal
Tuner unit connector A (20P)	TUN AUDIO L-	No. 3 (WHT)
	TUN AUDIO R-	No. 4 (RED)
	TUN AUDIO L+	No. 13 (GRN)
	TUN AUDIO R+	No. 14 (BLK)

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

There is a short to body ground in the wire(s) between the audio unit and the tuner unit. Replace the affected shielded harness.

The TUN AUDIO wires are not shorted to ground. Go to step 12.

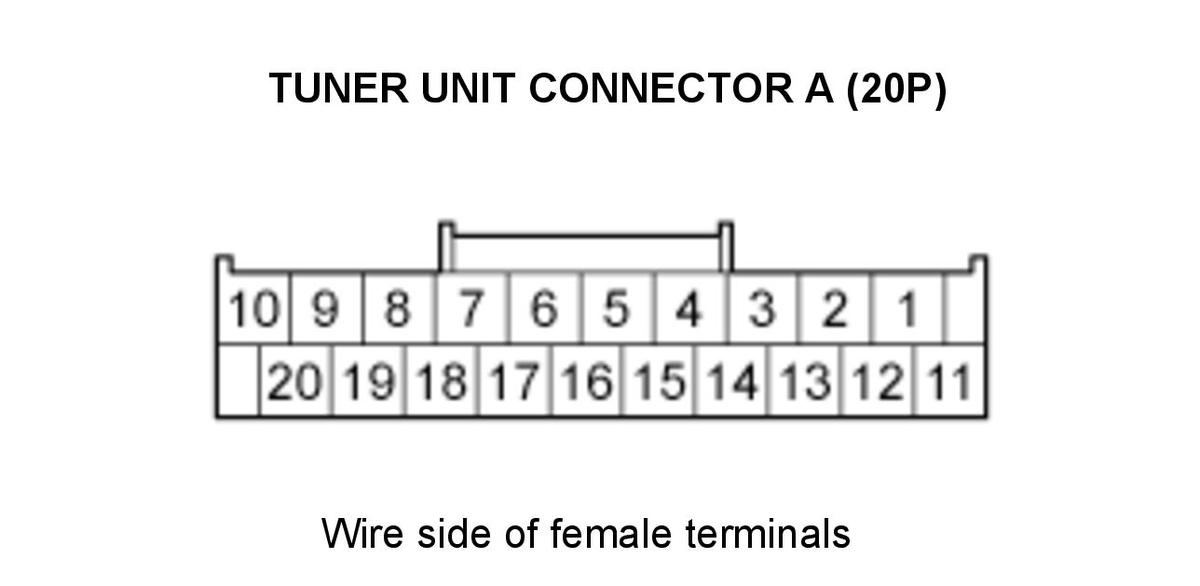

Shorted wire check (TUN AUDIO lines) 2

-1. Check for continuity between test points 1 and 2.

Test condition	OFF mode
	Audio unit connector E (5P): disconnected
	Tuner unit connector A (20P): disconnected

Test circuits	Connector: Tuner unit connector A (20P)
Test circuits	Test point 1	Test points 2
TUN AUDIO L- to TUN AUDIO R-, TUN AUDIO SH, TUN AUDIO L+, TUN AUDIO R+	No. 3 (WHT)	No. 4 (RED), No. 5 (GRY), No. 13 (GRN), No. 14 (BLK)
TUN AUDIO R- to TUN AUDIO SH, TUN AUDIO L+, TUN AUDIO R+	No. 4 (RED)	No. 5 (GRY), No. 13 (GRN), No. 14 (BLK)
TUN AUDIO SH to TUN AUDIO L+, TUN AUDIO R+	No. 5 (GRY)	No. 13 (GRN), No. 14 (BLK)
TUN AUDIO L+ to TUN AUDIO R+	No. 13 (GRN)	No. 14 (BLK)

Courtesy of HONDA, U.S.A., INC.

Is there continuity between any of the terminals?

YES

There is a short in the wires between the audio unit and the tuner unit. Replace the affected shielded harness.

The TUN AUDIO wires are not shorted in the wires. Go to step 13.

Open wire check (TUN AUDIO lines)

-1. Check for continuity between test points 1 and 2.

Test condition	OFF mode
	Audio unit connector E (5P): disconnected
	Tuner unit connector A (20P): disconnected

Test circuit	Test point 1:Tuner unit connector A (20P)	Test point 2:Audio unit connector E (5P)
TUN AUDIO L-	No. 3 (WHT)	No. 2 (WHT)
TUN AUDIO R-	No. 4 (RED)	No. 4 (RED)
TUN AUDIO L+	No. 13 (GRN)	No. 3 (GRN)
TUN AUDIO R+	No. 14 (BLK)	No. 5 (BLK)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The TUN AUDIO wires are OK. Go to step 14.

There is an open in the wire(s) between the audio unit and the tuner unit. Replace the affected shielded harness.

Tuner unit check (substitution)
-1. Substitute a known-good tuner unit .

-2. Reconnect all the connectors, and recheck.

Does the symptom go away?

YES

Replace the original tuner unit.

NO

Replace the audio unit .
