Headlight Adjustment (2018 2019 2020): Adjustment

Headlight - Adjust

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Headlights become very hot during use; do not touch them or cover them with such items like fender covers immediately after they have been turned off.

Before adjusting the headlights:

Park the vehicle on a level surface.
Make sure the tire pressures are correct.
The driver or someone who weighs the same should sit in the driver's seat (or use an equivalent weight).
Unload the vehicle.

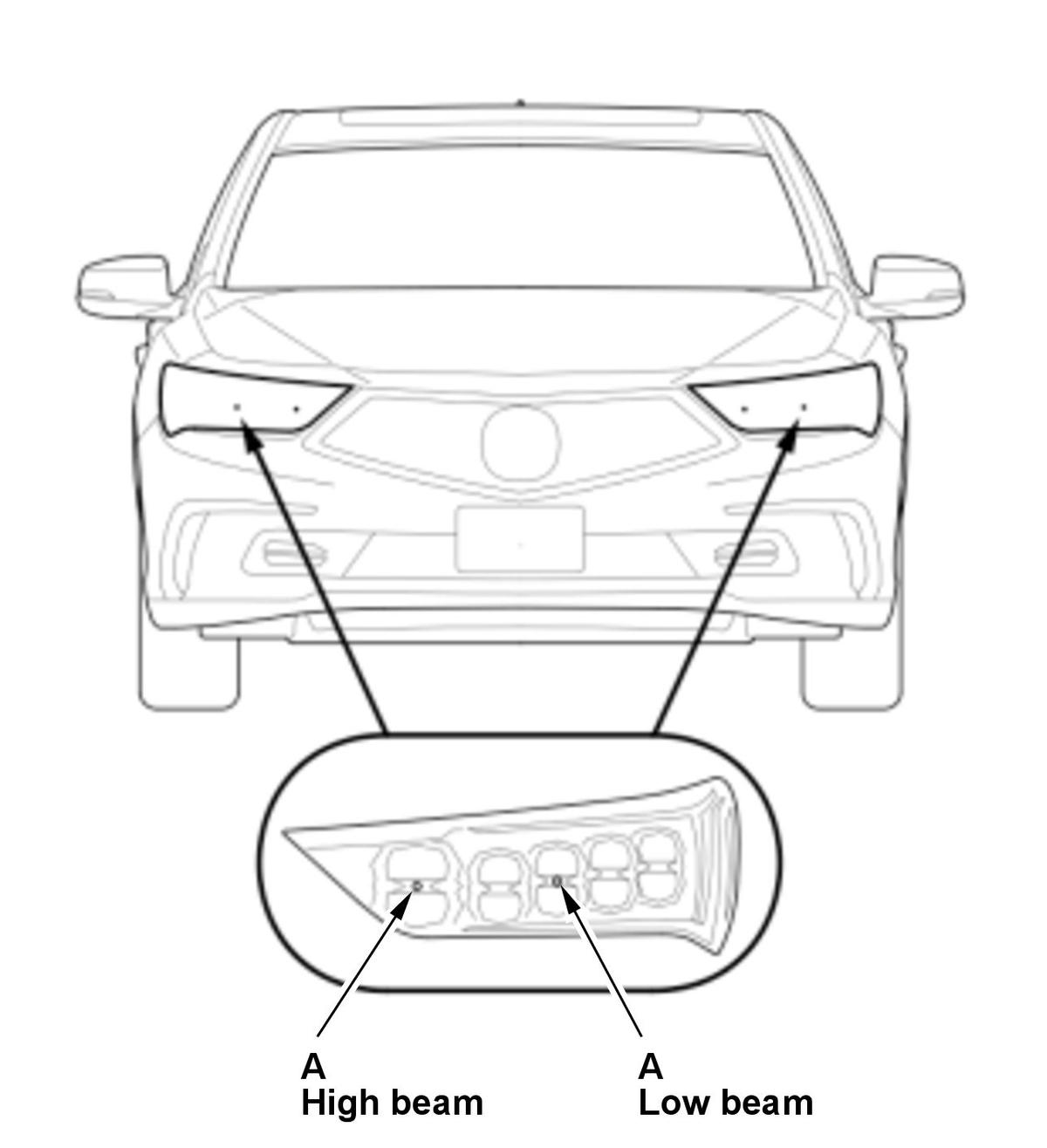

1. Clean the outer lens so that you can see the center (A) of the headlights.

Courtesy of HONDA, U.S.A., INC.

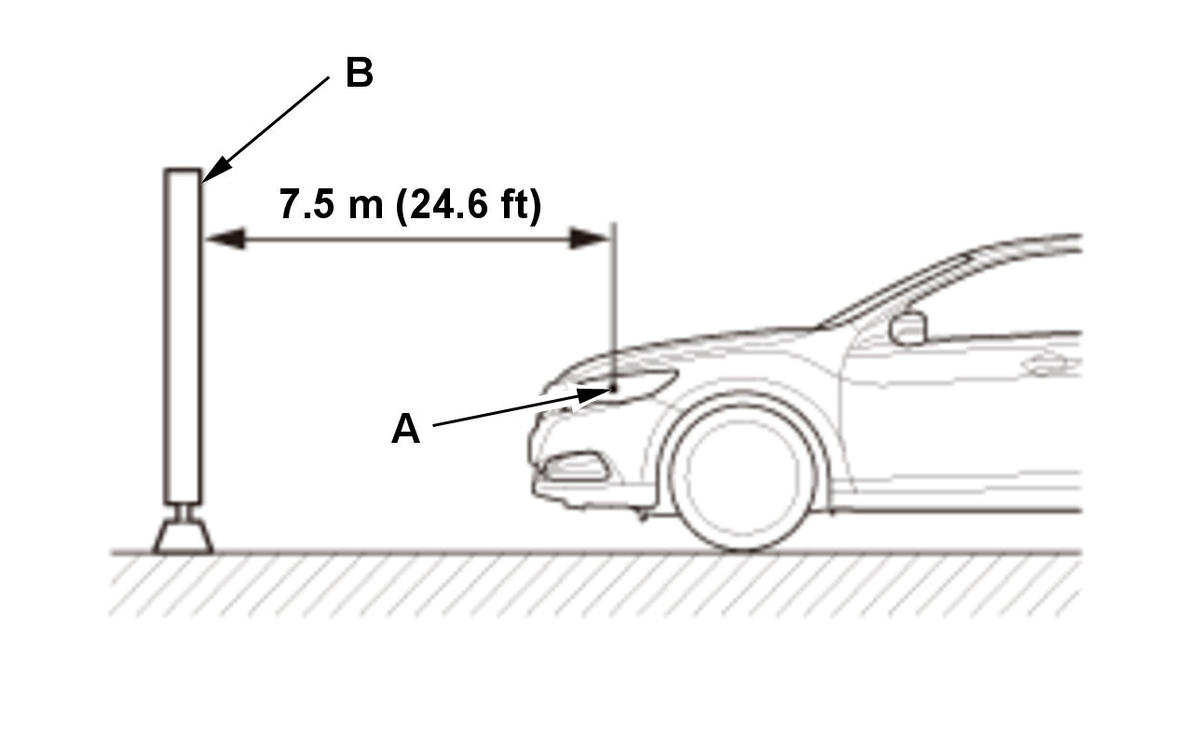

2. Park the vehicle so that the center mark of the headlight (A) is 7.5 m (24.6 ft) away from a wall or screen (B).

Courtesy of HONDA, U.S.A., INC.

3. Turn on the low beam headlights.

4. Determine if the headlights are aimed properly.

Vertical adjustment:

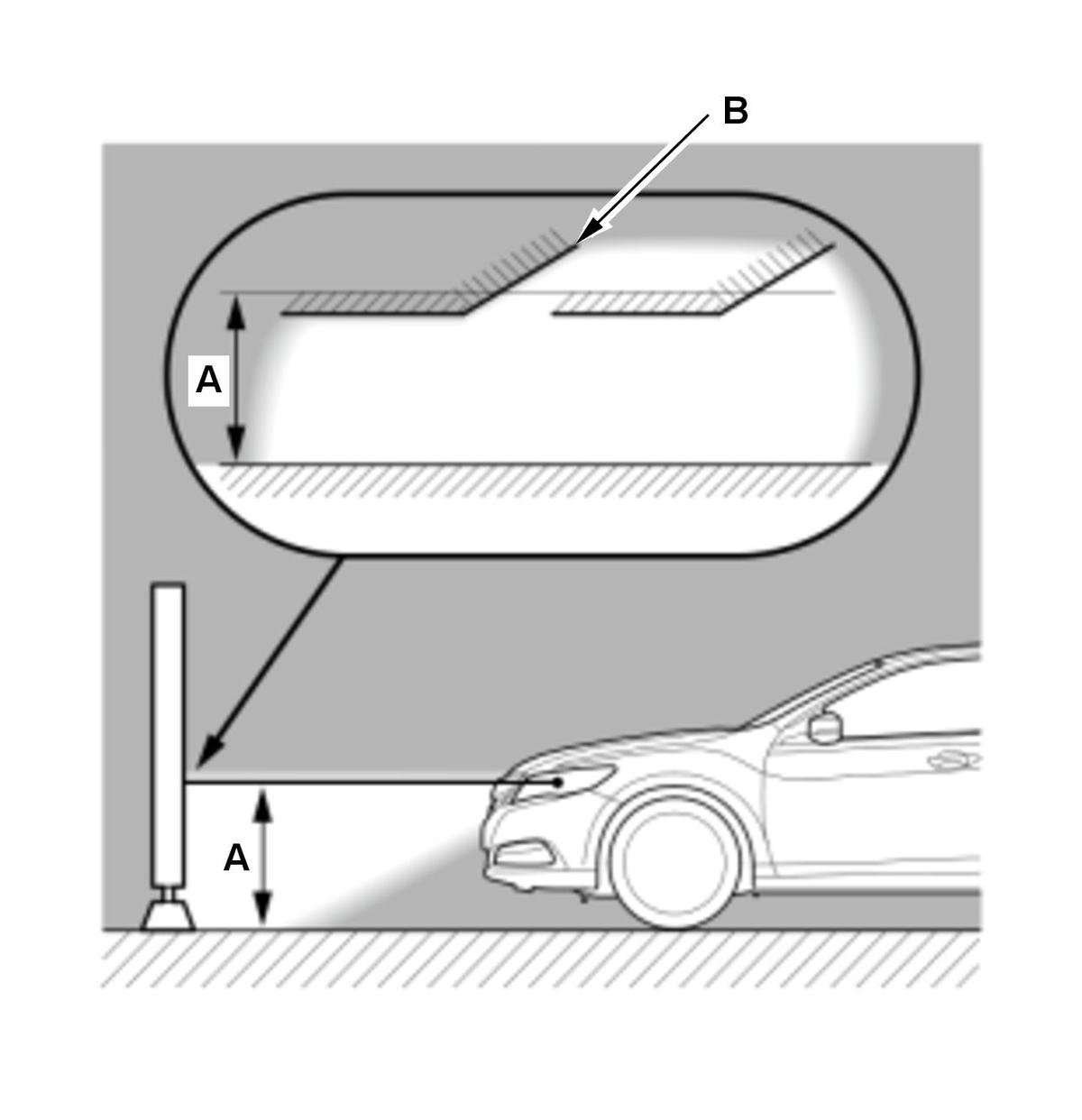

Measure the height of the headlights (A). Adjust the cut line (B) to the light's height.

NOTE: To help determine if a headlight is out of adjustment, block one of the beams with a large piece of cardboard or equivalent, and observe the other beam on the wall or screen. Repeat this for the other headlight.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

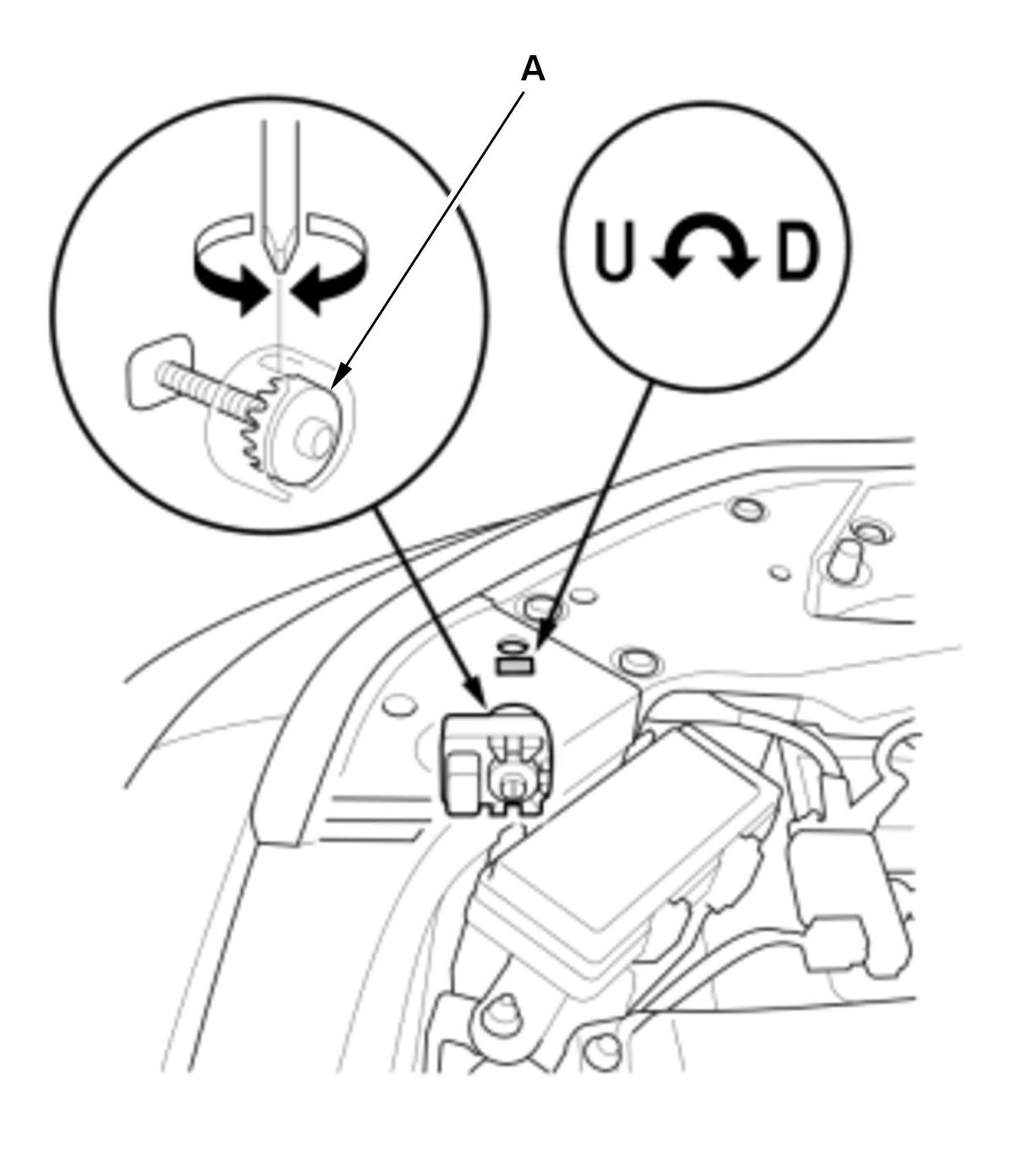

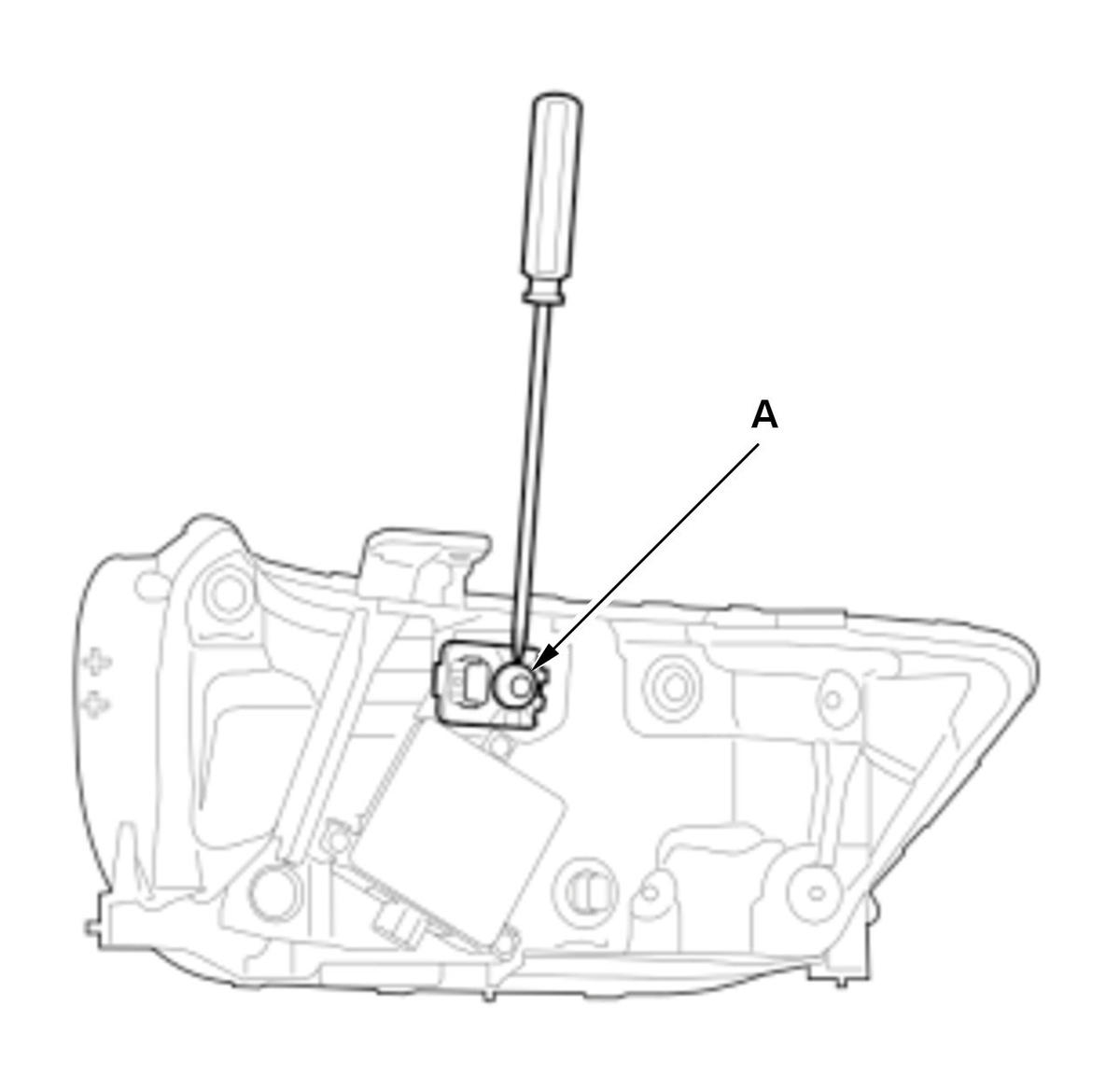

5. If adjustment is necessary, open the hood and adjust the headlights to local requirements by turning the adjuster (A).
NOTE: The R and L adjusters are not applicable. The headlights can only be adjusted up and down.
