Parking Brake Switch: Test

NOTE:  If both the ABS/VSA indicator and the brake system indicator come on at the same time, check the VSA system for DTCs first .

1. Center Console - Remove

   1. Remove the center console .

2. Parking Brake Switch - Test

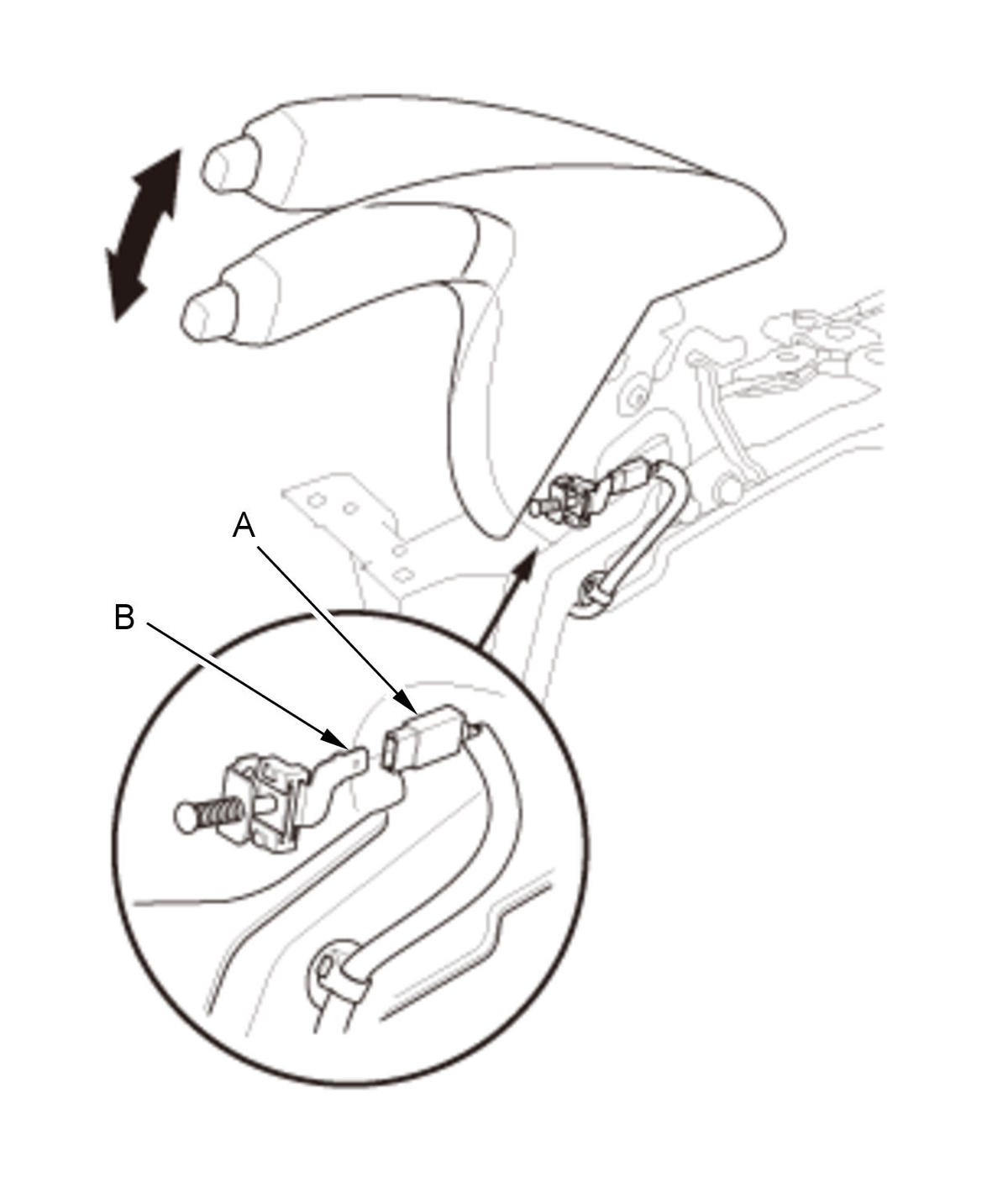

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the parking brake switch connector (A). 2. Check for continuity between the switch terminal (B) and body ground. With the parking brake lever pulled, there should be continuity. With the parking brake lever released, there should be no continuity. NOTE:  If the parking brake switch and the brake fluid level switch are OK, but the brake system indicator does not function, do the gauge control module self-diagnostic function . 3. Connect the parking brake switch connector.

3. Center Console - Install

   1. Install the center console .
