DTC B0072-13: Open or Increased Resistance in the Front Passenger's Seat Belt Tensioner (2018-19)
NOTE:
Before doing this troubleshooting procedure:
- Find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number, and that they were properly installed - Refer to: SRS Component Replacement/Inspection After Deployment .
- Review SRS Precautions and Procedures .
- Review General Troubleshooting Information
- Review information pertaining to 12 Volt Battery Terminal Disconnection and Reconnection
| DTC Description | DTC |
|---|---|
| B0072-13 Open or increased resistance in the front passenger's seat belt tensioner |
DTC (SRS)
- Problem verification
-1. Clear the DTCs with the HDS.
- 2. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 3. Check for DTCs with the HDS.
DTC Description DTC B0072-13 Open or increased resistance in the front passenger's seat belt tensioner Is DTC B0072-13 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.
- Front passenger's seat belt tensioner check
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- 3. Remove the right side B-pillar lower trim
- 4. Disconnect the following connector.

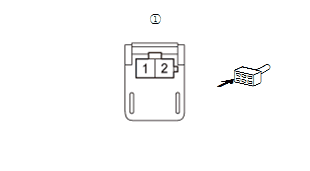

Front passenger's seat belt tensioner 2P connector (on the right side wire harness) - 5. Connect terminals A and B with a jumper wire.
Terminal A Front passenger's seat belt tensioner 2P connector (female terminals) No. 1 (on the right side wire harness): Terminal B Front passenger's seat belt tensioner 2P connector (female terminals) No. 2 (on the right side wire harness): - 6. Reconnect the negative cable to the 12 volt battery.
- 7. Clear the DTCs with the HDS.
- 8. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 9. Check for DTCs with the HDS.
DTC Description DTC B0072-13 Open or increased resistance in the front passenger's seat belt tensioner Is DTC B0072-13 indicated?
YES
Go to step 3.
NO
Open in the front passenger's seat belt tensioner; replace the front passenger's seat belt , then clear the DTC.
- Open wire check (RRP+, RRP- lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- 3. Remove the jumper wire from the front passenger's seat belt tensioner 2P connector on the right side wire harness.
- 4. Disconnect the following connector.
SRS unit connector B (39P) - 5. Connect terminals A and B with a jumper wire.
Terminal A SRS unit connector B (39P) No. 18 - Refer to: SRS Unit Connector for Inputs and Outputs Terminal B SRS unit connector B (39P) No. 19 - Refer to: SRS Unit Connector for Inputs and Outputs - 6. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Front passenger's seat belt tensioner 2P connector (on the right side wire harness): disconnected SRS unit connector B (39P): disconnected SRS unit connector B (39P) terminals No. 18 and No. 19: jumped Test point 1 Front passenger's seat belt tensioner 2P connector (female terminals) No. 1 (on the right side wire harness): Test point 2 Front passenger's seat belt tensioner 2P connector (female terminals) No. 2 (on the right side wire harness): Is there 1.0 Ω or less?
YES
The RRP+ and RRP- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, check for any authorized service information related to the DTCs or symptoms you are troubleshooting or replace the SRS unit - Refer to: SRS Unit Removal and Installation . If the DTC does not clear, replace the right side wire harness.
NO
Open in the right side wire harness; replace the right side wire harness, then clear the DTC.
