DTC B0028-13: Open or Increased Resistance in the Front Passenger's Side Airbag Inflator (2015-17)

Special Tools Required:

SRS Inflator Simulator 07SAZ-TB4011A

SRS Simulator Lead L 070AZ-SNAA300

NOTE:

Before doing this troubleshooting procedure:

• Find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number, and that they were properly installed - Refer to: SRS Component Replacement/Inspection After Deployment .
• Review SRS Precautions and Procedures .
• Review General Troubleshooting Information
• Review information pertaining to 12 Volt Battery Terminal Disconnection and Reconnection

DTC (SRS)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 3. Check for DTCs with the HDS.

   DTC Description
   B0028-13 Open or increased resistance in the front passenger's side airbag inflator

   Is DTC B0028-13 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures - Refer to: How to Troubleshoot the SRS . If another DTC is indicated, troubleshoot the DTC.

2. Front passenger's side airbag inflator check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

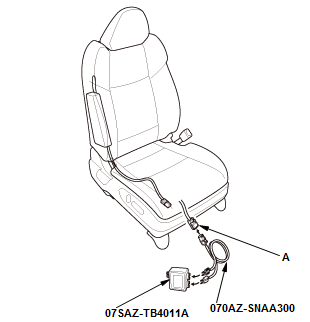

   - 3. Disconnect the front passenger's side airbag inflator 2P connector (A) on the right side wire harness.

   Courtesy of HONDA, U.S.A., INC.

   - 4. Connect the terminals of SRS simulator lead L to the SRS inflator simulator (2 Ω connectors), then connect SRS simulator lead L to the front passenger's side airbag inflator 2P connector on the right side wire harness.

   - 5. Reconnect the negative cable to the 12 volt battery.

   - 6. Clear the DTCs with the HDS.

   - 7. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 8. Check for DTCs with the HDS.

   DTC Description
   B0028-13 Open or increased resistance in the front passenger's side airbag inflator

   Is DTC B0028-13 indicated?

   YES

   Go to step 3.

   NO

   Open in the front passenger's side airbag inflator; replace the front passenger's side airbag , then clear the DTC.

3. Open wire check (RSA+, RSA- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

   - 3. Disconnect the following connector.

   SRS unit connector B (39P)

   - 4. Disconnect the SRS inflator simulator from SRS simulator lead L. Do not disconnect SRS simulator lead L from the front passenger's side airbag inflator 2P connector on the right side wire harness.

   - 5. Measure the resistance of the test point.

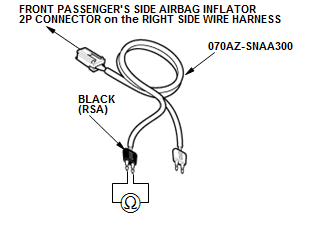

   Test condition	Vehicle OFF (LOCK) mode
   	Front passenger's side airbag inflator 2P connector (on the right side wire harness): disconnected
   	SRS unit connector B (39P): disconnected
   	Front passenger's side airbag inflator 2P connector (on the right side wire harness): connected to SRS simulator lead L
   Test point	SRS simulator lead L black terminal

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The RSA+ and RSA- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit - Refer to: SRS Unit Removal and Installation . If the DTC does not clear, replace the right side wire harness.

   NO

   Open in the right side wire harness; replace the right side wire harness, then clear the DTC.
