DTC B0001-11: Short to Ground in the Driver's Airbag First Inflator (2015-17)
Special Tools Required:
SRS Inflator Simulator 07SAZ-TB4011A
SRS Simulator Lead J 070AZ-SNAA100
NOTE:
Before doing this troubleshooting procedure:
- Find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number, and that they were properly installed - Refer to: SRS Component Replacement/Inspection After Deployment .
- Review SRS Precautions and Procedures .
- Review General Troubleshooting Information
- Review information pertaining to 12 Volt Battery Terminal Disconnection and Reconnection
Before replacing the SRS unit:
- Check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.
| DTC Description | DTC |
|---|---|
| B0001-11 Short to ground in the driver's airbag first inflator |
DTC (SRS)
- Problem verification
-1. Clear the DTCs with the HDS.
- 2. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 3. Check for DTCs with the HDS.
DTC Description DTC B0001-11 Short to ground in the driver's airbag first inflator Is DTC B0001-11 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures - Refer to: How to Troubleshoot the SRS . If another DTC is indicated, troubleshoot the DTC.
- Driver's airbag inflator check
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- 3. Remove the driver's airbag.
- 4. Disconnect the following connector.

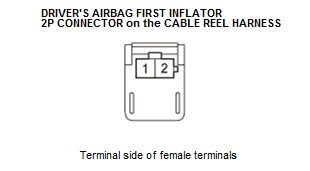

Driver's airbag first inflator 2P connector (on the cable reel harness) NOTE: Make sure to work with the driver's airbag first inflator 2P connector (A) that has a guide tab (B) on the right side of the No. 2 terminal as shown.

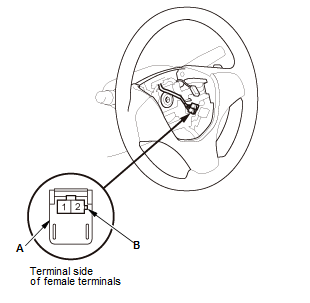

- 5. Connect terminals A and B with a jumper wire.
Terminal A Driver's airbag first inflator 2P connector No. 1 (on the cable reel harness) Terminal B Driver's airbag first inflator 2P connector No. 2 (on the cable reel harness) - 6. Reconnect the negative cable to the 12 volt battery.
- 7. Clear the DTCs with the HDS.
- 8. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 9. Check for DTCs with the HDS.
DTC Description DTC B0001-11 Short to ground in the driver's airbag first inflator Is DTC B0001-11 indicated?
YES
Go to step 3.
NO
Short to ground in the driver's airbag first inflator; replace the driver's airbag , then clear the DTC.
- Cable reel check
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- 3. Remove the jumper wire from the driver's airbag first inflator 2P connector on the cable reel harness.
- 4. Remove the column covers.
- 5. Disconnect cable reel connector B (4P) on the dashboard wire harness.

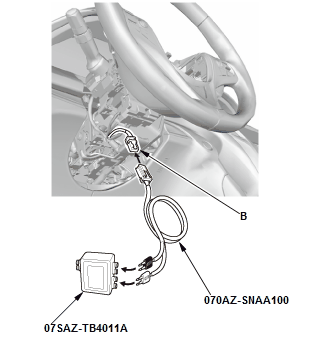

- 6. Connect the terminals of SRS simulator lead J to the SRS inflator simulator (2 Ω connectors), then connect SRS simulator lead J to cable reel connector B (4P) on the dashboard wire harness.
- 7. Reconnect the negative cable to the 12 volt battery.
- 8. Clear the DTCs with the HDS.
- 9. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 10.Check for DTCs with the HDS - Refer to: How to Troubleshoot the SRS .
DTC Description DTC B0001-11 Short to ground in the driver's airbag first inflator Is DTC B0001-11 indicated?
YES
Go to step 4.
NO
Short to ground in the cable reel; replace the cable reel , then clear the DTC.
- Shorted wire check (LA1+, LA1- lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- 3. Disconnect the following connector.
SRS unit connector A (39P) - 4. Disconnect the SRS inflator simulator from SRS simulator lead J. Do not disconnect SRS simulator lead J from cable reel connector B (4P) on the dashboard wire harness.

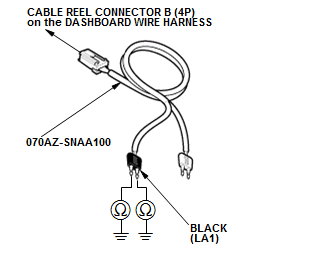

- 5. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Driver's airbag first inflator 2P connector (on the cable reel harness): disconnected Cable reel connector B (4P) (on the dashboard wire harness): disconnected SRS unit connector A (39P): disconnected Cable reel connector B (4P) (on the dashboard wire harness): connected to SRS simulator lead J Test point 1 SRS simulator lead J black terminal Test point 2 Body ground Is there an open circuit, or at least 1 MΩ?
YES
The LA1+ and LA1- wires are OK. Faulty SRS unit or poor connection at SRS unit connector A (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit - Refer to: SRS Unit Removal and Installation . If the DTC does not clear, replace the dashboard wire harness.
NO
Short to ground in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.
