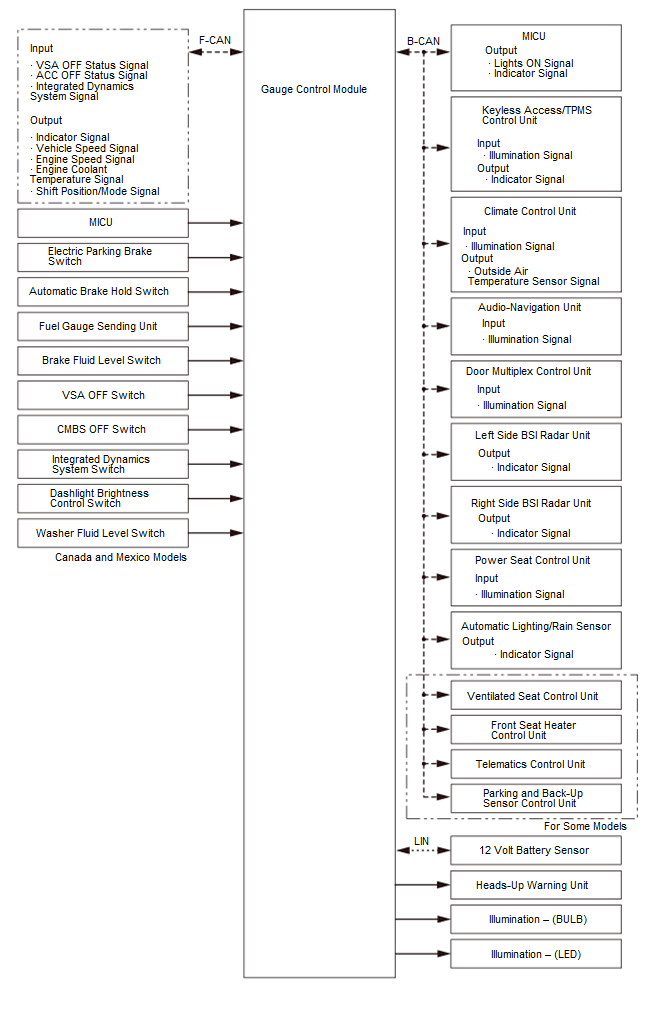

Gauges System Description - System Diagram (Without SH-AWD) (2015-17)

GHH162155

Courtesy of HONDA, U.S.A., INC.
