Description
>>

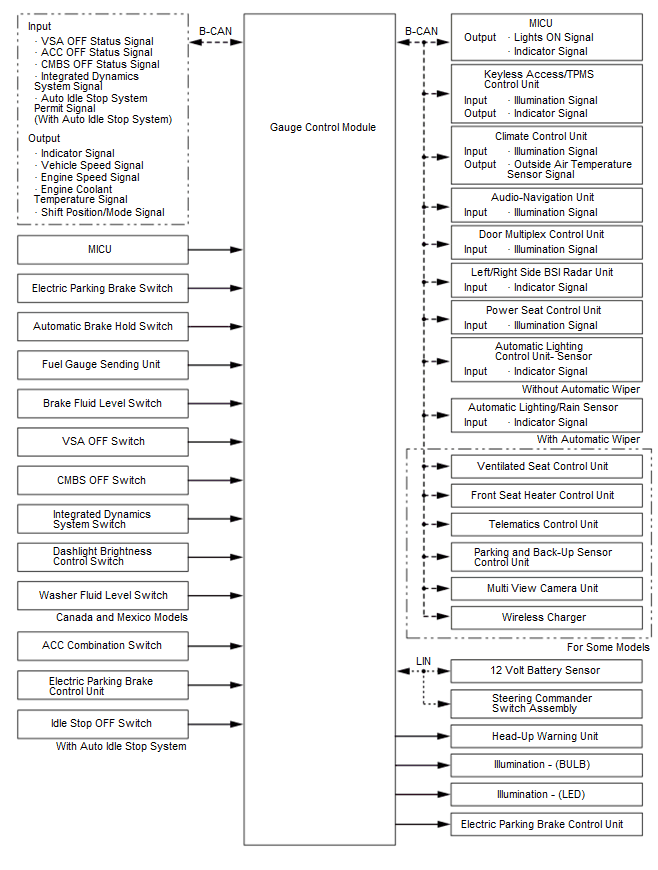

Gauges System Description - System Diagram (2018-19)
Gauges System Description - System Diagram (2018-19)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
