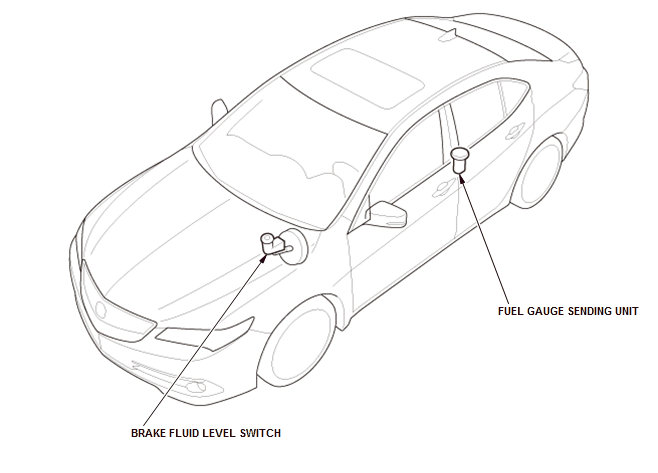

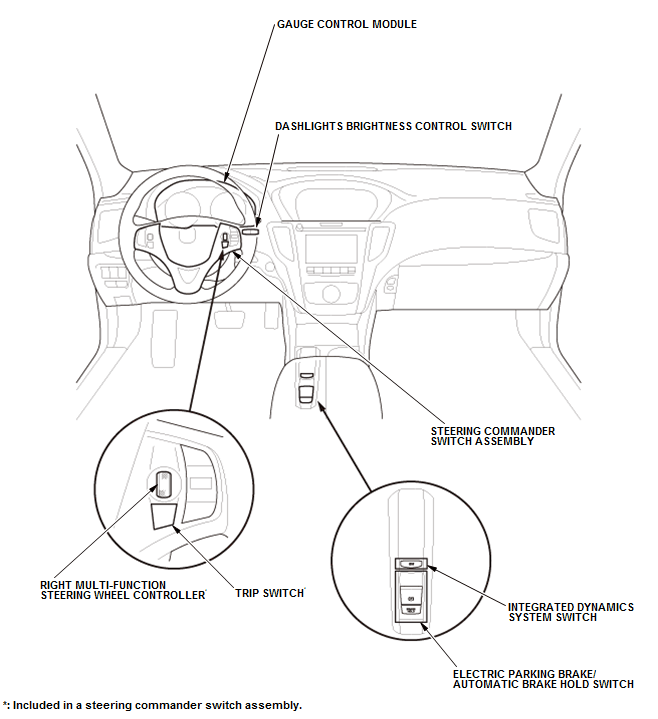

Gauges System Description - Overview (Without SH-AWD)

The gauge control module indicates the speedometer, the fuel gauge, the shift position indicator, and the several indicators. Also, the gauge control module has multi-information display (MID) which informs the driver of various vehicle conditions.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

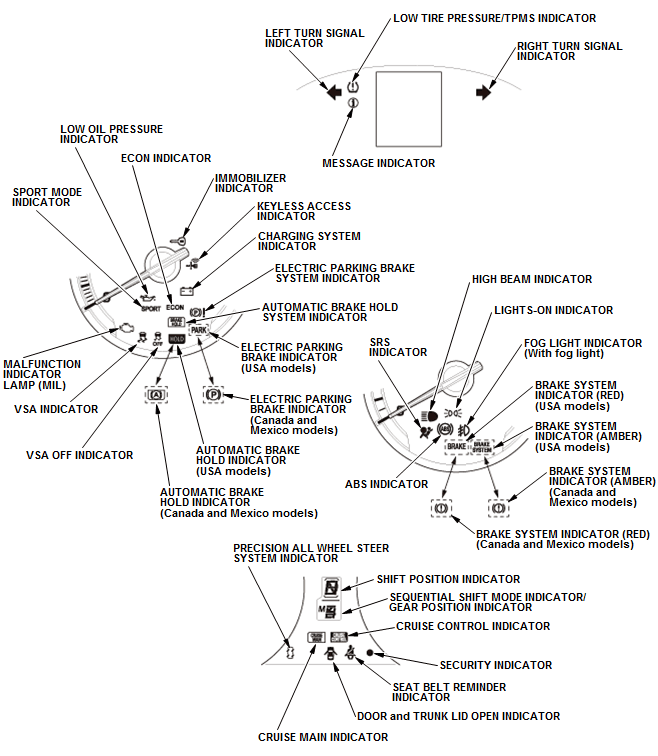

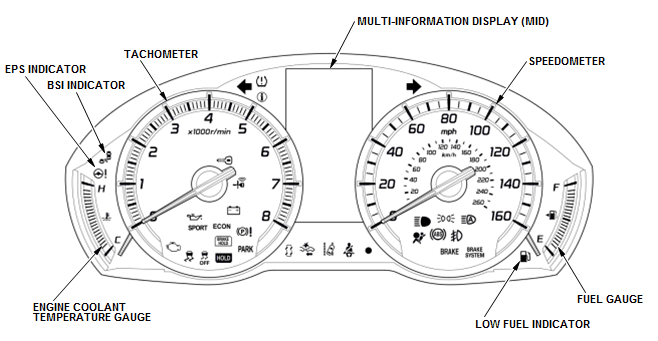

Without Color Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

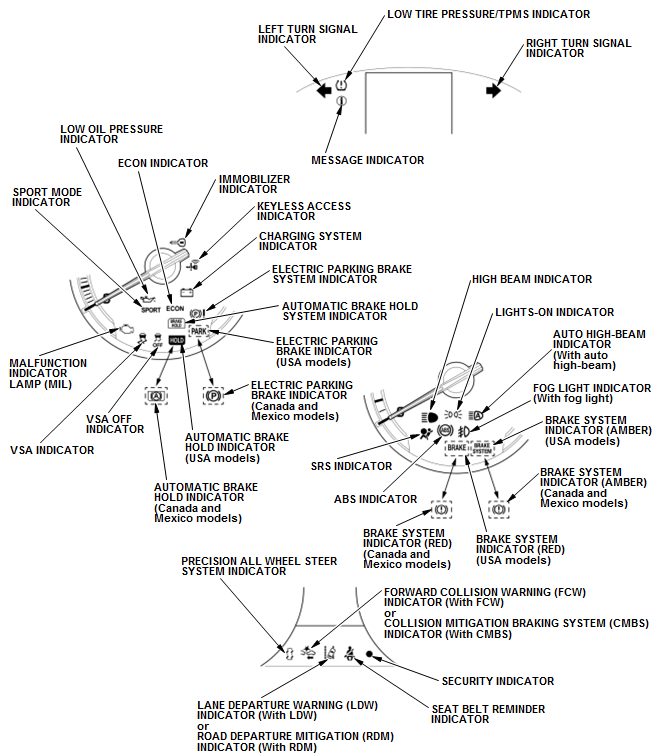

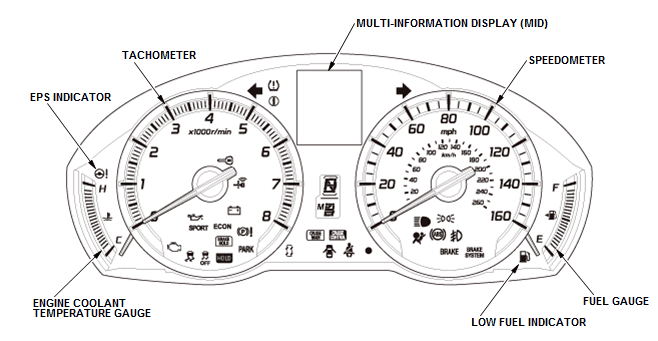

With Color Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
