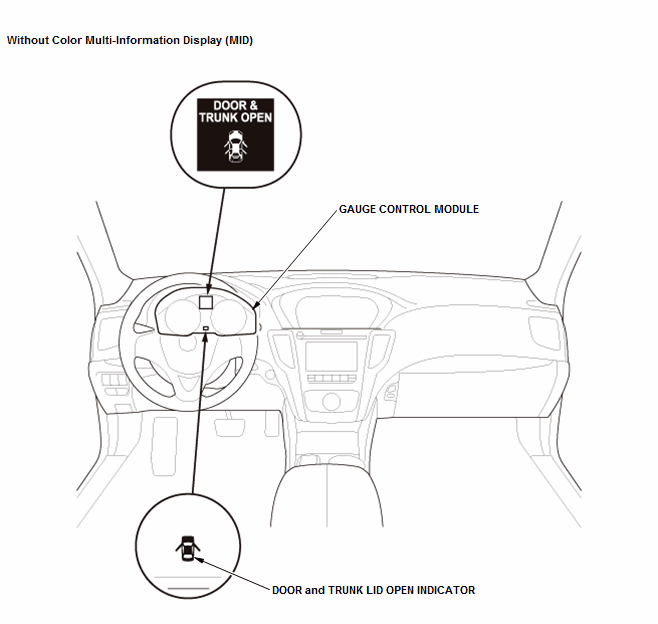

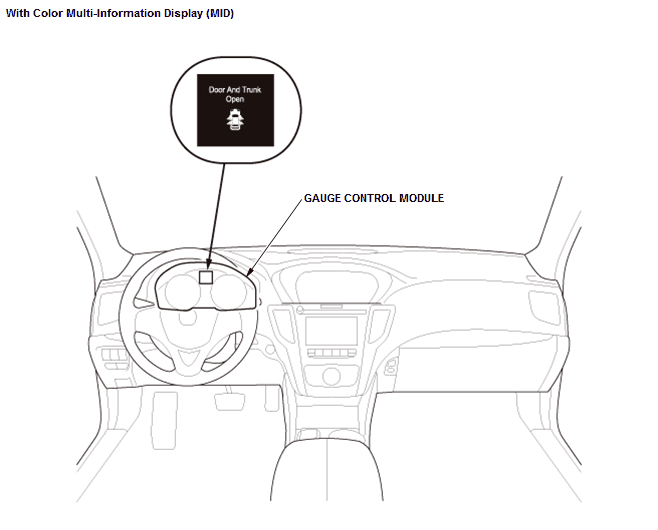

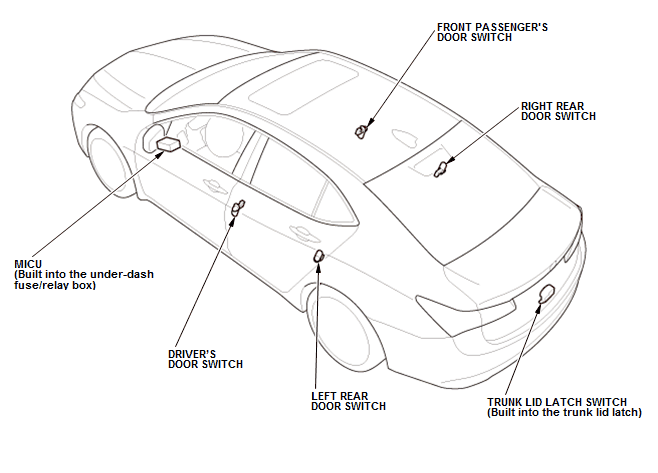

Safety Indicator System Component Location Index

GHH162181

Courtesy of HONDA, U.S.A., INC.

GHH162182

Courtesy of HONDA, U.S.A., INC.

GHH162183

Courtesy of HONDA, U.S.A., INC.
