Parking And Back-Up Sensor System Component Location Index (2015-17)

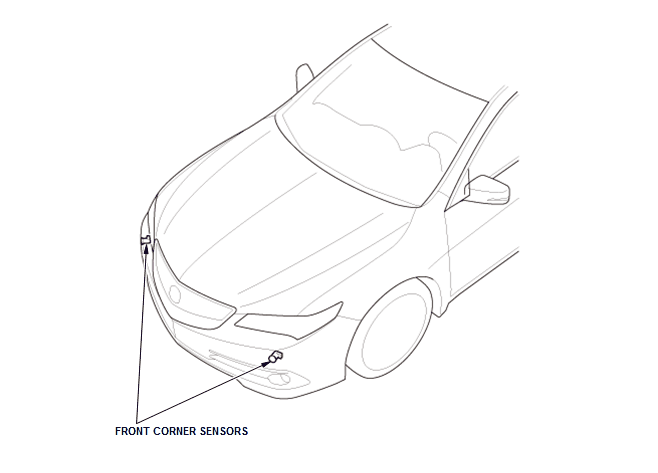

GHH162177

Courtesy of HONDA, U.S.A., INC.

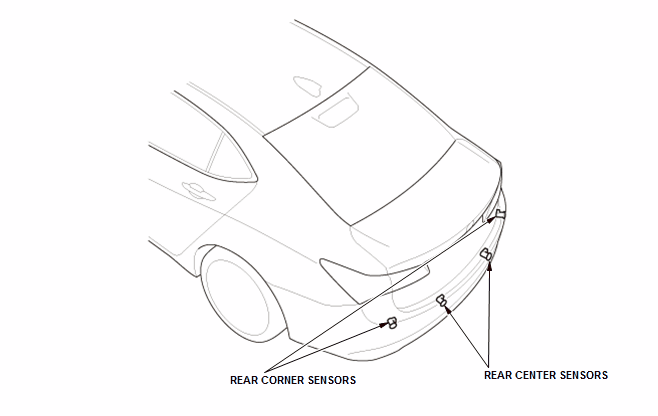

GHH162178

Courtesy of HONDA, U.S.A., INC.

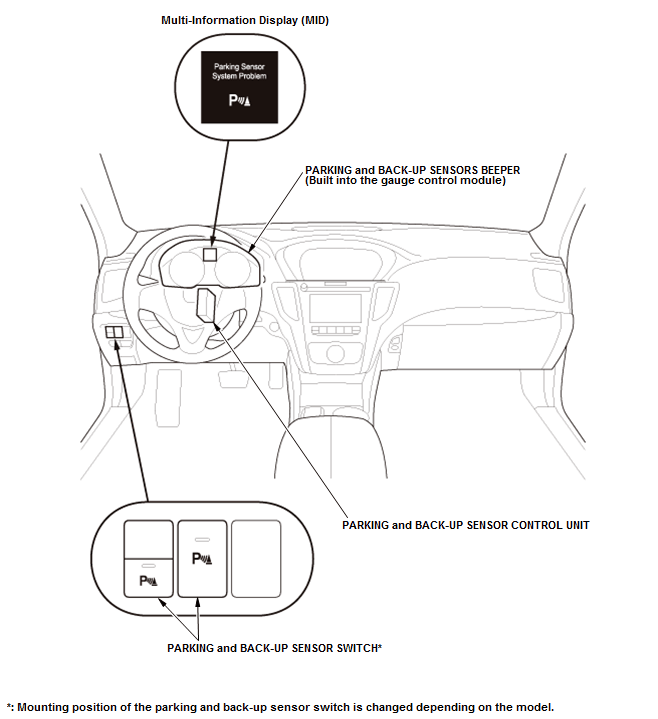

GHH162179

Courtesy of HONDA, U.S.A., INC.
