Reminder Systems Circuit Diagram (Without SH-AWD) (2018-19)

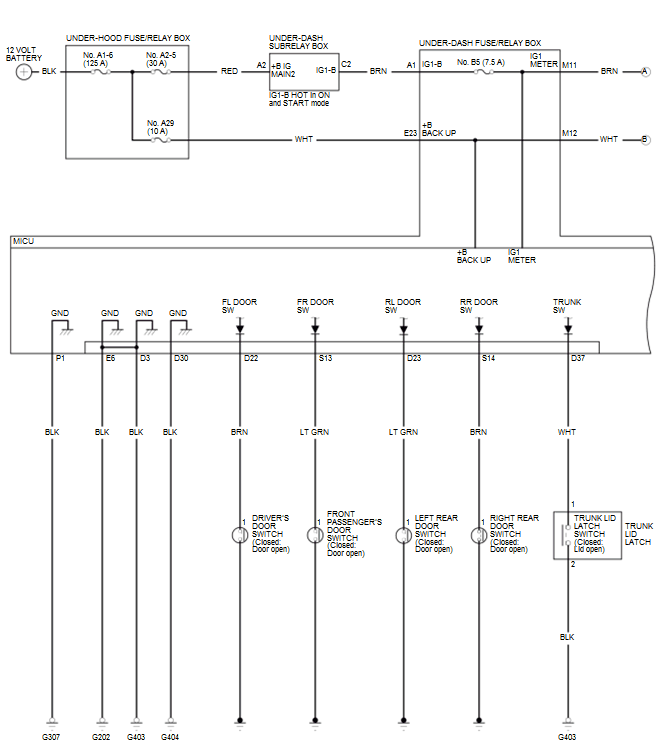

GHH201439

Courtesy of HONDA, U.S.A., INC.

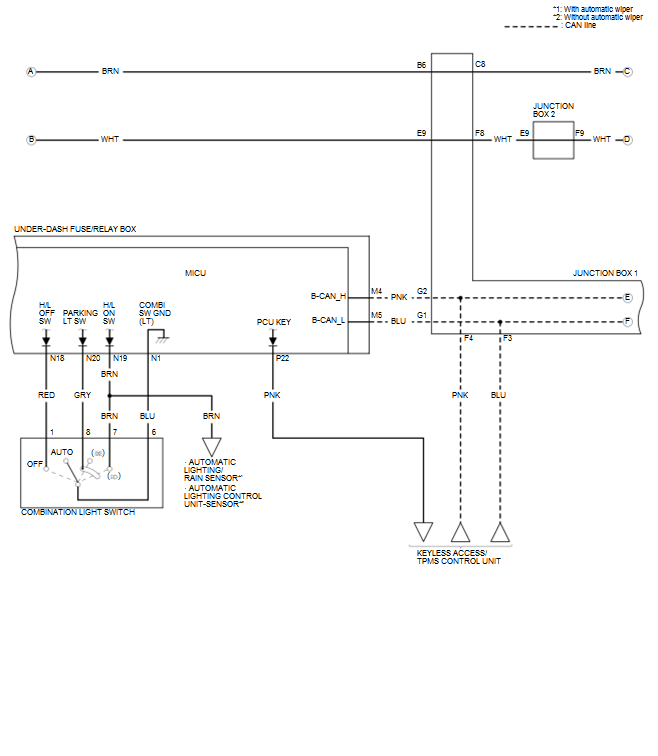

GHH201440

Courtesy of HONDA, U.S.A., INC.

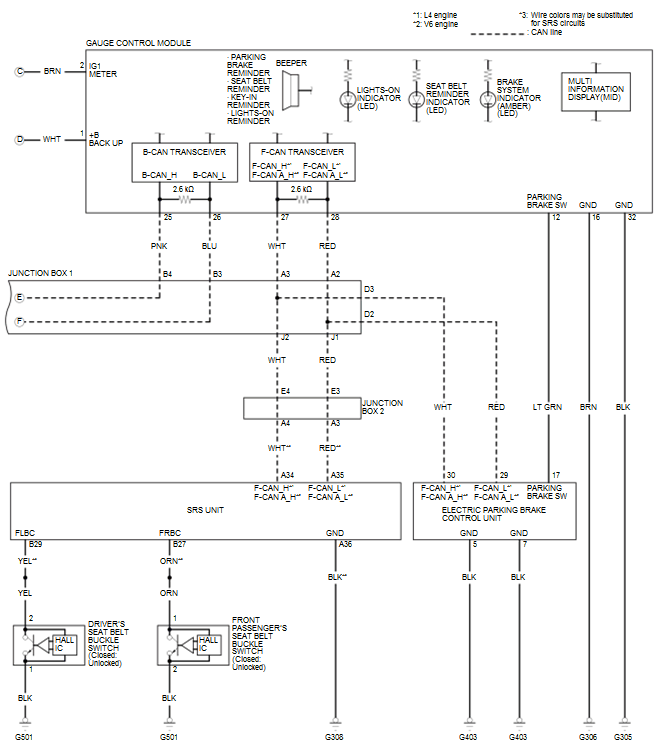

GHH201441

Courtesy of HONDA, U.S.A., INC.
