Reminder Systems Circuit Diagram (Without SH-AWD) (2015-17)

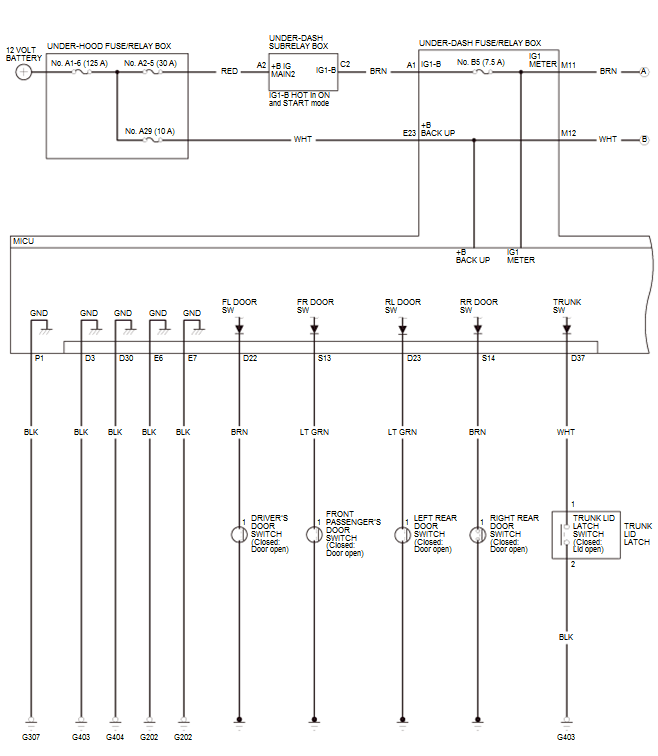

GHH162203

Courtesy of HONDA, U.S.A., INC.

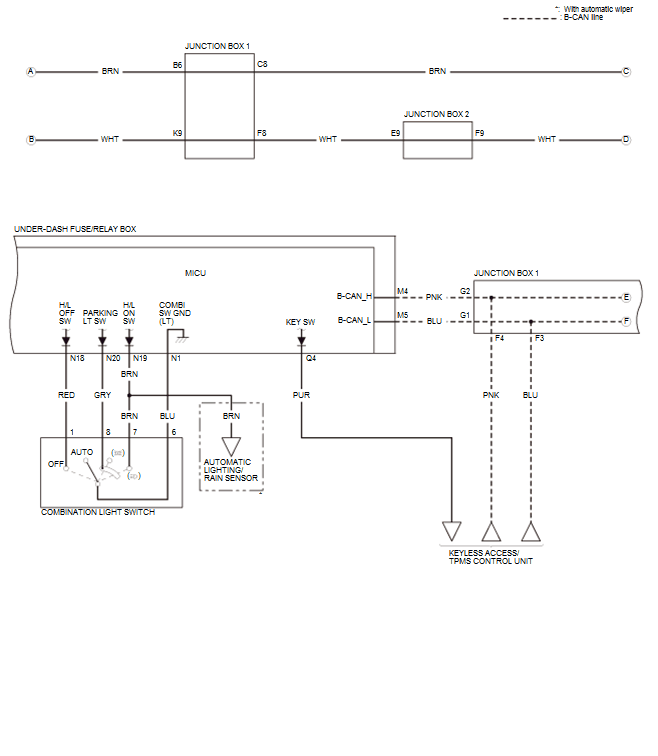

GHH162204

Courtesy of HONDA, U.S.A., INC.

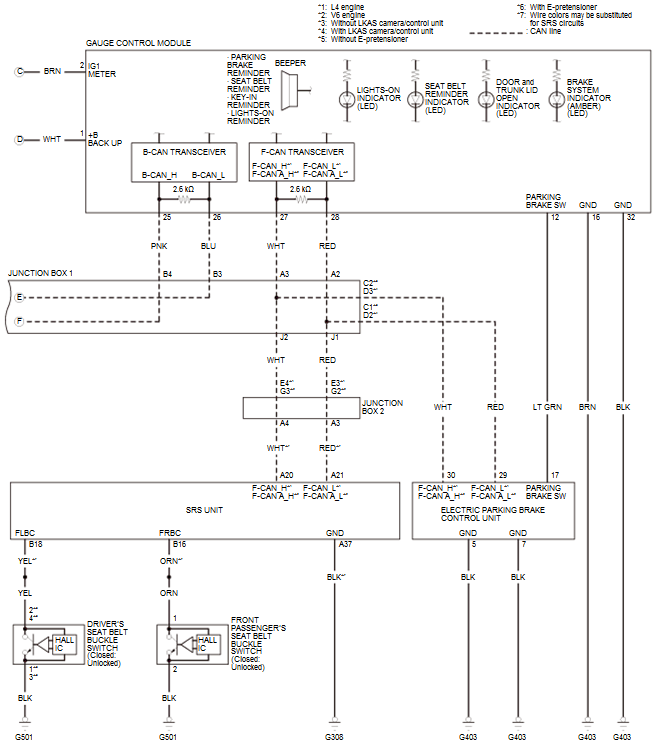

GHH162205

Courtesy of HONDA, U.S.A., INC.
