Reminder Systems Circuit Diagram (With SH-AWD) (2018-19)

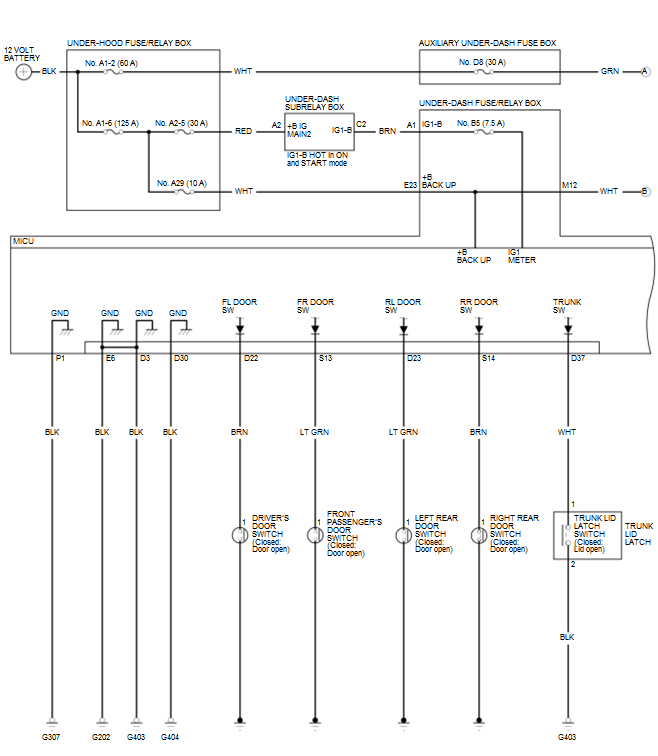

GHH201436

Courtesy of HONDA, U.S.A., INC.

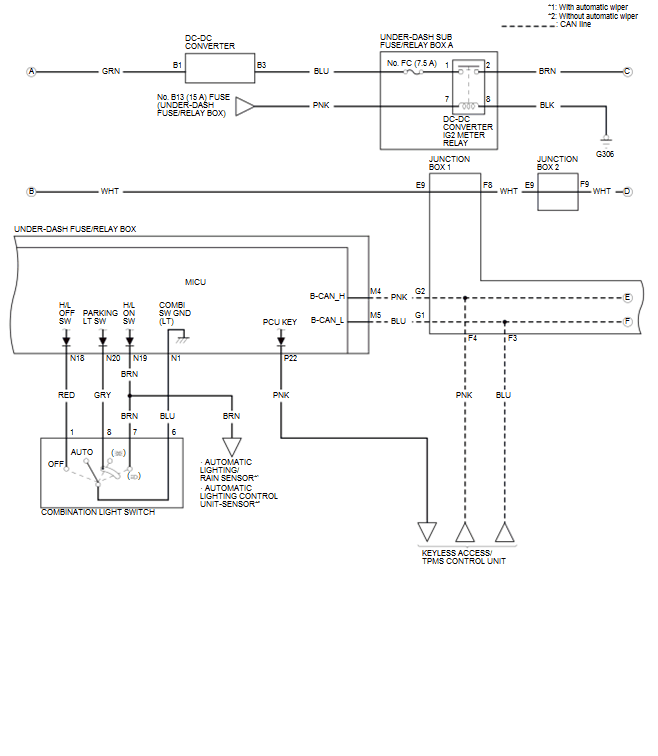

GHH201437

Courtesy of HONDA, U.S.A., INC.

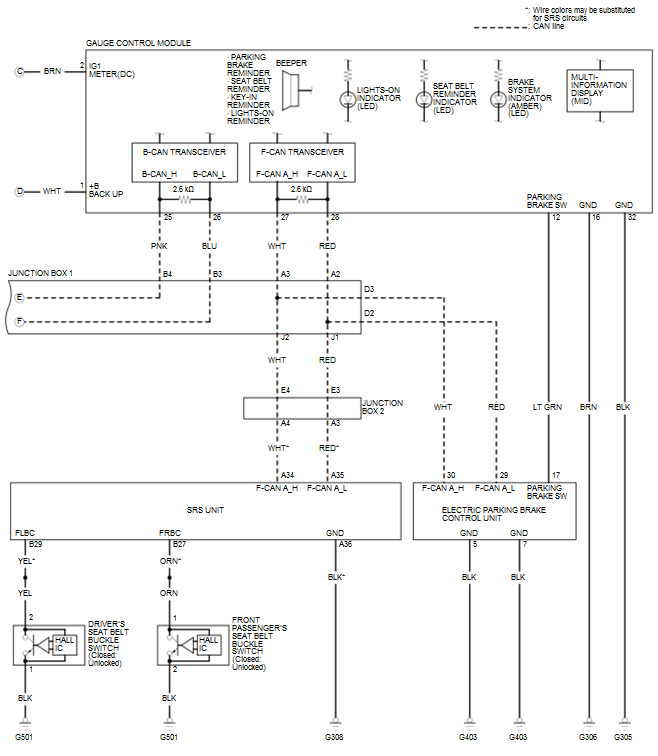

GHH201438

Courtesy of HONDA, U.S.A., INC.
