Parking And Back-Up Sensor System Circuit Diagram (Without SH-AWD) (2018-19)

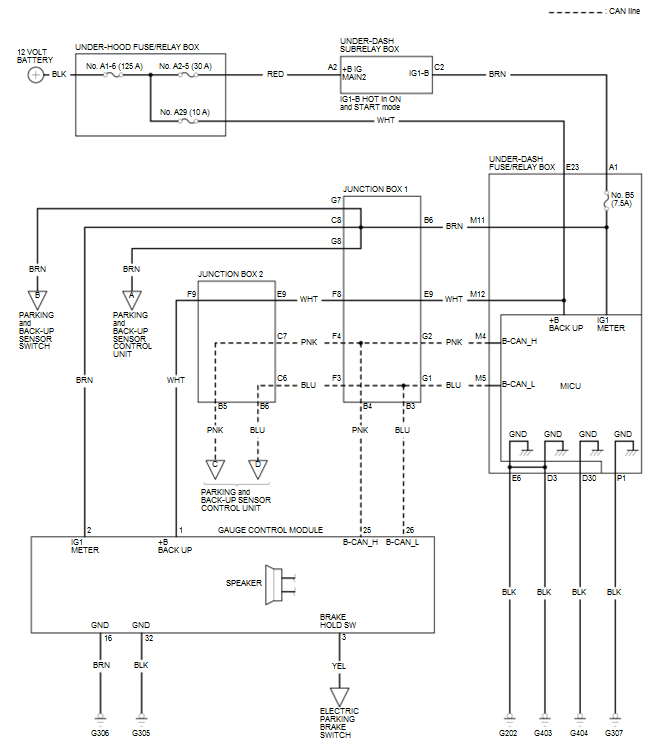

GHH201433

Courtesy of HONDA, U.S.A., INC.

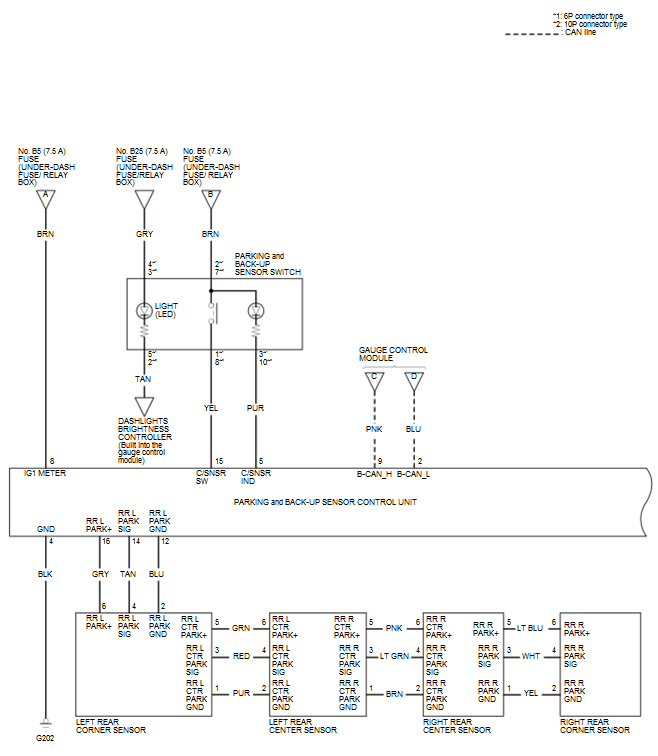

GHH201434

Courtesy of HONDA, U.S.A., INC.

GHH201435

Courtesy of HONDA, U.S.A., INC.
