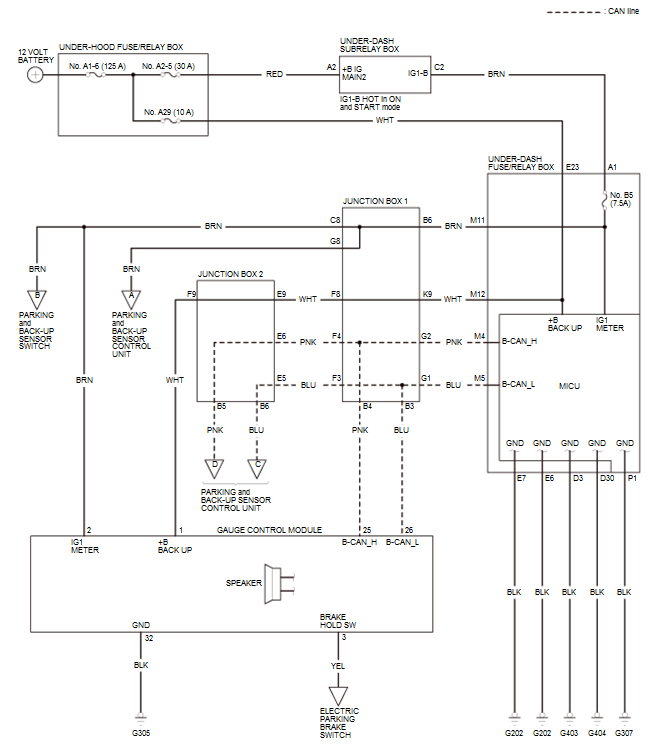

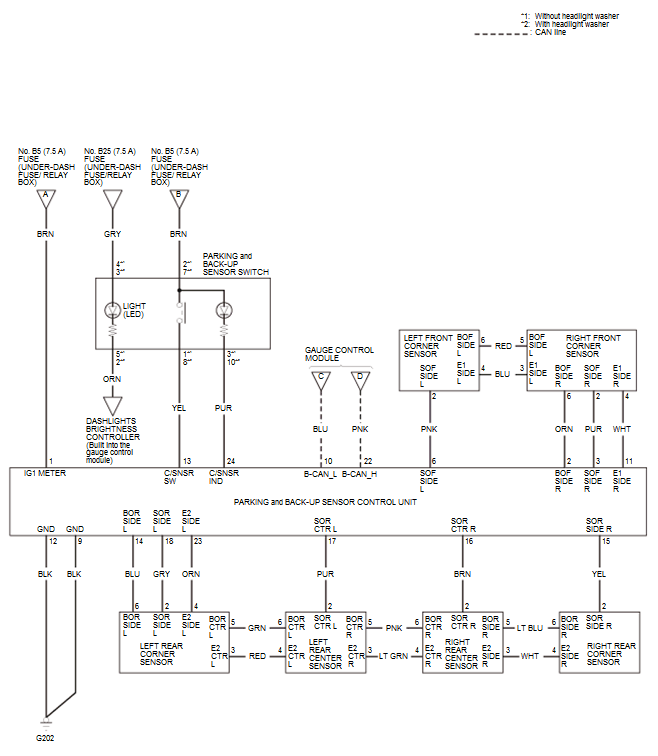

Parking And Back-Up Sensor System Circuit Diagram (Without SH-AWD) (2015-17)
Parking And Back-Up Sensor System Circuit Diagram (Without SH-AWD) (2015-17)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
