Parking And Back-Up Sensor System Circuit Diagram (With SH-AWD) (2018-19)

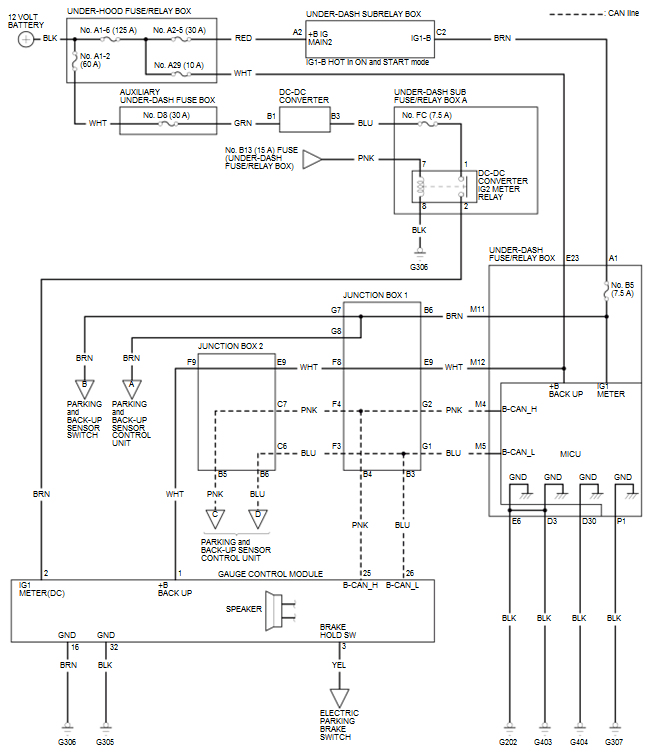

GHH201430

Courtesy of HONDA, U.S.A., INC.

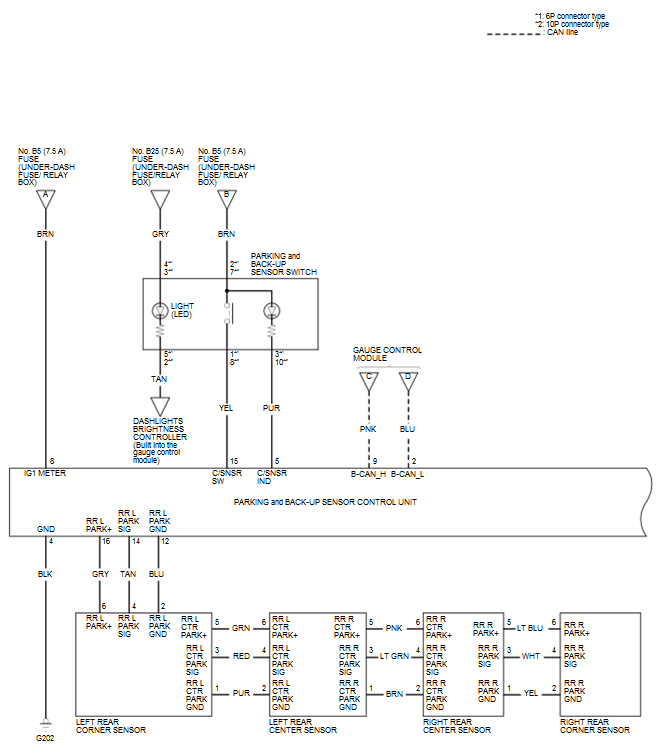

GHH201431

Courtesy of HONDA, U.S.A., INC.

GHH201432

Courtesy of HONDA, U.S.A., INC.
