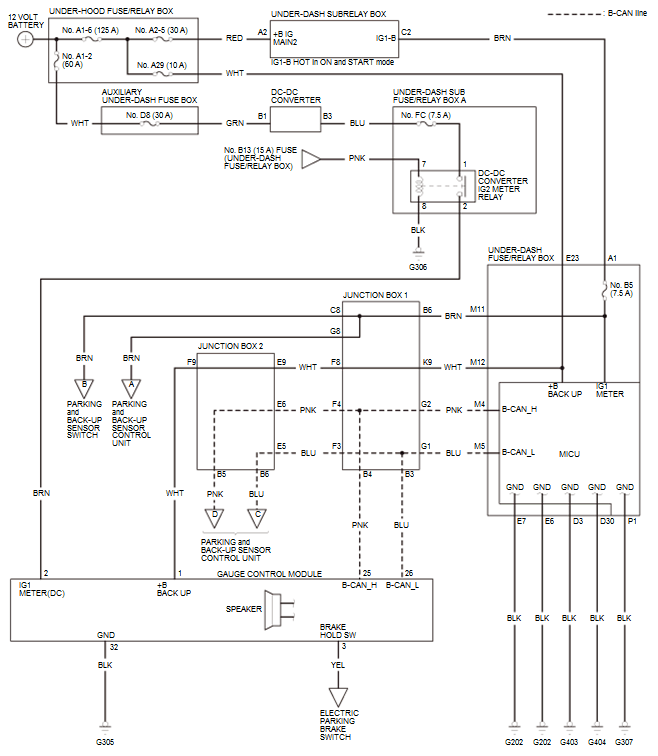

Parking And Back-Up Sensor System Circuit Diagram (With SH-AWD) (2015-17)

GHH162201

Courtesy of HONDA, U.S.A., INC.

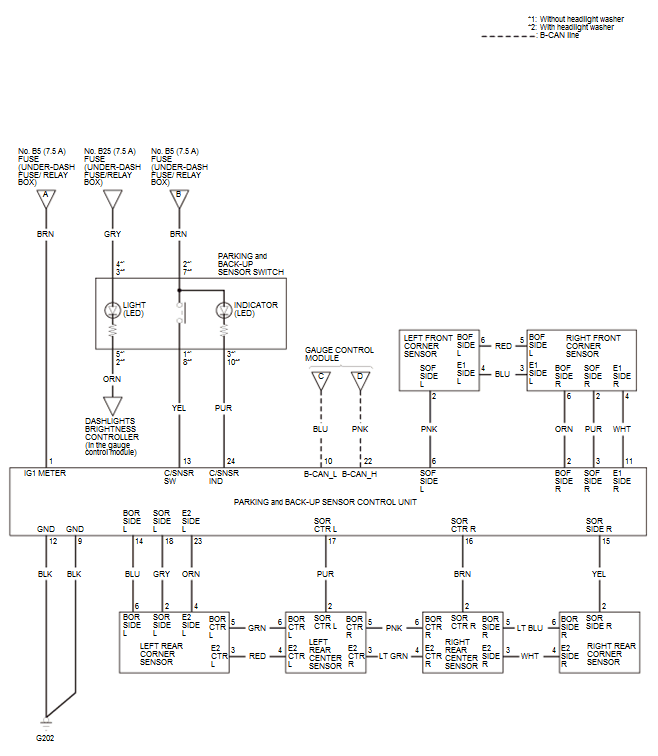

GHH162202

Courtesy of HONDA, U.S.A., INC.
