Gauges System Description - Overview (2018 2019 2020)
The gauge control module indicates the speedometer, the tachometer, the fuel gauge, the shift position indicator, and several other indicators. Also, the gauge control module has multi-information display (MID) which informs the driver of various vehicle conditions.

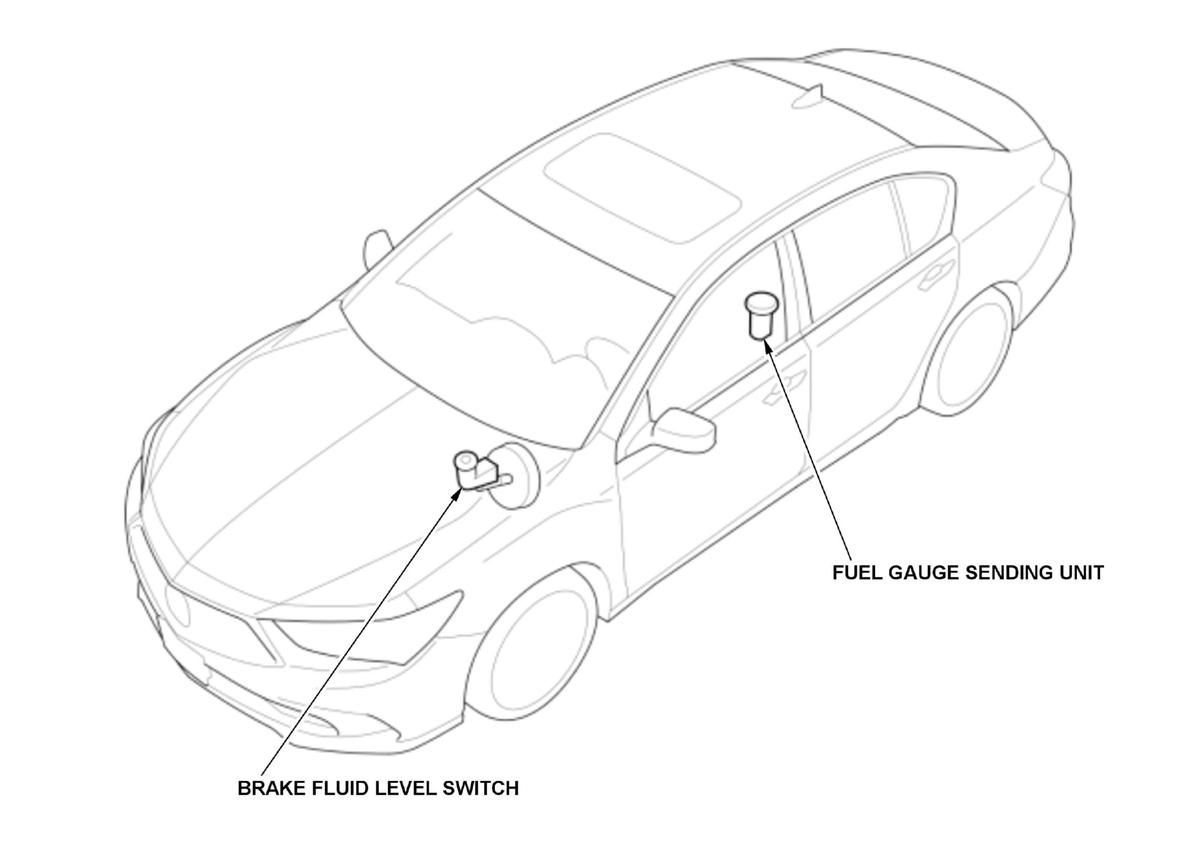

 Courtesy of HONDA, U.S.A., INC.
|

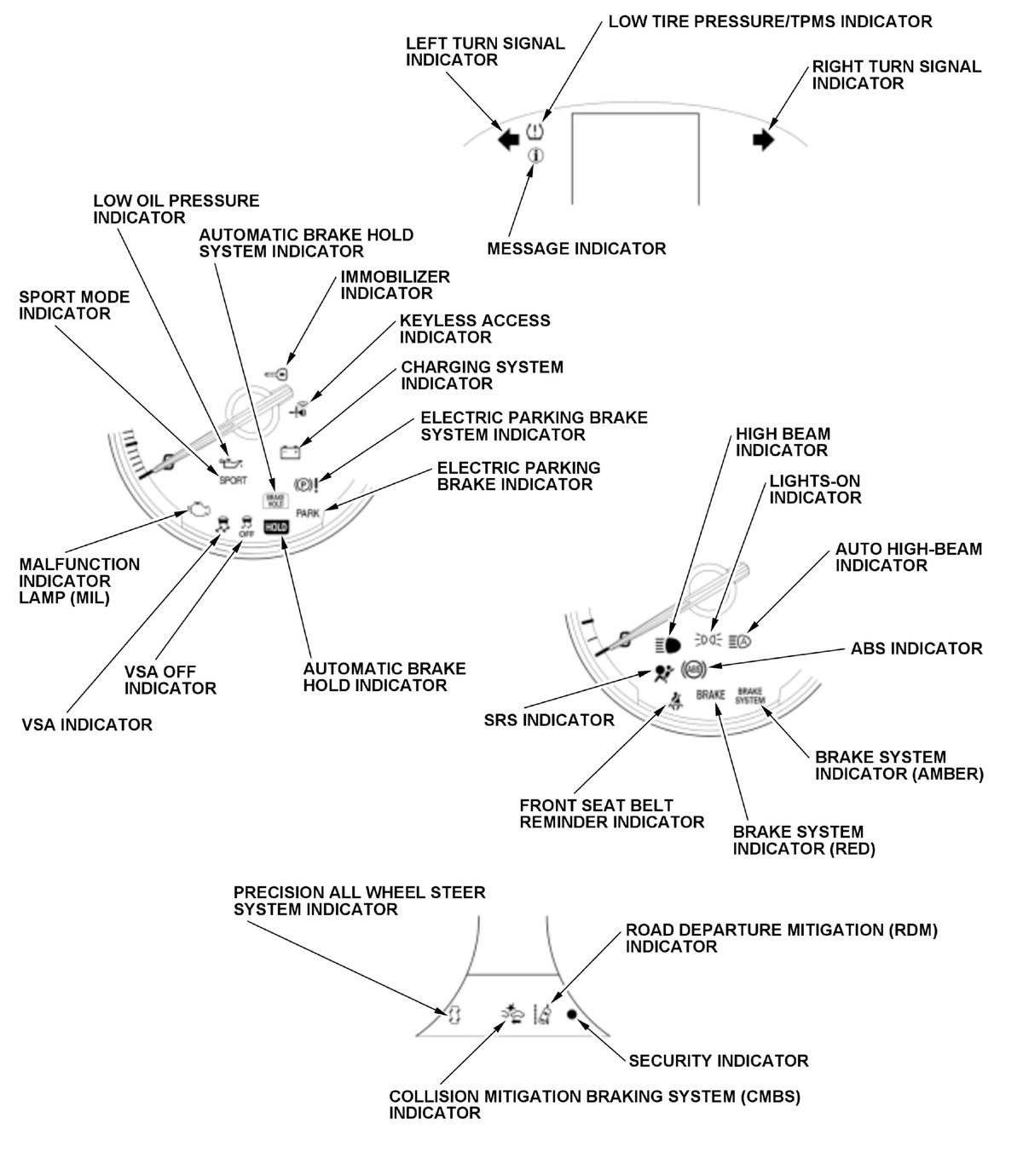

 Courtesy of HONDA, U.S.A., INC.
|

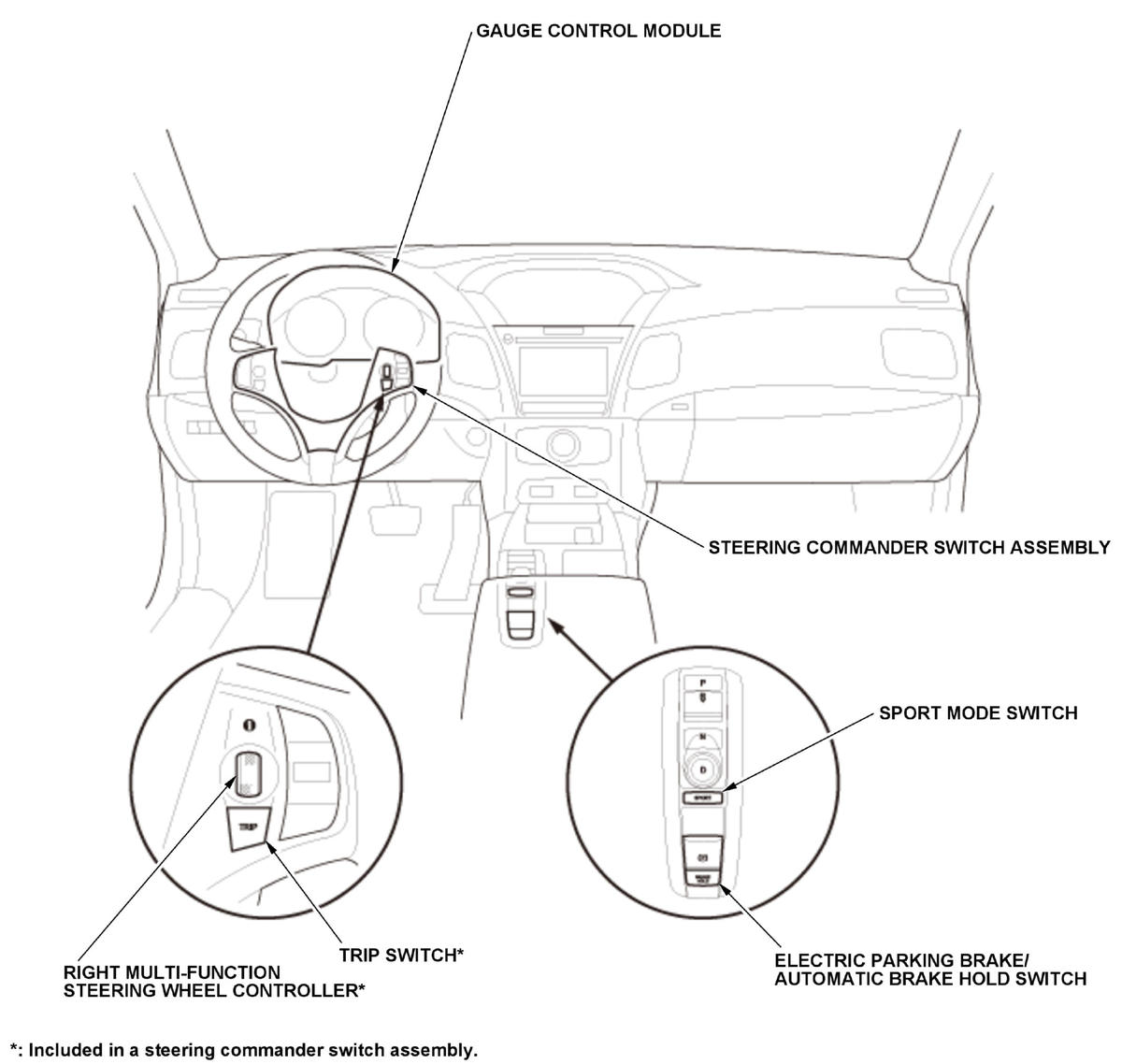

 Courtesy of HONDA, U.S.A., INC.
|

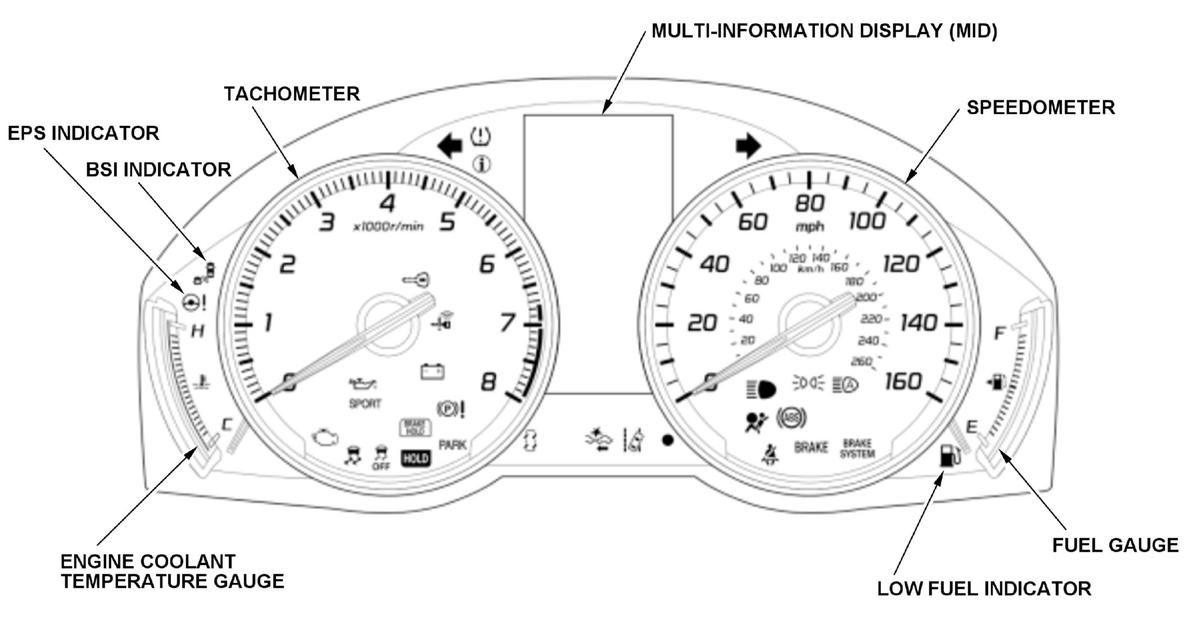

 Courtesy of HONDA, U.S.A., INC.
|
