Gauges System Description - Overview (2016 2017)

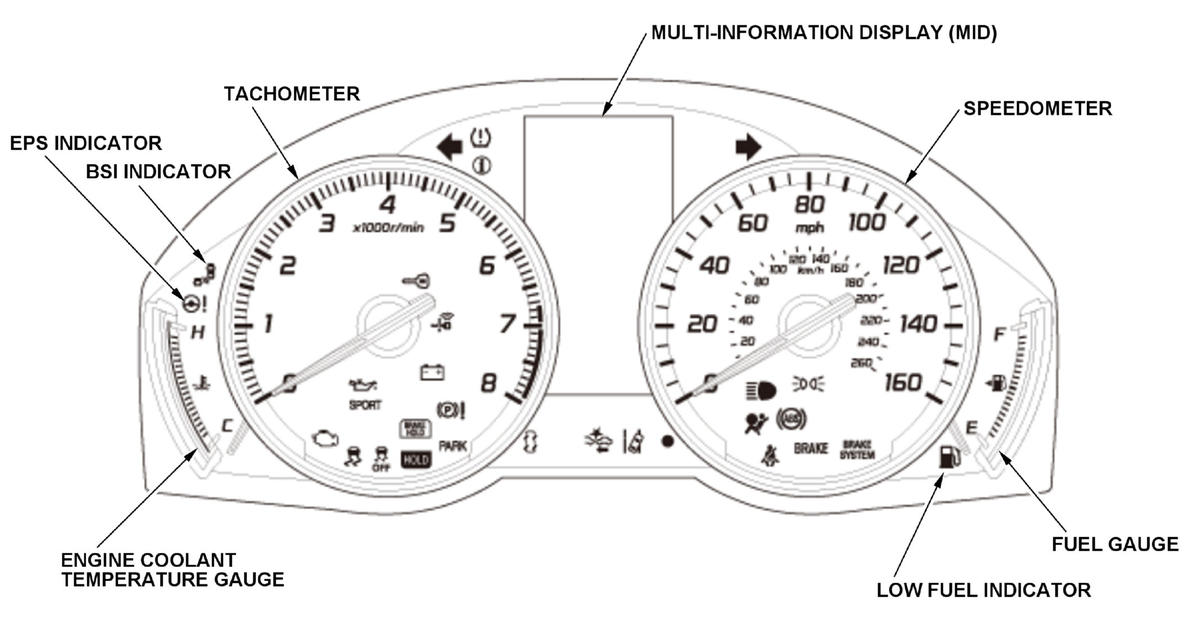

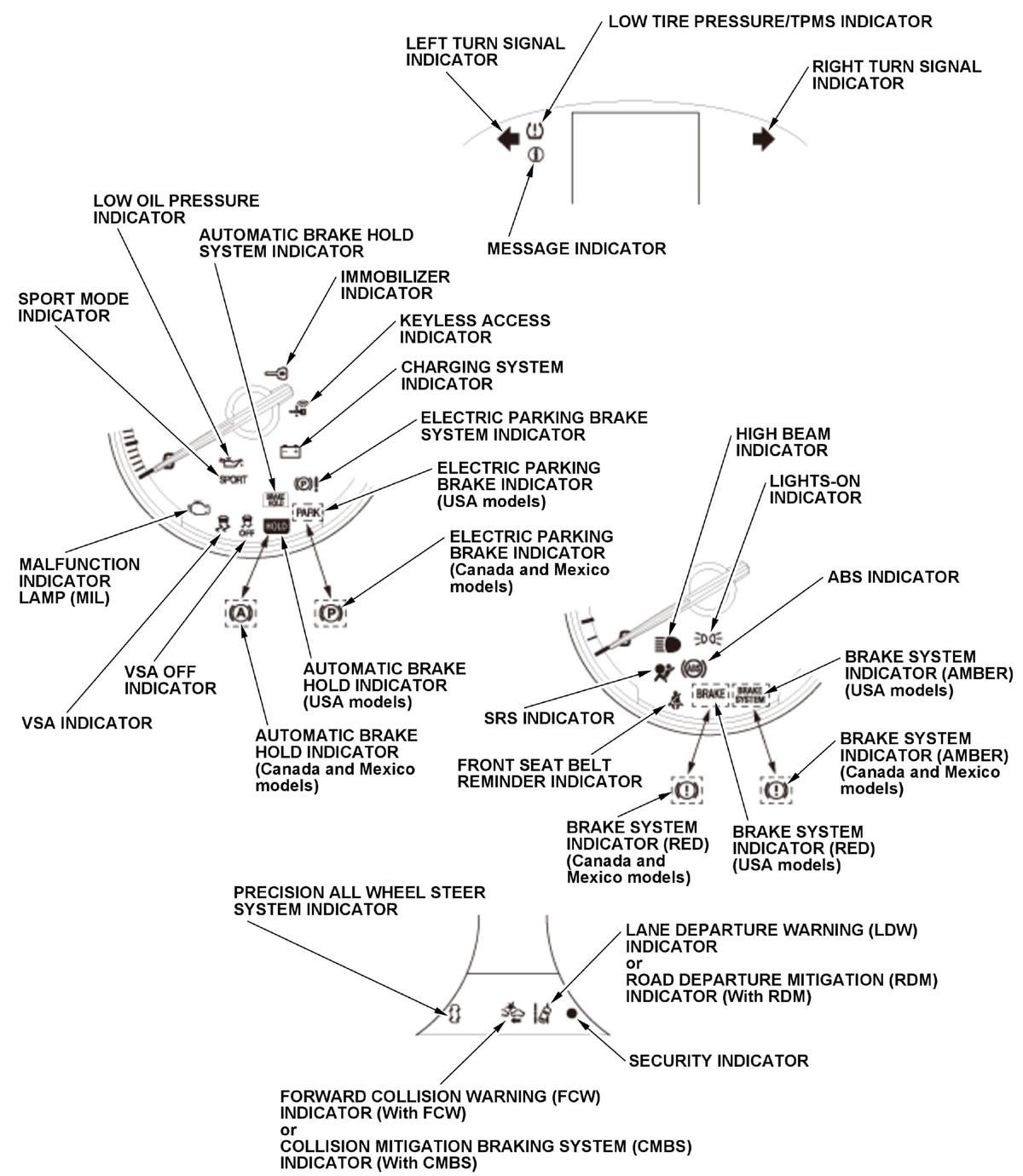

The gauge control module indicates the speedometer, the tachometer, the fuel gauge, the shift position indicator, and several other indicators. Also, the gauge control module has multi-information display (MID) which informs the driver of various vehicle conditions.
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
