Climate Control System Description - Outside Air Temperature Sensor

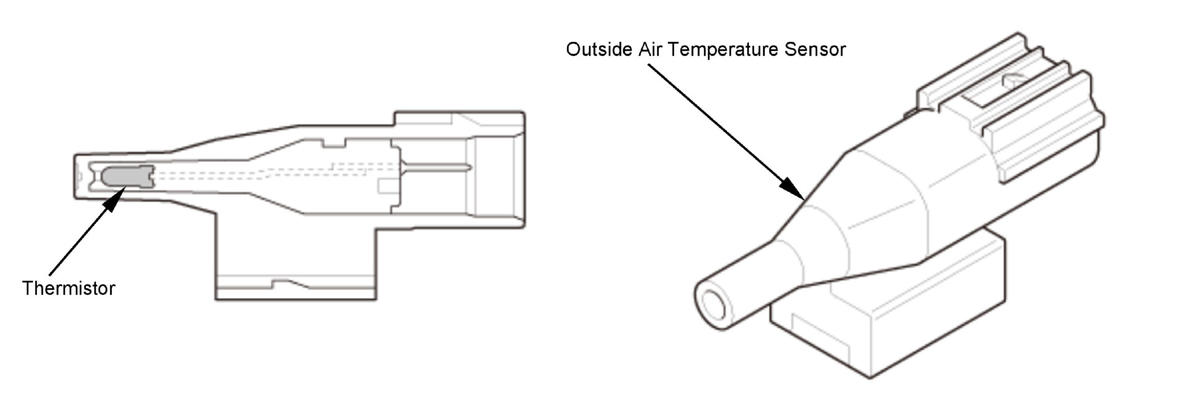

The outside air temperature sensor is installed on the front side of the vehicle, near the A/C condenser.
The outside air temperature sensor uses a sensor that decreases resistance when temperature rises. The climate control unit calculates the outside air temperature based on the information received from the outside air temperature sensor.
NOTE: This illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.
