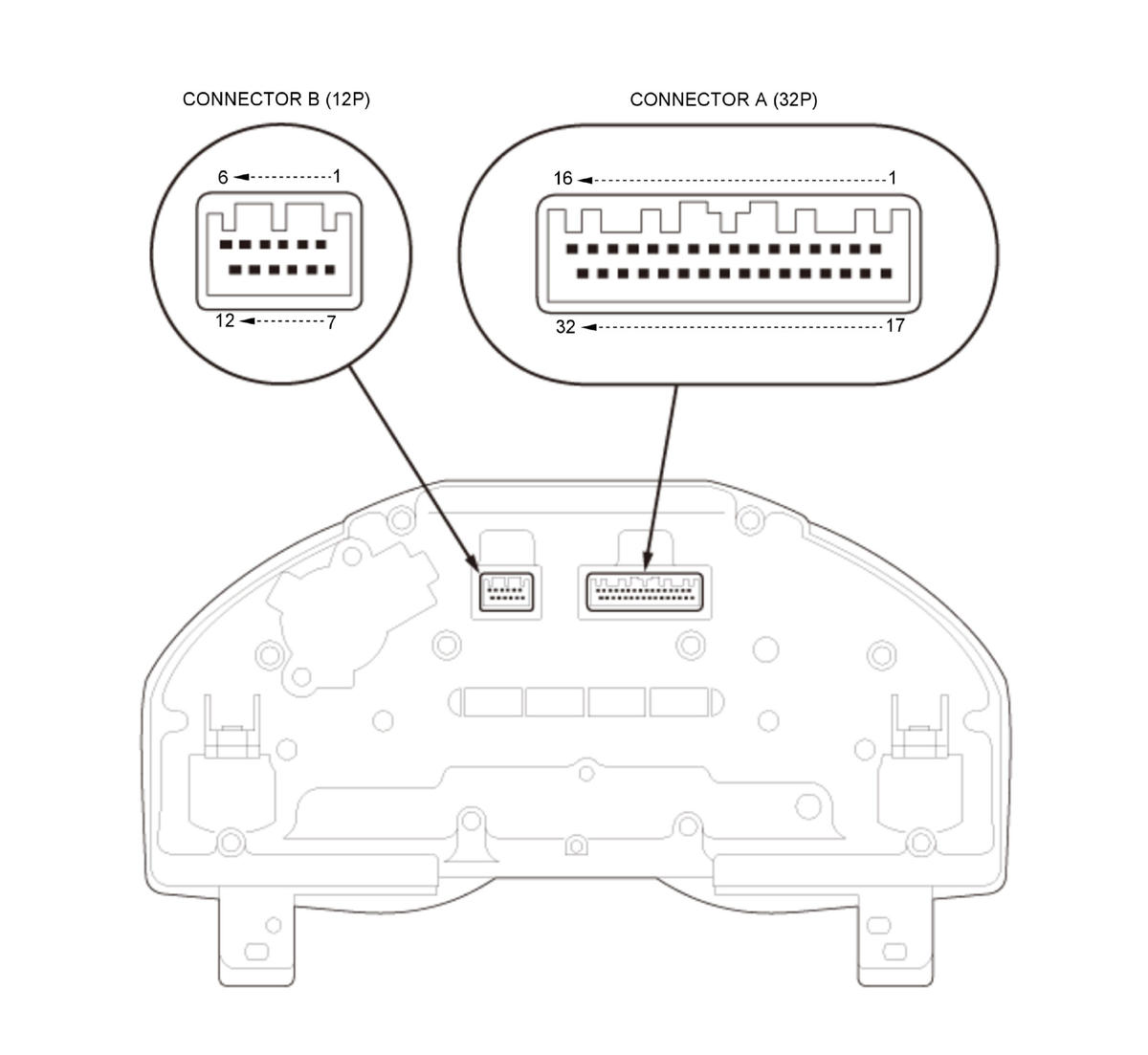

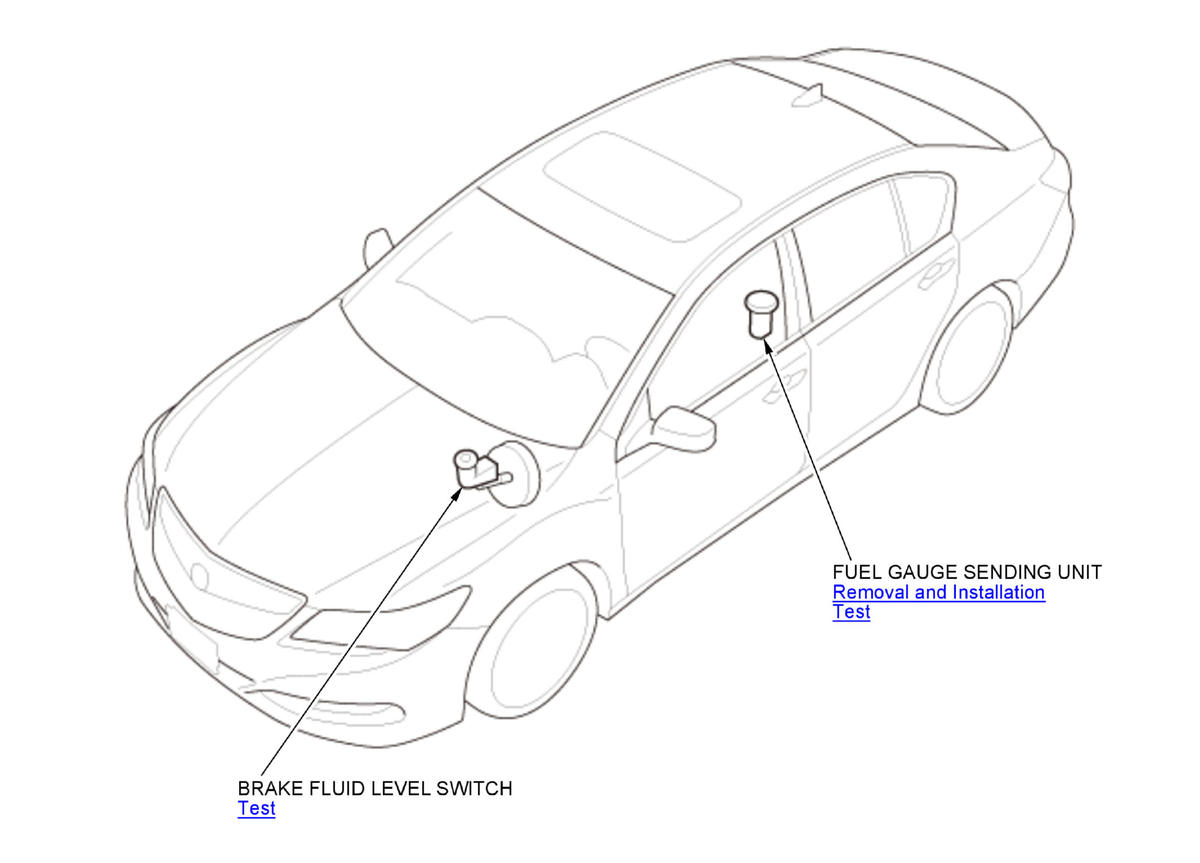

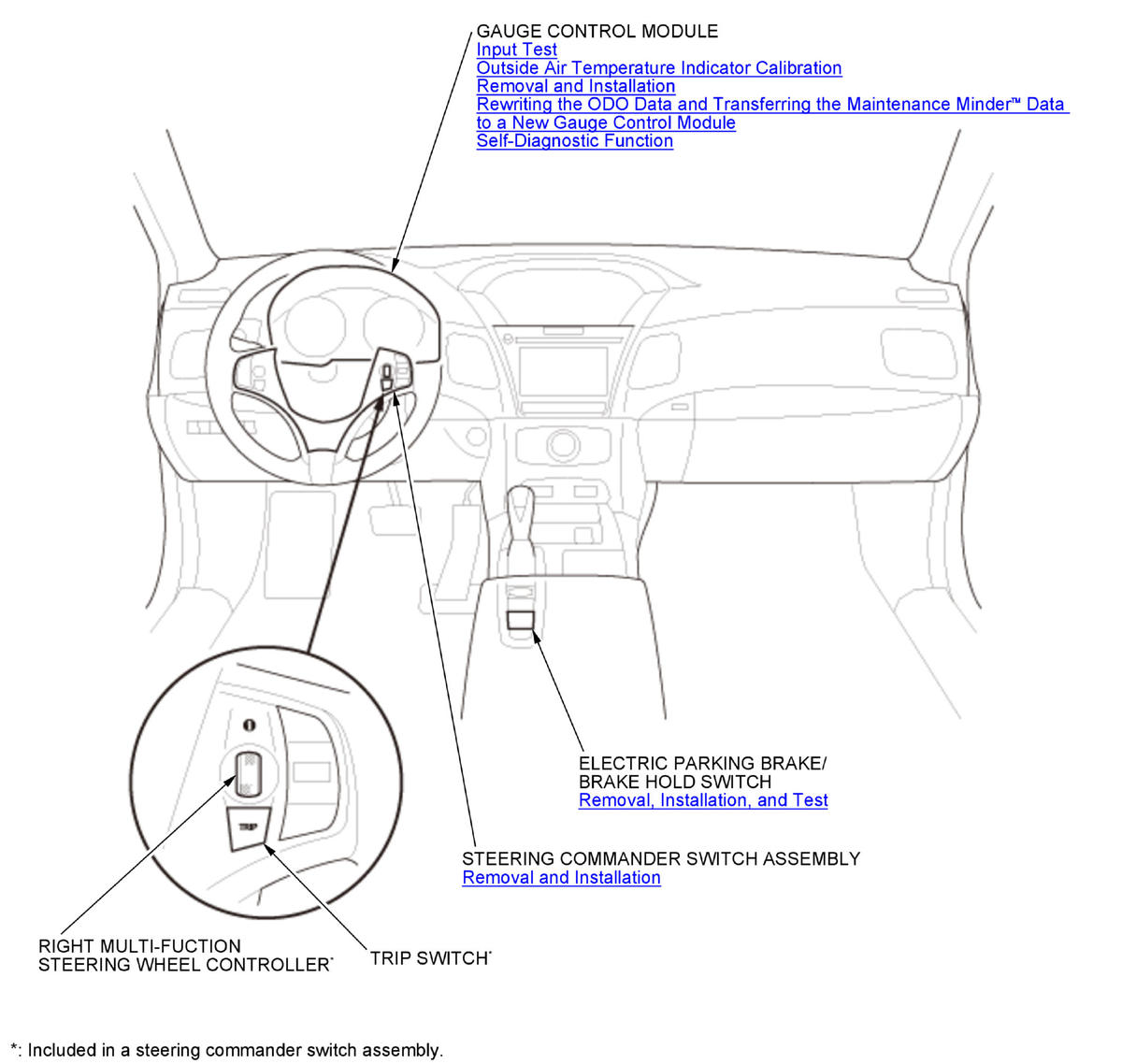

Gauges Component Location Index (2014 2015) (KA/KX Model)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

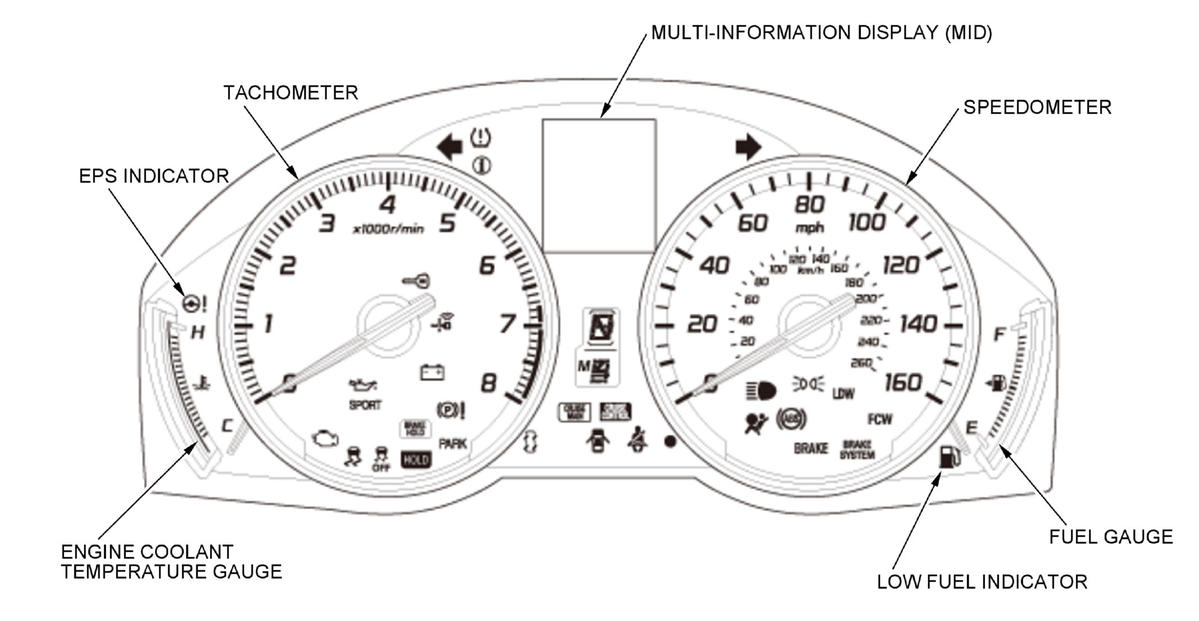

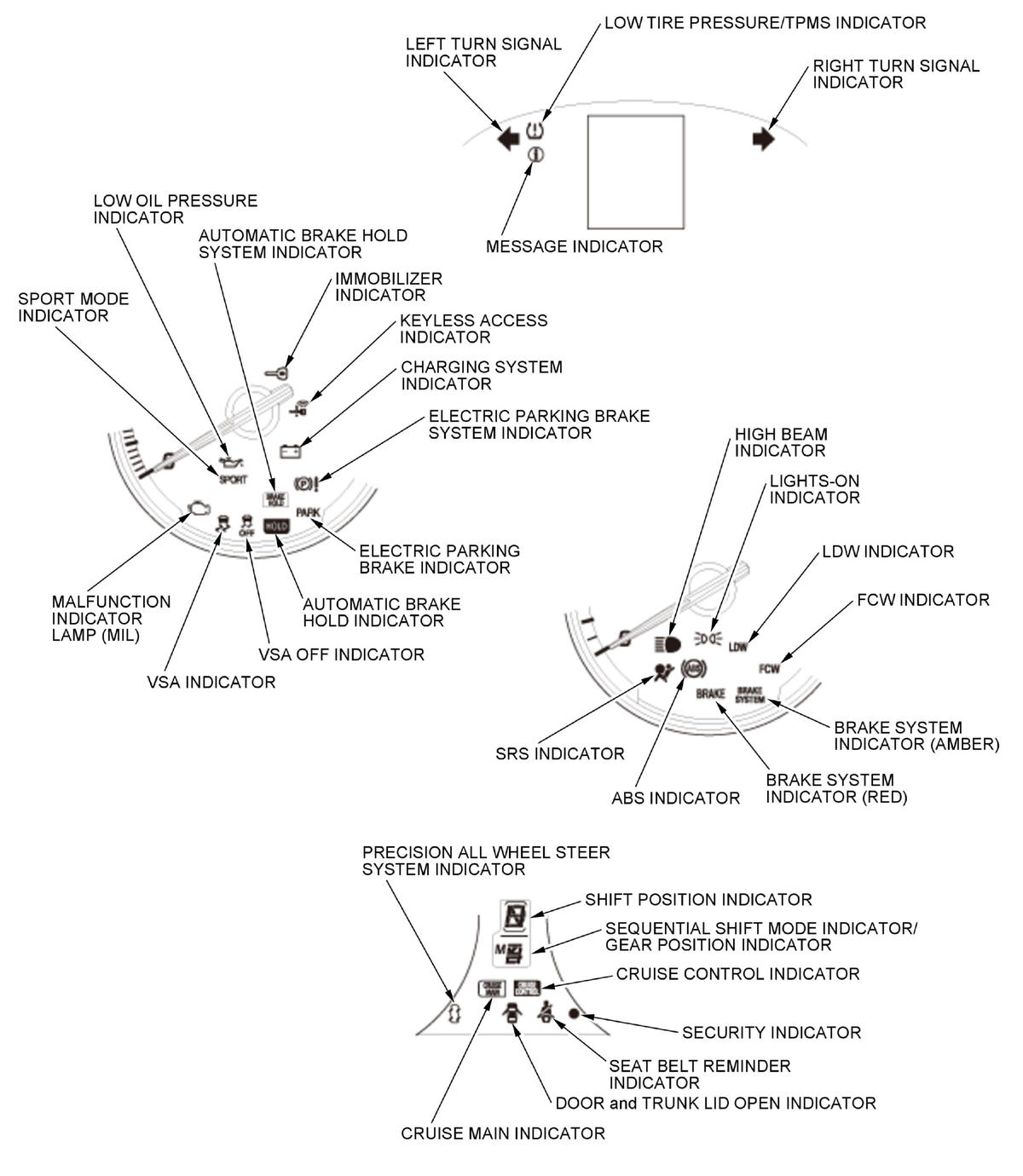

Without Color Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

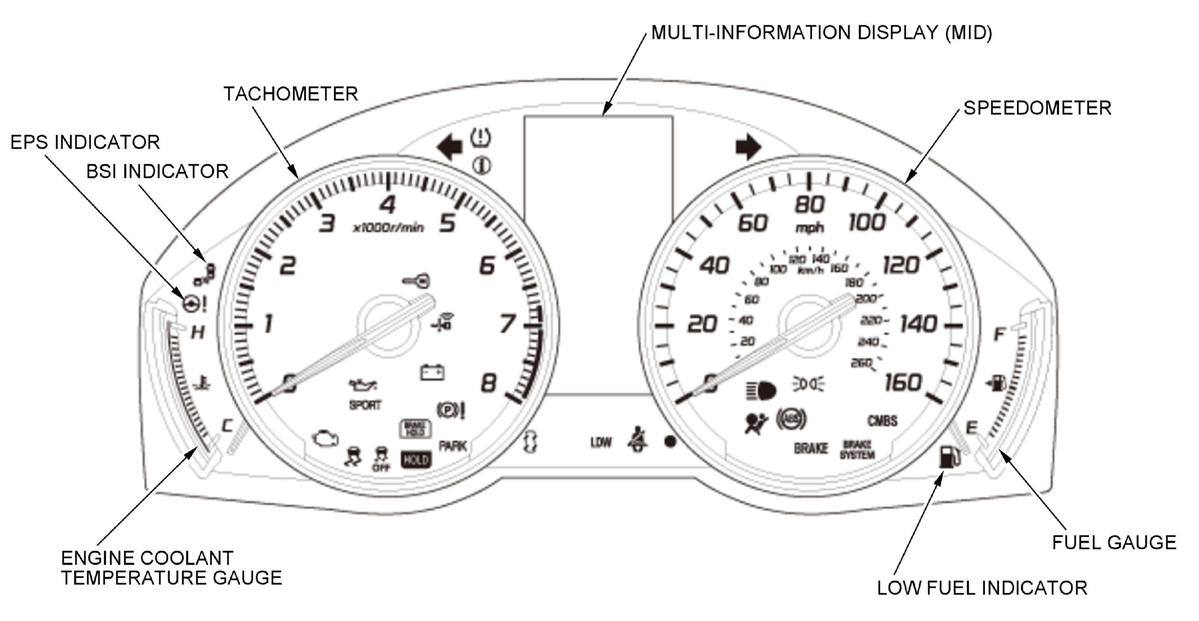

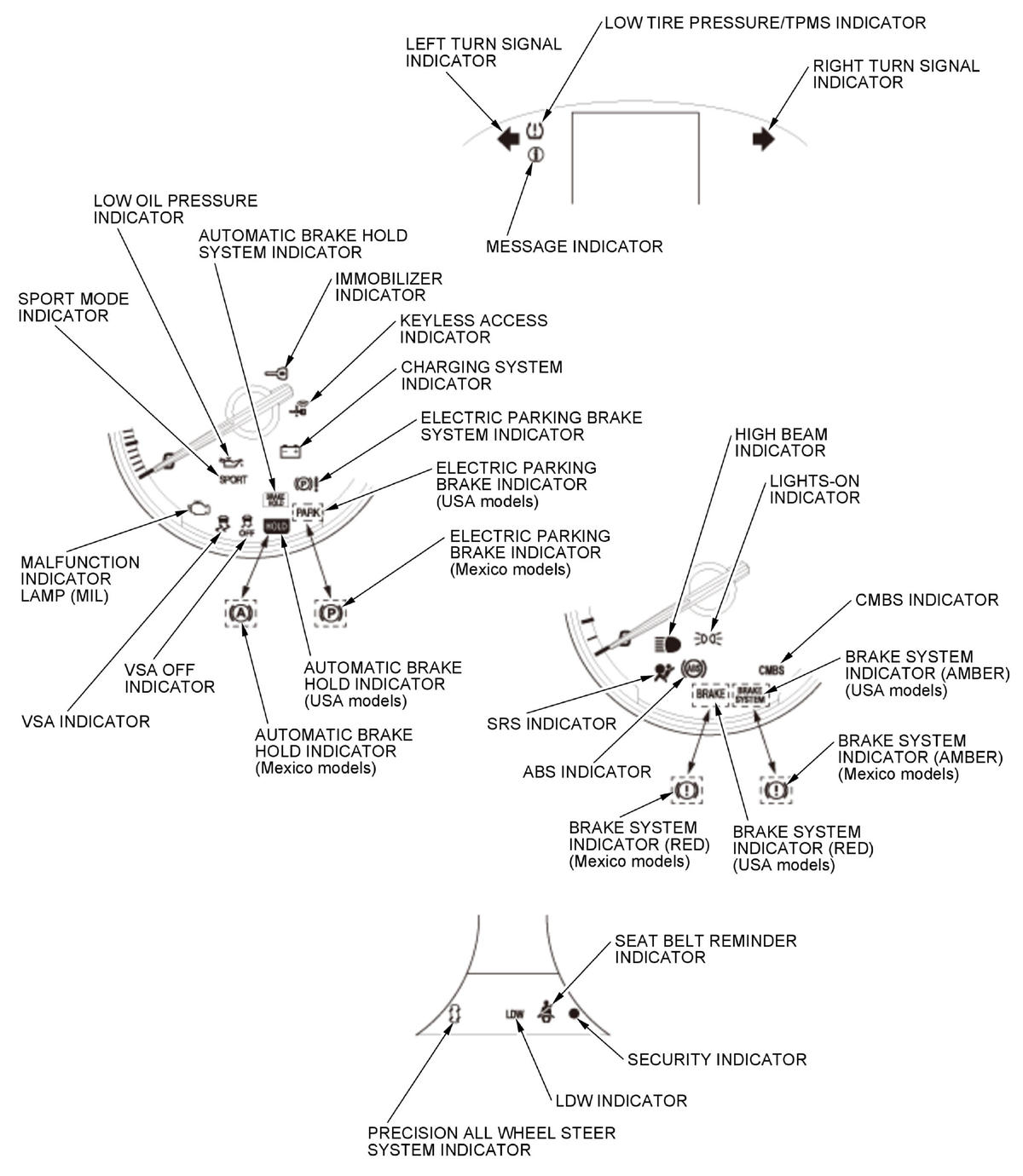

With Color Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
