Reminder Systems Circuit Diagram (2014 2015)

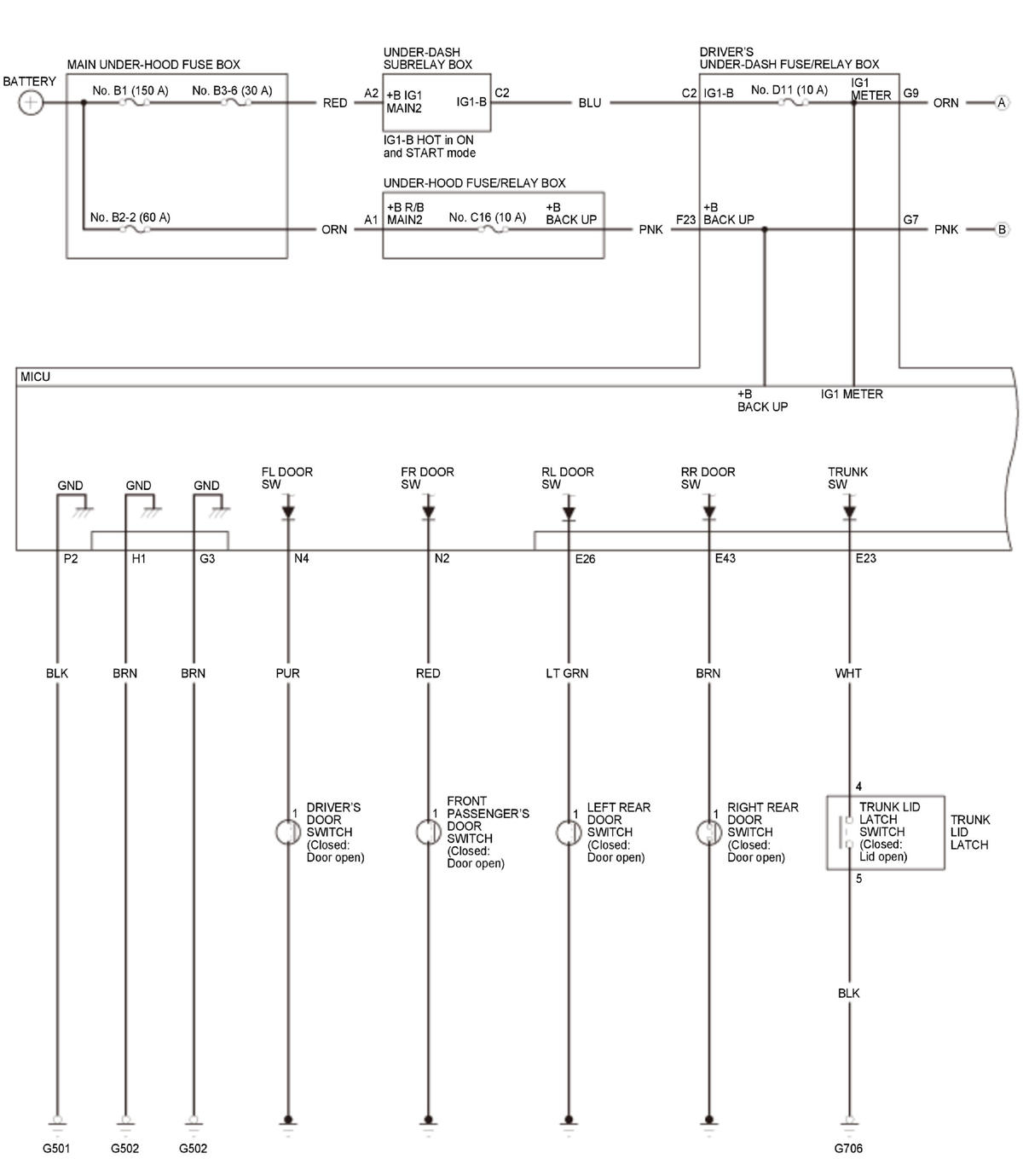

GHH347346

Courtesy of HONDA, U.S.A., INC.

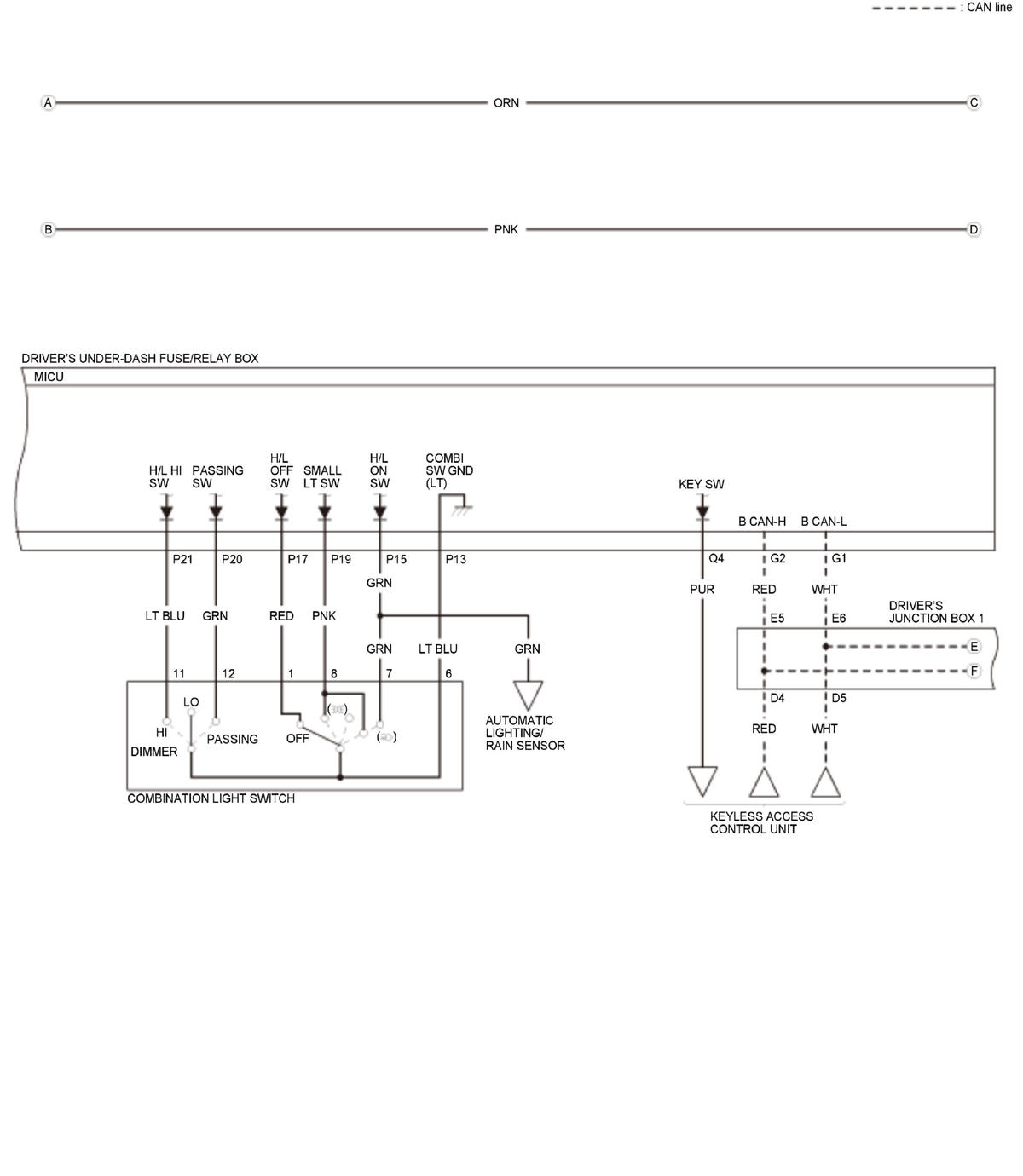

GHH347347

Courtesy of HONDA, U.S.A., INC.

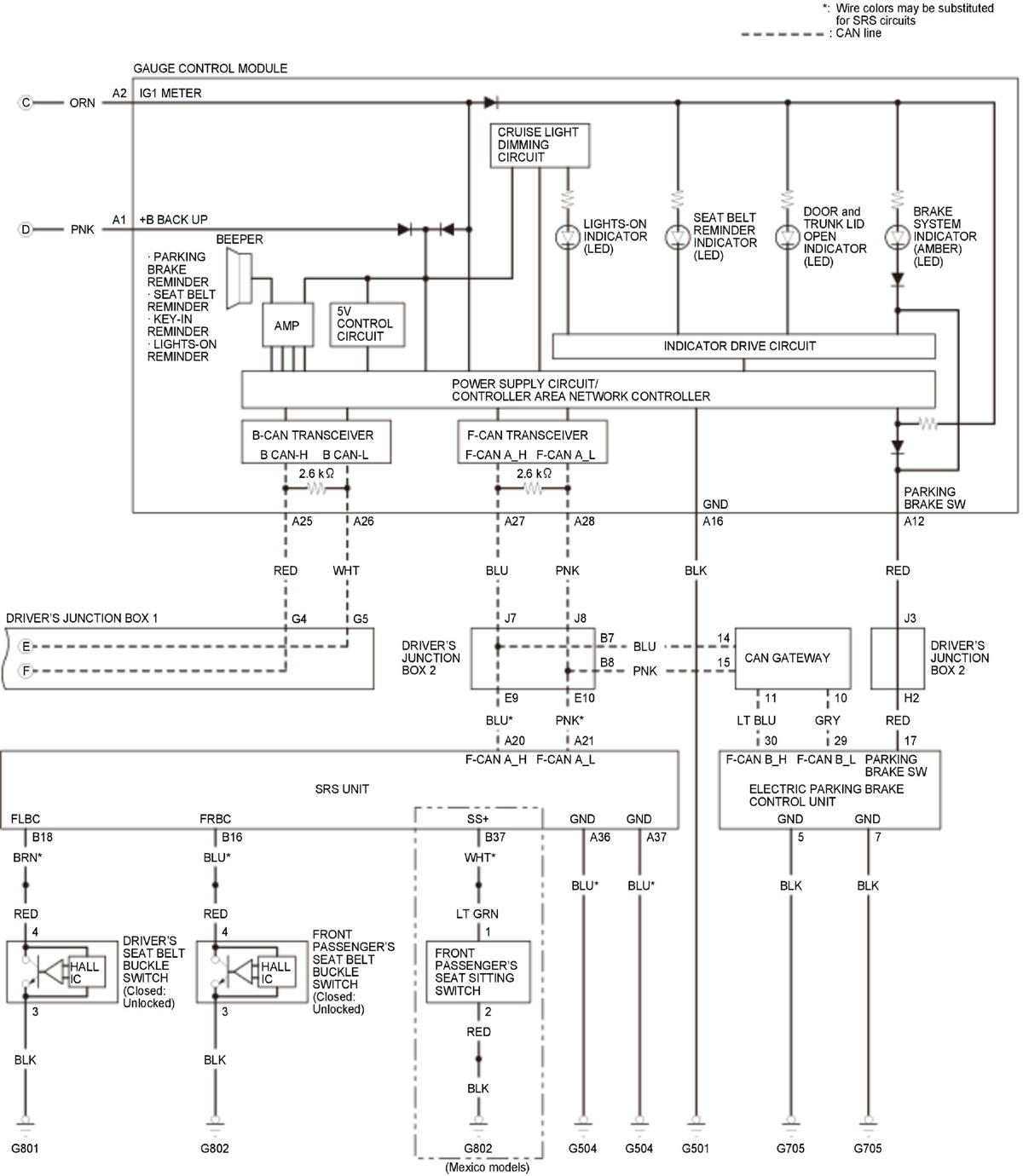

GHH347348

Courtesy of HONDA, U.S.A., INC.
