Gauges Circuit Diagram (2016 2017)

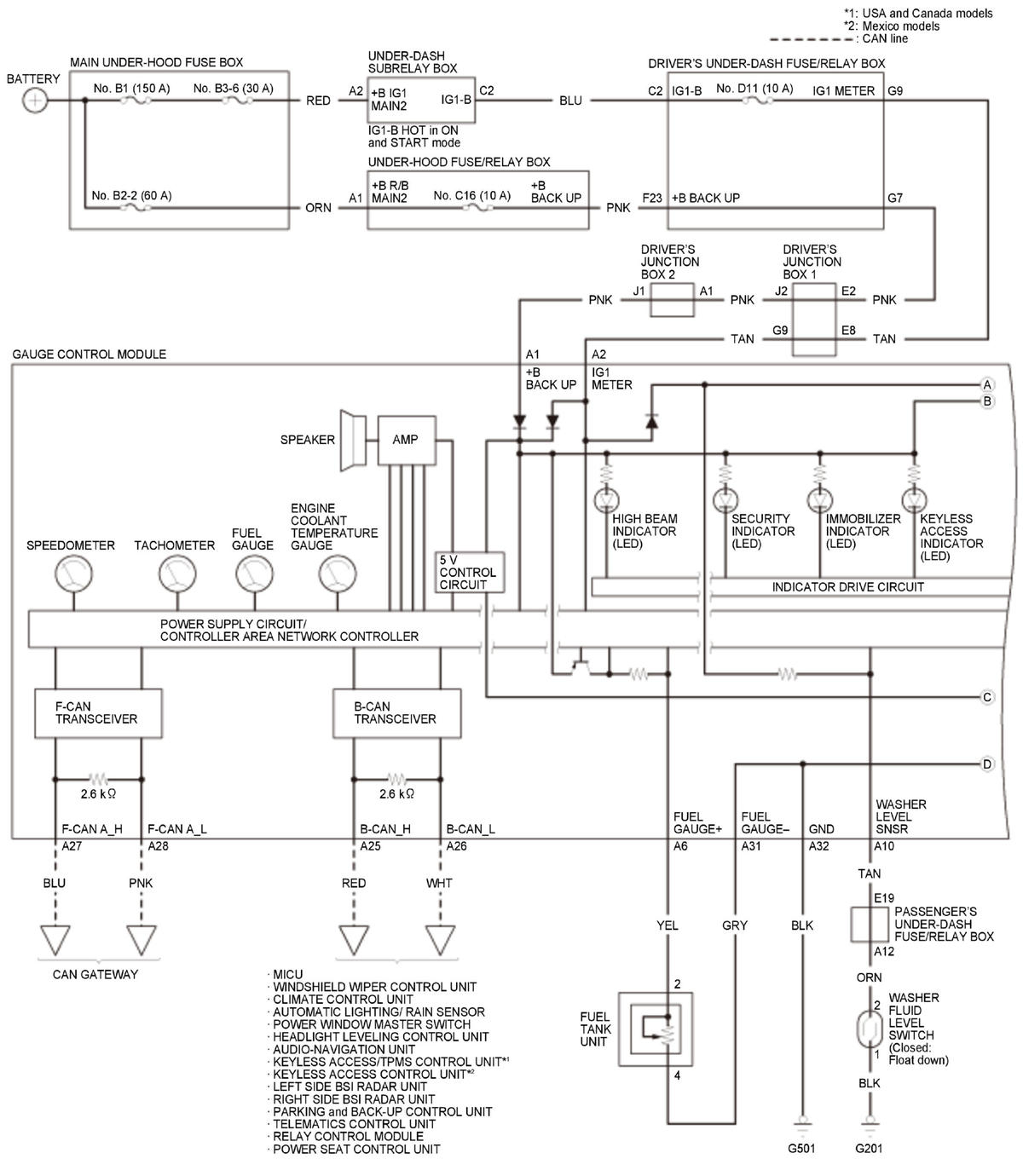

GHH347330Courtesy of HONDA, U.S.A., INC.

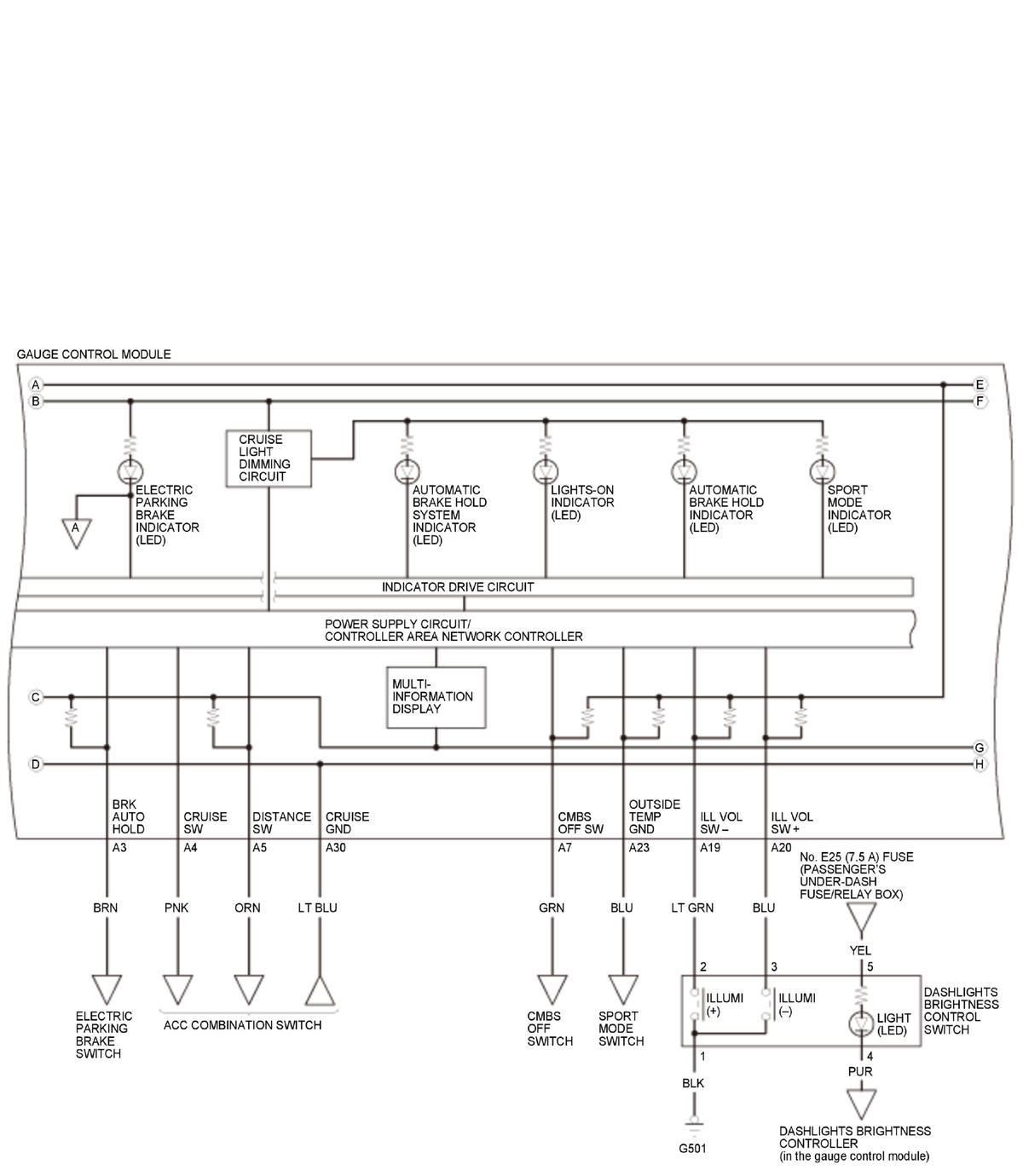

GHH347331Courtesy of HONDA, U.S.A., INC.
GHH347332Courtesy of HONDA, U.S.A., INC.
GHH347333Courtesy of HONDA, U.S.A., INC.

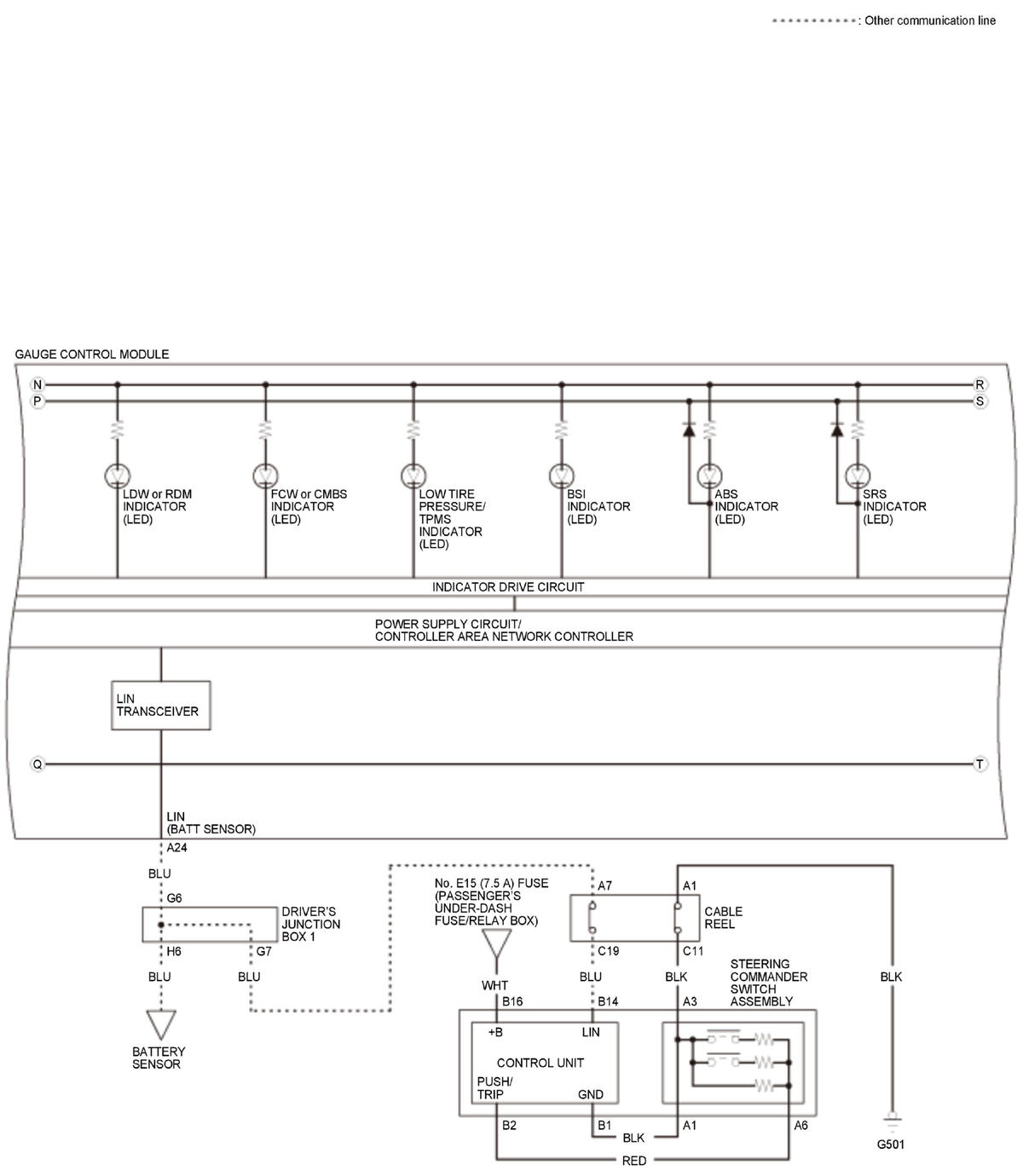

GHH347334Courtesy of HONDA, U.S.A., INC.

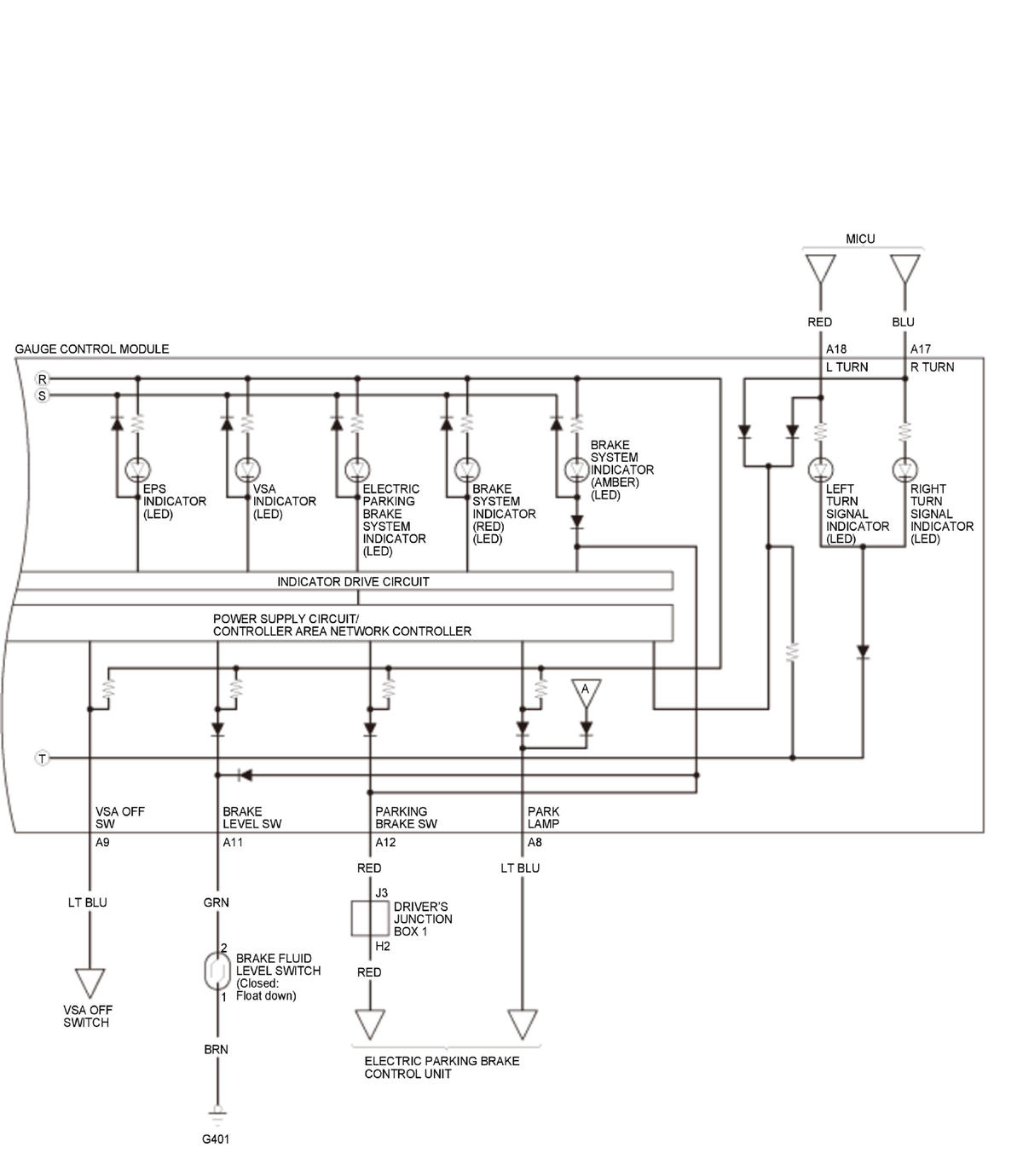

GHH347335Courtesy of HONDA, U.S.A., INC.
