Paddle Shifter Removal and Installation: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

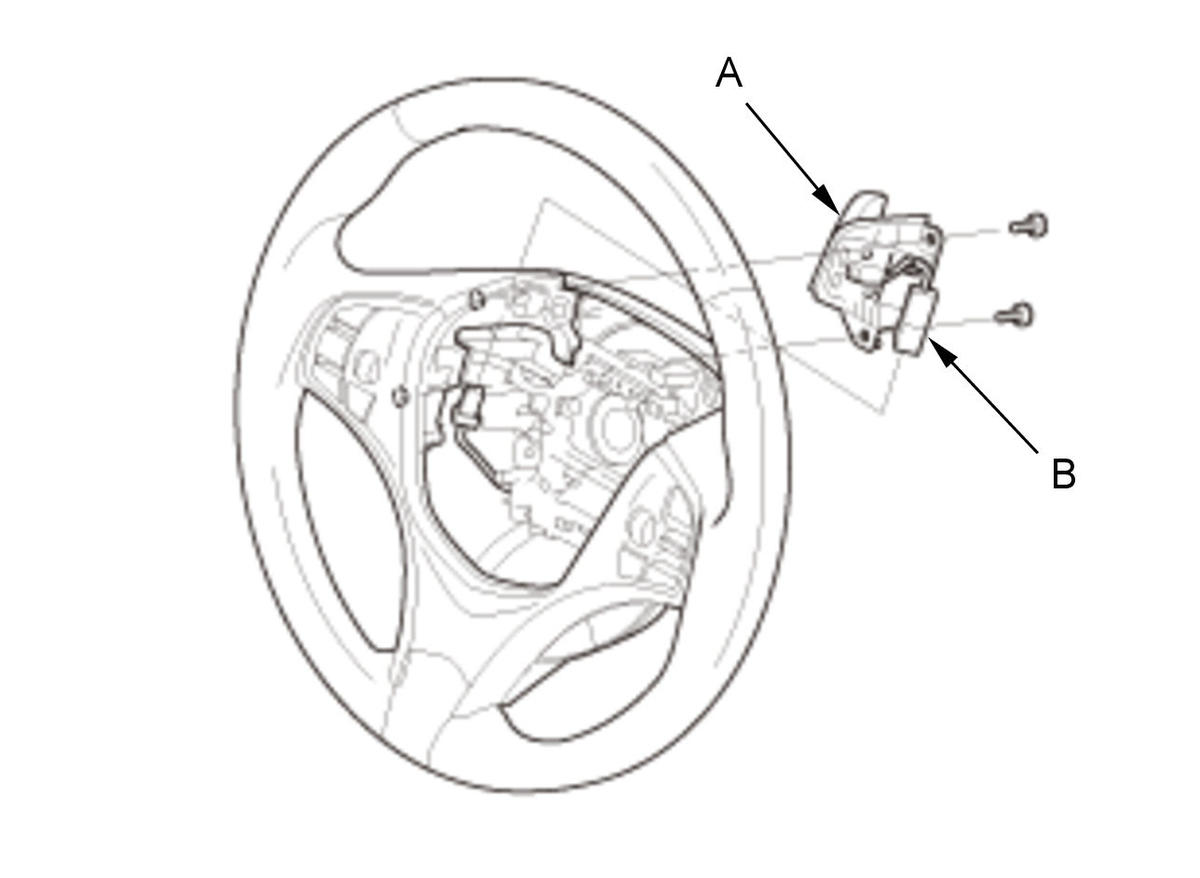

1. Paddle Shifter + (Upshift Switch) - Install

   Courtesy of HONDA, U.S.A., INC.

   1. Install the paddle shifter + (upshift switch) (A). 2. Connect the paddle shifter + (upshift switch) connector (B).

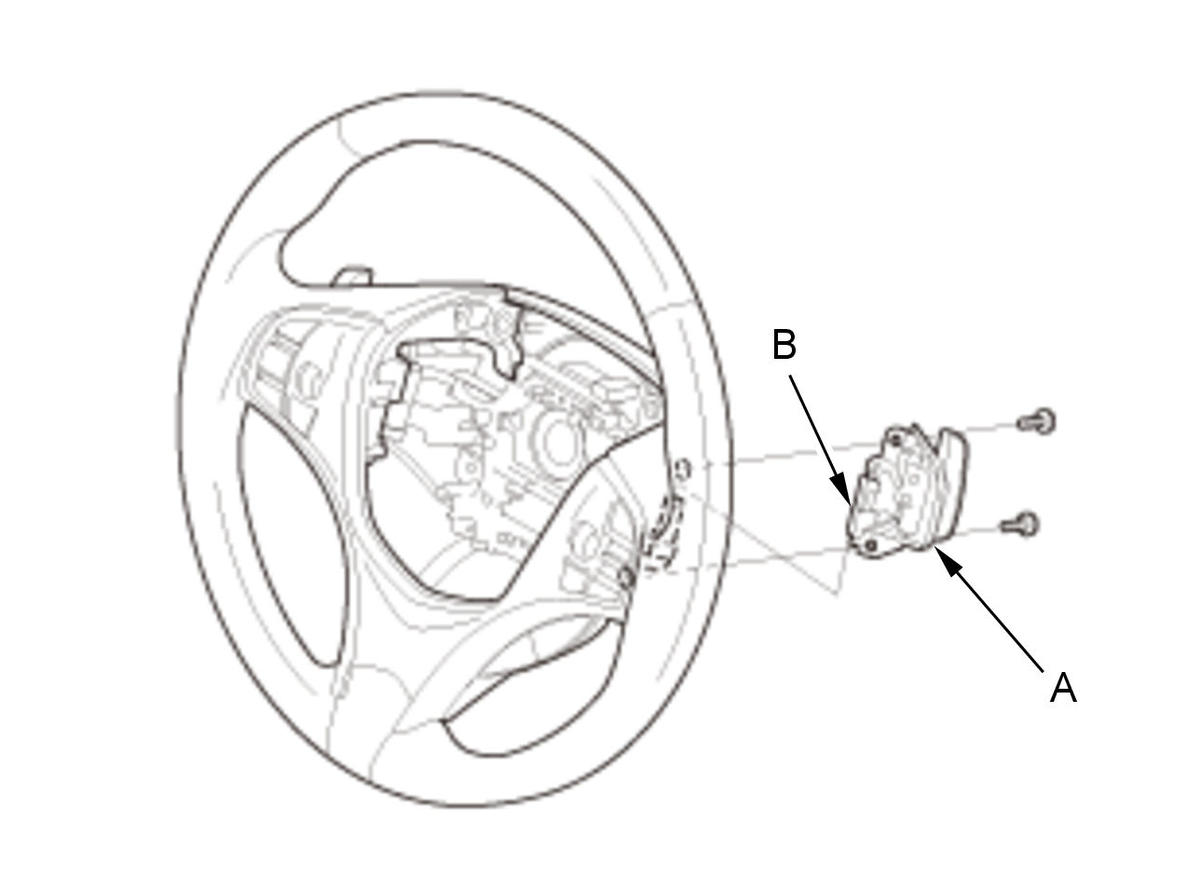

2. Paddle Shifter - (Downshift Switch) - Install

   Courtesy of HONDA, U.S.A., INC.

   1. Install the paddle shifter - (downshift switch) (A). 2. Connect the paddle shifter - (downshift switch) connector (B).

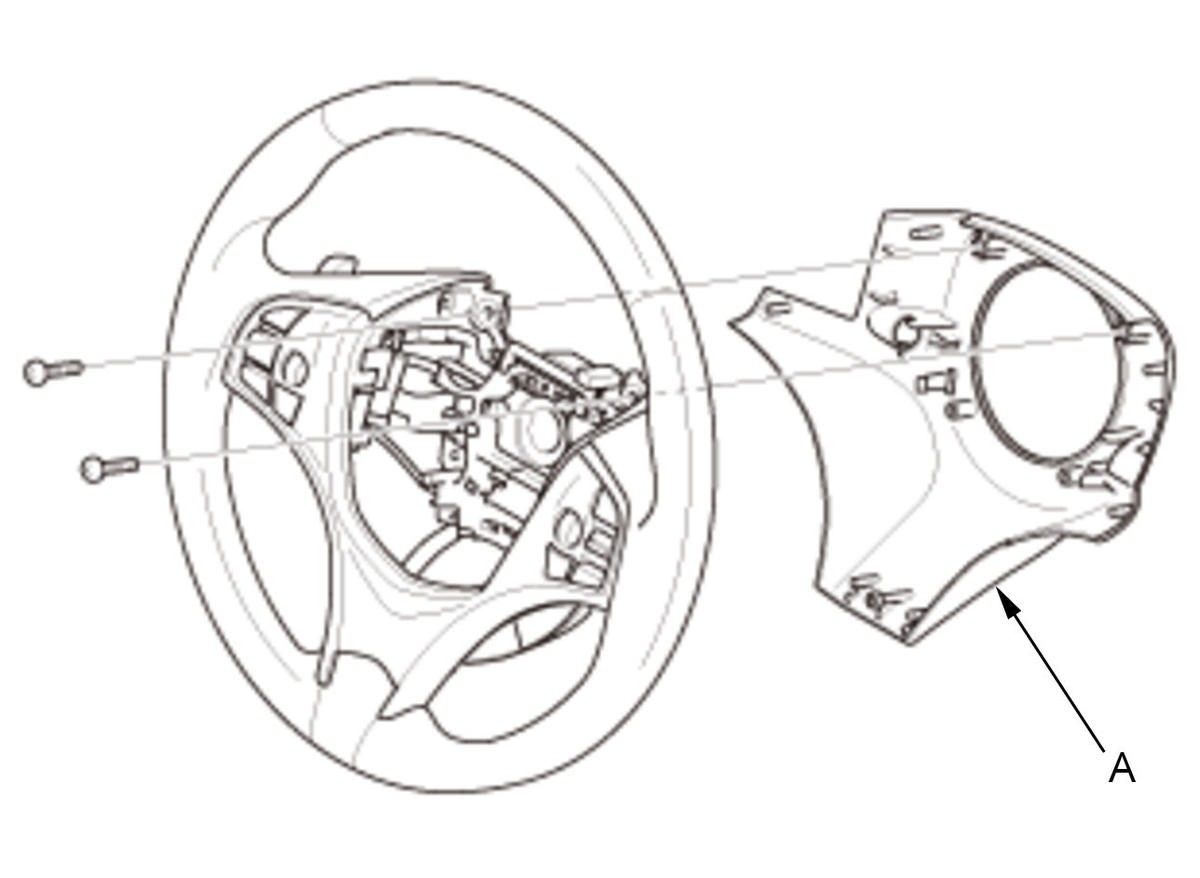

3. Steering Wheel Rear Cover - Install

   Courtesy of HONDA, U.S.A., INC.

   Install the steering wheel rear cover (A).

4. Steering Wheel - Install

   Install the steering wheel .

5. VSA Sensor Neutral Position - Memorize

   Do the VSA sensor neutral position memorization .

6. Steering Rack End Stop Position - Learn

   Do the steering rack end stop position learning .
