Gauge Control Module Removal and Installation: Installation

NOTE:  After replacing the gauge control module, rewrite the ODO data to the gauge control module with the HDS .

1. Gauge Control Module - Install

   Courtesy of HONDA, U.S.A., INC.

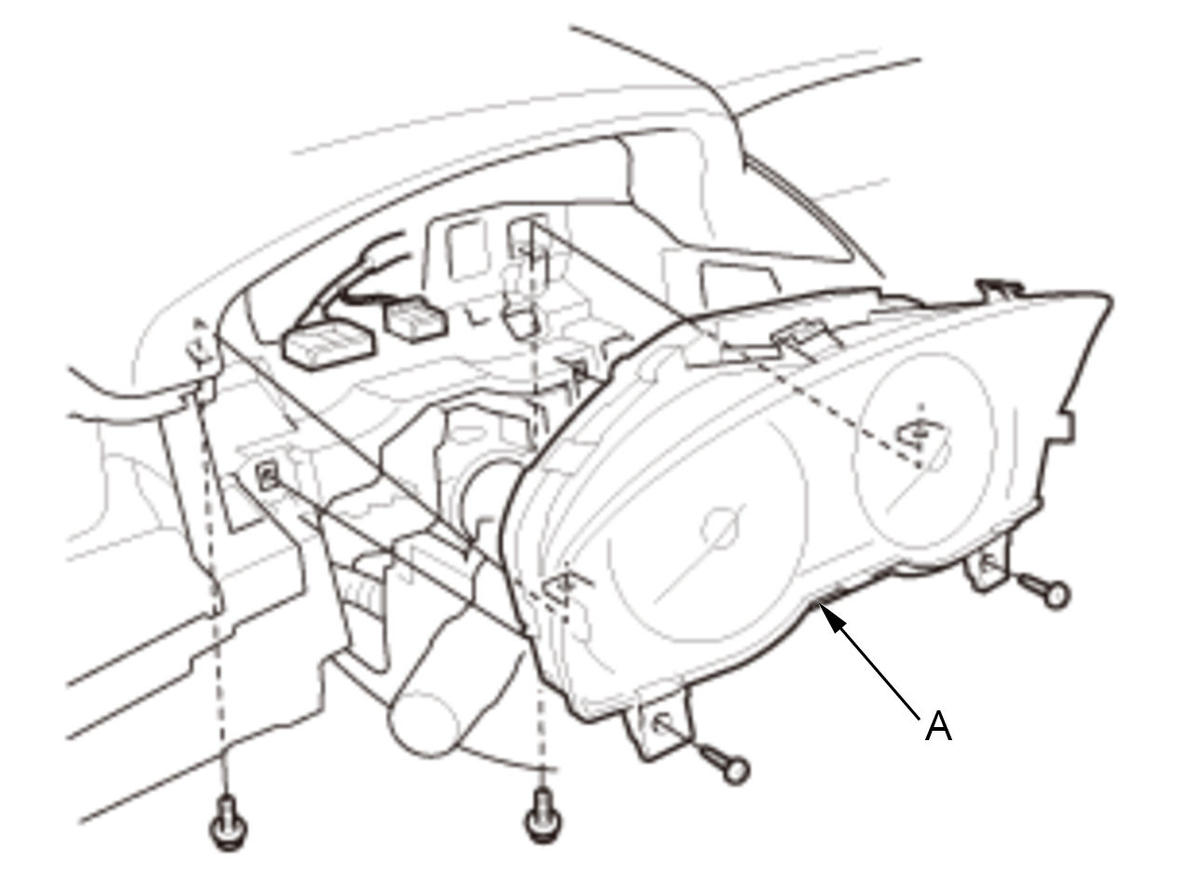

   1. Connect the gauge control module connectors. 2. Install the gauge control module (A).

2. Driver's Dashboard Lower Cover - Install

   Install the driver's dashboard lower cover .

3. Meter Lower Visor - Install

   Install the meter lower visor .

4. Gauge Control Module - Rewrite

   Select WRITE DATA and following the instructions on the HDS display, install the ODO value data onto a new gauge control module. If the data transfer fails, refer to the instructions below to release the locked ODO value .
