Dashlights Brightness Control Switch Removal and Installation: Removal

  1. Meter Lower Visor - Remove

    Remove the meter lower visor .

  2. Dashlights Brightness Control Switch - Remove

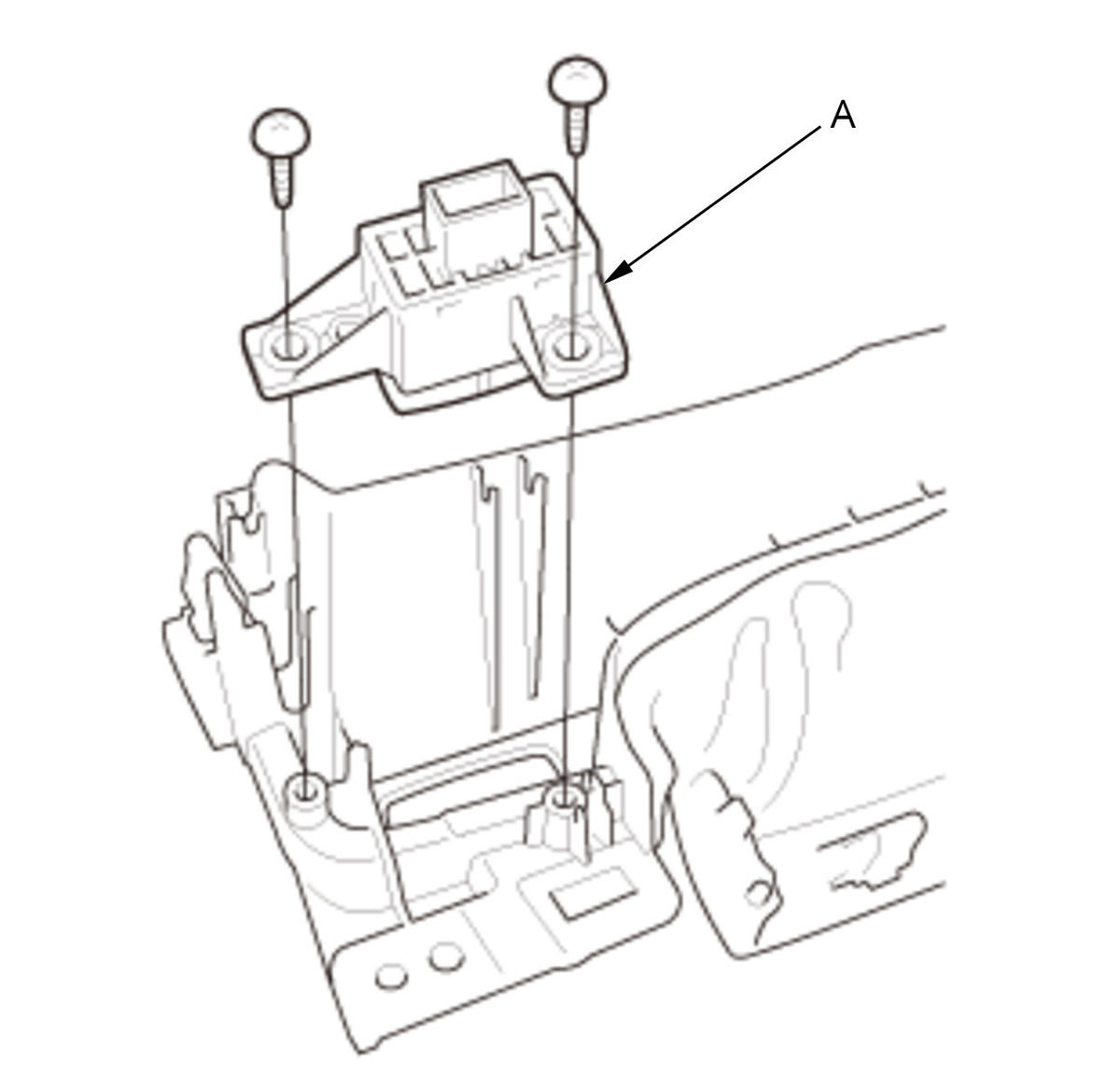

    GHH347426Courtesy of HONDA, U.S.A., INC.

    Remove the dashlights brightness control switch (A).
