Dashlights Brightness Control Switch Removal and Installation: Installation

  1. Dashlights Brightness Control Switch - Install

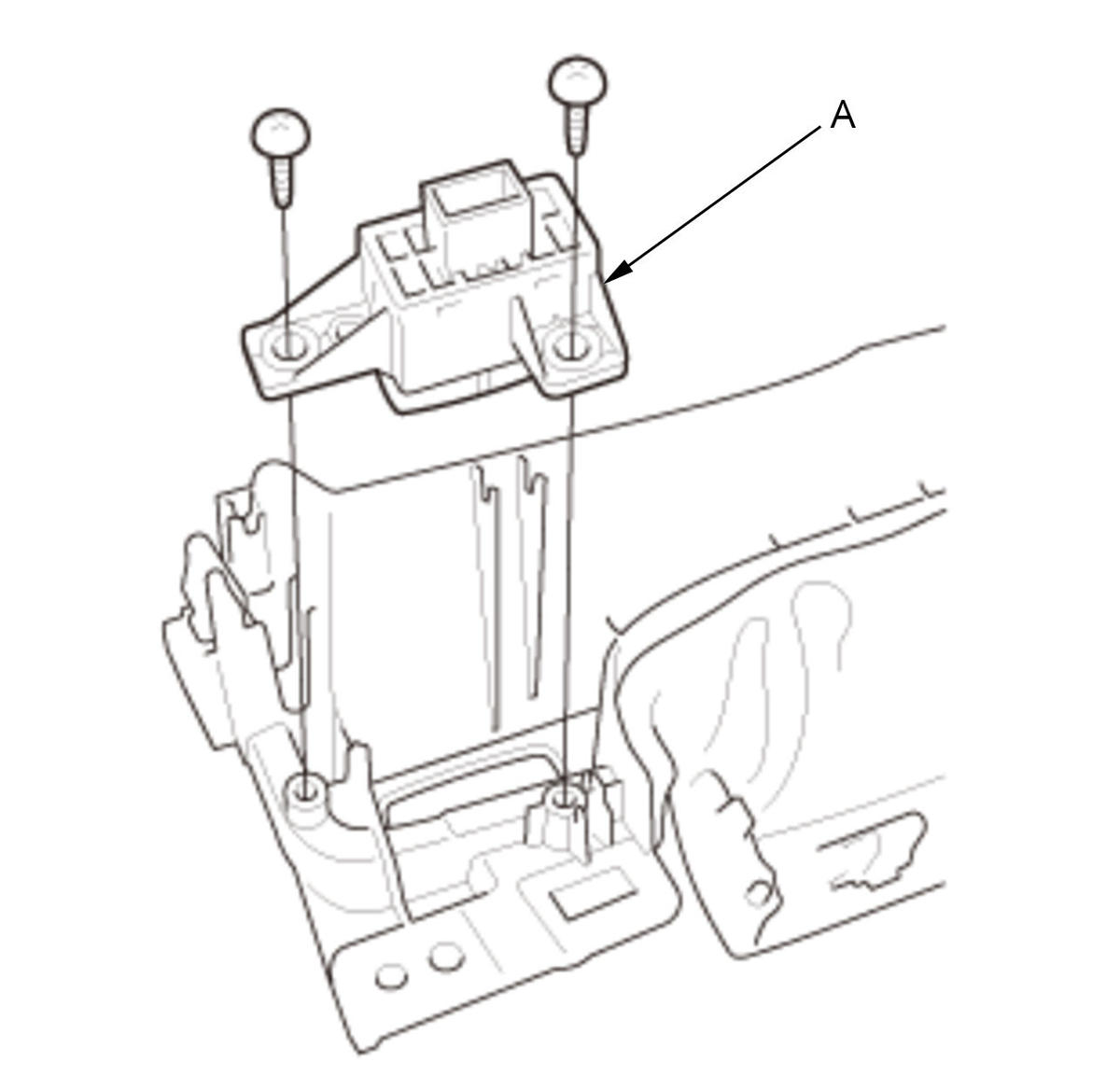

    GHH347427Courtesy of HONDA, U.S.A., INC.

    Install the dashlights brightness control switch (A).

  2. Meter Lower Visor - Install

    Install the meter lower visor .
