DTC U128F (Gauge Control Module)

DTC U128F  : Gauge Control Module Lost Communication With BSI Radar Unit

DTC (Gauge Control Module)

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Wait for at least 6 seconds.

   -4. Check for DTCs with the HDS.

   DTC Description	DTC
   U128F Gauge Control Module Lost Communication With BSI Radar Unit

   Is DTC U0128F indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Determine possible failure area (BSI radar unit power and ground, B CAN line)

   -1. Select B-CAN CONTROL UNITS INFORMATION from the BODY ELECTRICAL SYSTEM SELECT menu, and then select CHECK CONNECTED CONTROL UNITS.

   -2. Check the DETECT/NOT AVAILABLE information of the BSI RADAR UNIT

   Is DETECT indicated?

   YES

   Go to step 7.

   NO

   Go to step 3.

3. Fuse check

   -1. Check the following fuse.

   Fuse	No. D10 (7.5 A)
   Location	Driver's under-dash fuse/relay box

   Is the fuse OK?

   YES

   Go to step 4.

   NO

   Replace the fuse. If the fuse blows again, repair a short to ground in the No. D10 (7.5 A) fuse circuit.

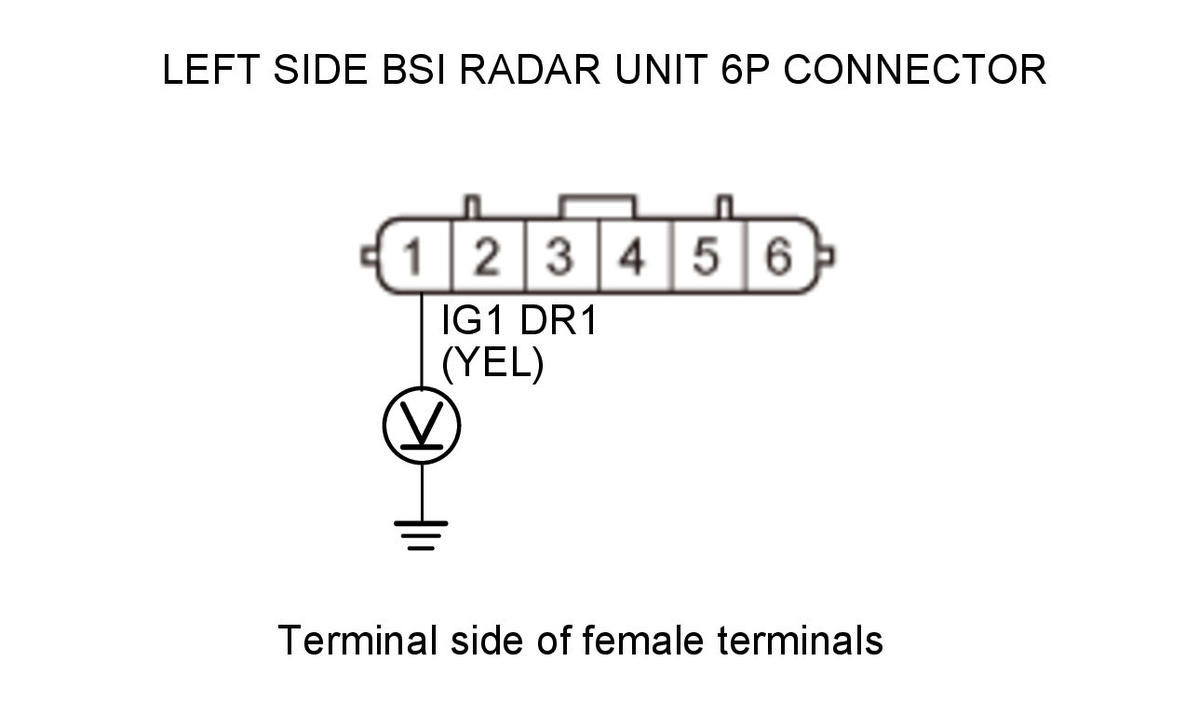

4. Open wire check (IG1 DR1 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Left side BSI radar unit 6P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Left side BSI radar unit 6P connector: disconnected
   Test circuit	IG1 DR1
   Test point 1	Left side BSI radar unit 6P connector No. 1 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The IG1 DR1 wire is OK. Go to step 5.

   NO

   Repair an open or high resistance in the wire.

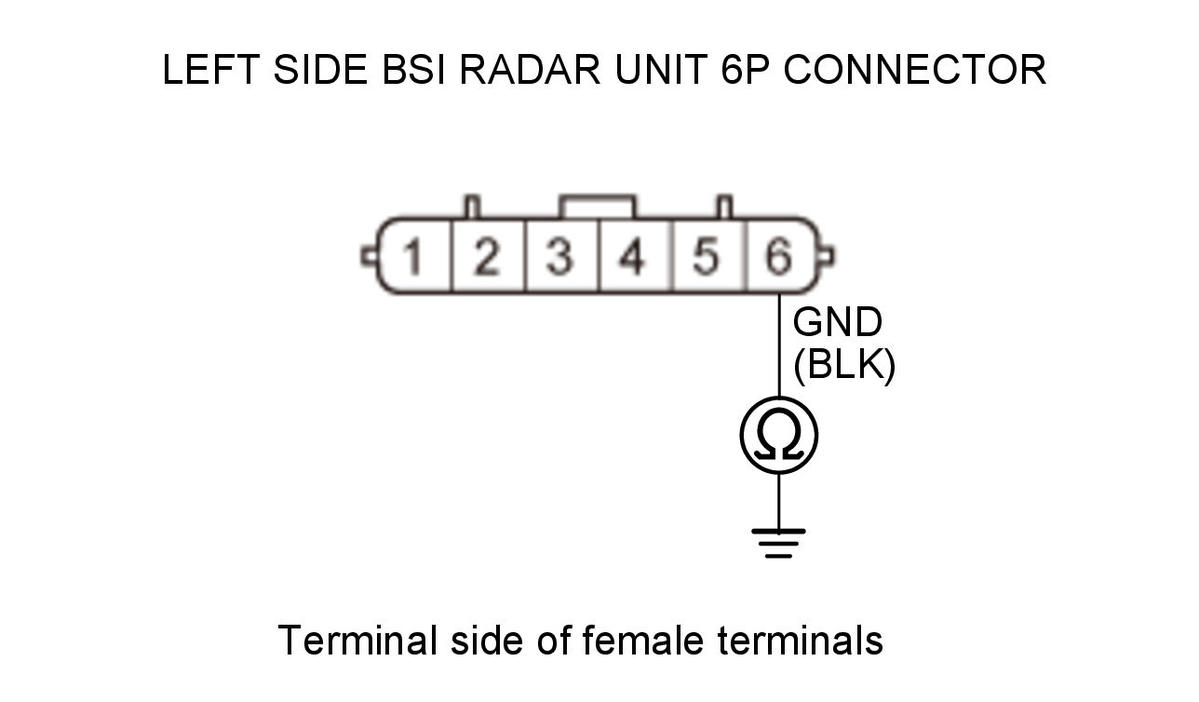

5. Open wire check (GND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Left side BSI radar unit 6P connector: disconnected
   Test circuit	GND
   Test point 1	Left side BSI radar unit 6P connector No. 6 (BLK)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Go to step 6.

   NO

   Repair an open or high resistance in the ground wire or poor ground (G705).

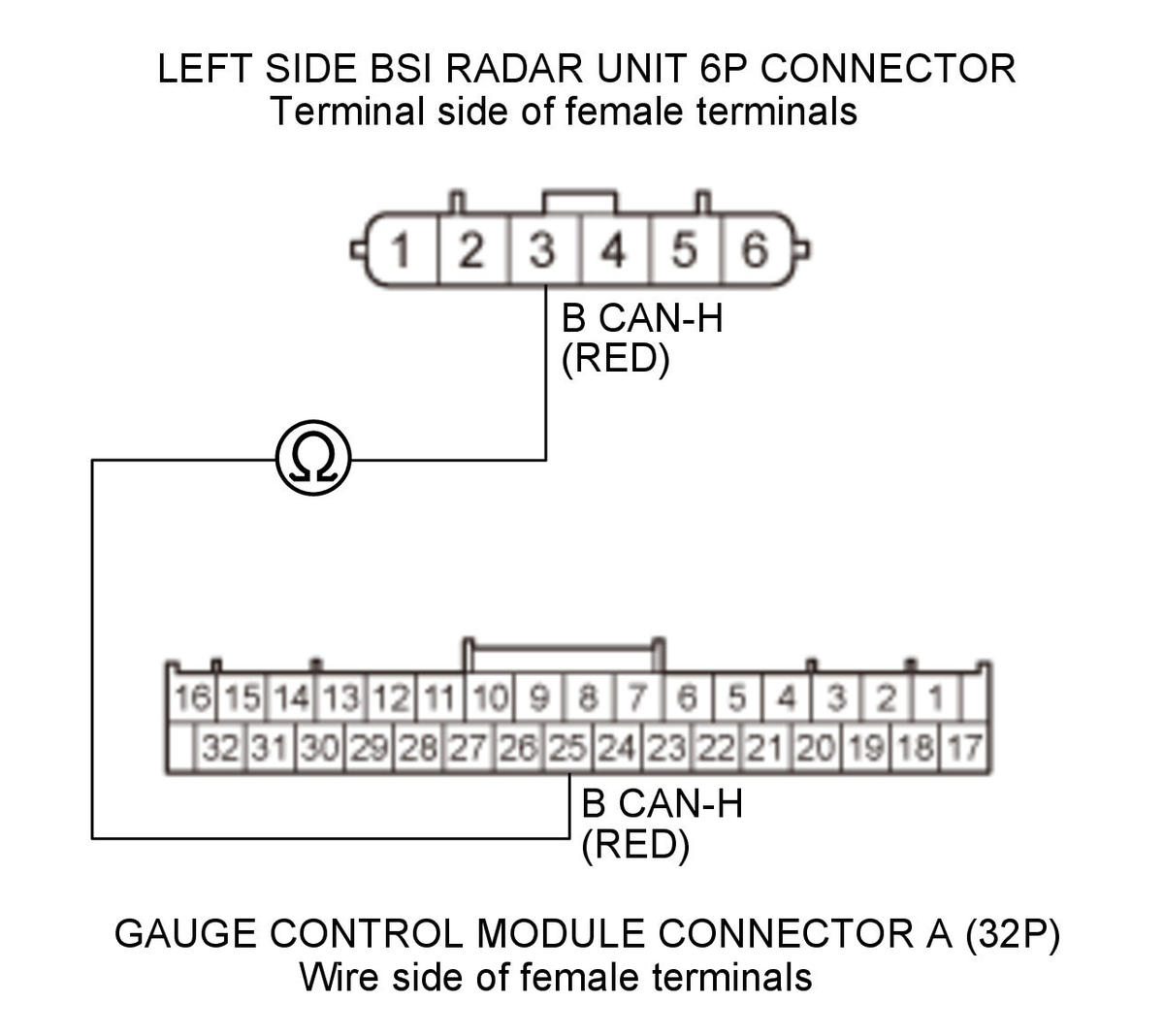

6. Open wire check (B CAN lines)

   -1. Disconnect the following connector.

   Gauge control module connector A (32P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Left side BSI radar unit 6P connector: disconnected Gauge control module connector A (32P): disconnected
   Test circuit	B CAN-H
   Test point 1	Left side BSI radar unit 6P connector No. 3 (RED)
   Test point 2	Gauge control module connector A (32P) No. 25 (RED)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   An open or poor connection in the B CAN-L wire between the left side BSI radar unit and the gauge control module.

   NO

   An open or poor connection in the B CAN-H wire between the left side BSI radar unit and the gauge control module.

7. Open wire check (B CAN lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Left side BSI radar unit 6P connector

   Gauge control module connector A (32P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Left side BSI radar unit 6P connector: disconnected Gauge control module connector A (32P): disconnected
   Test circuit	B CAN-H
   Test point 1	Left side BSI radar unit 6P connector No. 3 (RED)
   Test point 2	Gauge control module connector A (32P) No. 25 (RED)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   An open or poor connection in the B CAN-L wire between the left side BSI radar unit and the gauge control module.

   NO

   An open or poor connection in the B CAN-H wire between the left side BSI radar unit and the gauge control module.
