DTC B1176

DTC B1176  : Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Short

DTC (Gauge Control Module)

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode.

   -3. Turn the vehicle to the ON mode, and wait more than 30 seconds.

   -4. Check for DTCs with the HDS.

   DTC Description	DTC
   B1176 Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Short

   Is DTC B1176 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Shorted wire check (FUEL GAUGE+ line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Gauge control module connector A (32P) Fuel tank unit 4P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Gauge control module connector A (32P): disconnected Fuel tank unit 4P connector: disconnected
   Test circuit	FUEL GAUGE+

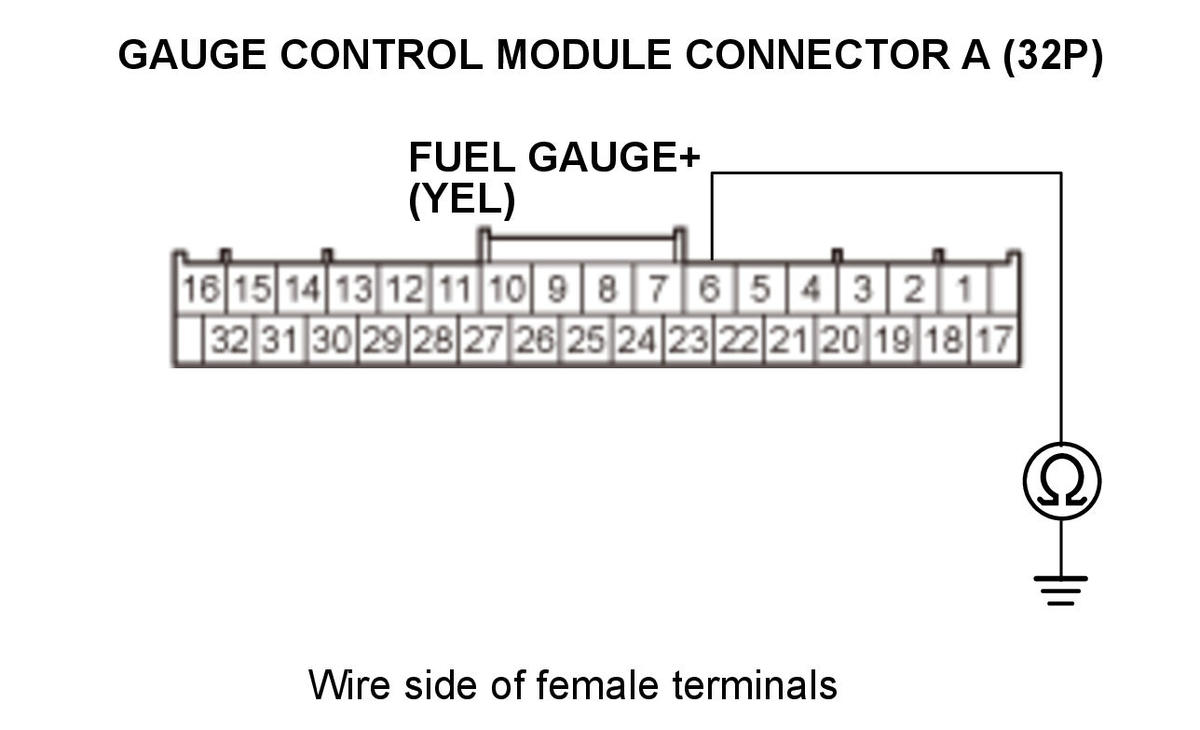

   Test point 1	Gauge control module connector A (32P) No. 6 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the wire between the gauge control module and the fuel tank unit.

   NO

   The FUEL GAUGE+ wire is OK. Go to step 3.

3. Fuel gauge sending unit check

   -1. Test the fuel gauge sending unit .

   Is the fuel gauge sending unit OK?

   YES

   Replace the gauge control module .

   NO

   Replace the fuel gauge sending unit .
