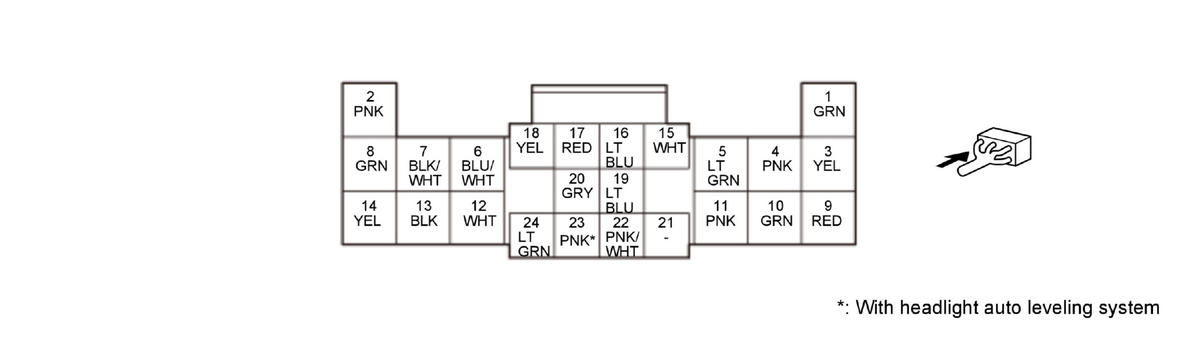

Adaptive Damper Control Unit Connector for Inputs and Outputs (2019-2020)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | ADS RR L G | Detects left-rear acceleration sensor signal |
| 2 | IG1 OP(7.5A) | Power source for the adaptive damper control unit |
| 3 | SOL FL+ | Drives left-front damper actuator |
| 4 | SOL FL- | Ground for the left-front damper actuator |
| 5 | SOL RL+ | Drives left-rear damper actuator |
| 6 | SOL RR- | Ground for the right-rear damper actuator |
| 7 | SOL RR+ | Drives right-rear damper actuator |
| 8 | +B ADS(30A) | Power source for the fail-safe relay |
| 9 | SOL FR- | Ground for the right-front damper actuator |
| 10 | SOL FR+ | Drives right-front damper actuator |
| 11 | SOL RL- | Ground for the left-rear damper actuator |
| 12 | RLST | Detects left-rear suspension stroke sensor signal |
| 13 | GND | Ground for the adaptive damper control unit |
| 14 | ADS FR L G | Detects front acceleration sensor signal |
| 15 | ADS SG | Ground for the sensors |
| 16 | ADS RR R STROKE | Detects right-rear suspension stroke sensor signal |
| 17 | ADS SVCC | Power source for the sensors |
| 18 | ADS FR R STROKE | Detects right-front suspension stroke sensor signal |
| 19 | F-CAN B_H | F-CAN communication circuit |
| 20 | F-CAN B_L | F-CAN communication circuit |
| 21 | Not used | - - - |
| 22 | ADS FR R G | Detects right-rear acceleration sensor signal |
| 23* | H VCC | Detects power source voltage for left-front suspension stroke sensor and left-rear suspension stroke sensor |
| 24 | FLST | Detects left-front suspension stroke sensor signal |
*: With headlight auto leveling system
