E-Pretensioner Unit Connector for Inputs and Outputs (2016 2017 2018 2019 2020)

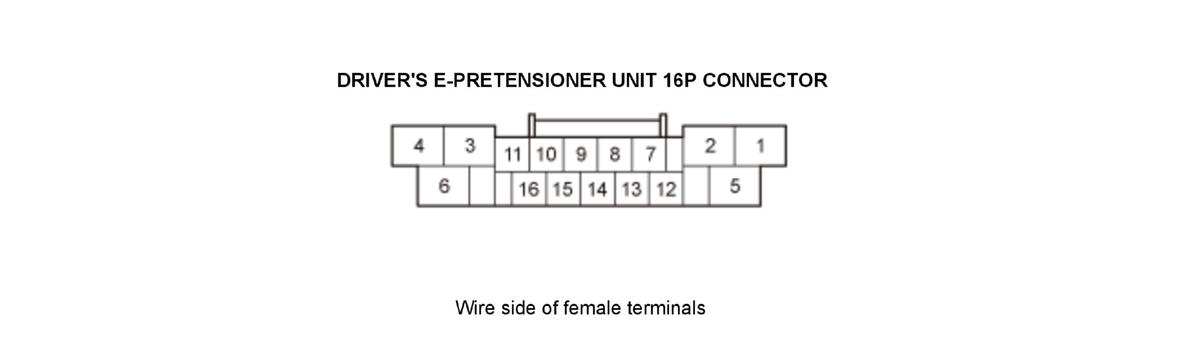

Driver's E-Pretensioner Unit 16P Connector for Inputs and Outputs
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | GRN | + B EPT L | Power supply for the driver's E-pretensioner unit |
| 2 | RED | L EPT MTR + | Power supply for the driver's E-pretensioner motor |
| 3 | YEL | L EPT MTR - | Ground circuit for the driver's E-pretensioner motor |
| 4 | BLK | PGND | Ground circuit for the driver's E-pretensioner unit |
| 5 | Not used | Not used | - |
| 6 | Not used | Not used | - |
| 7 | Not used | Not used | - |
| 8 | ORN | L SPOOL B | Receives for the driver's E-pretensioner spool sensor B signal |
| 9 | Not used | Not used | - |
| 10 | GRY | L SPOOL PWR | Power supply for the driver's E-pretensioner spool sensor |
| 11 | PNK | L BUCKLE SW | Receives for the driver's side seat belt buckle switch signal |
| 12 | WHT | F-CAN A_H | F-CAN A communication (high) circuit |
| 13 | BRN | F-CAN A_L | F-CAN A communication (low) circuit |
| 14 | RED | L SPOOL A | Receives for the driver's E-pretensioner spool sensor A signal |
| 15 | Not used | Not used | - |
| 16 | LT GRN | IG1 ECU AS | Detects ignition signal |

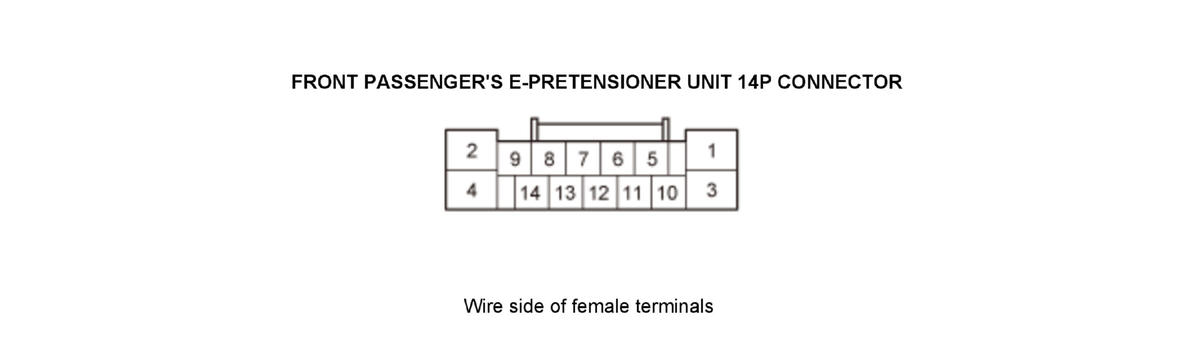

Front Passenger's E-Pretensioner Unit 14P Connector for Inputs and Outputs
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | WHT | R EPT MTR + | Power supply for the front passenger's E-pretensioner motor |
| 2 | BLU | R EPT MTR - | Ground circuit for the front passenger's E-pretensioner motor |
| 3 | YEL | + B EPT R | Power supply for the front passenger's E-pretensioner unit |
| 4 | BLK | SGND | Ground circuit for the front passenger's E-pretensioner unit |
| 5 | Not used | Not used | - |
| 6 | PUR | R SPOOL B | Receives for the front passenger's E-pretensioner spool sensor B signal |
| 7 | Not used | Not used | - |
| 8 | WHT | R SPOOL PWR | Power supply for the front passenger's E-pretensioner spool sensor |
| 9 | PUR | R BUCKLE SW | Receives for the front passenger's seat belt buckle switch signal |
| 10 | WHT | F-CAN A_H | F-CAN A communication (high) circuit |
| 11 | BRN | F-CAN A_L | F-CAN A communication (low) circuit |
| 12 | YEL | R SPOOL A | Receives for the front passenger's E-pretensioner spool sensor A signal |
| 13 | Not used | Not used | - |
| 14 | LT GRN | IG1 ECU AS | Detects ignition signal |
