DTC B0095-87 (2017 2018 2019 2020)

DTC B0095-87 : No Signal From the Right Front Impact Sensor

Special Tools Required

-SRS Inflator Simulator 07SAZ-TB4011A

-SRS Simulator Lead L 070AZ-SNAA300

NOTE:

Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed .
Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and Battery Terminal Disconnection and Reconnection. - Refer to: Battery Terminal Disconnection and Reconnection (2016 2017 2018 2019 2020) .

DTC Description	DTC
B0095-87 No signal from the right front impact sensor

DTC (SRS)

Problem verification

-1. Clear the DTCs with the HDS.

- 2. Turn the vehicle to the ON mode, then wait for 10 seconds.

- 3. Check for DTCs with the HDS.

DTC Description	DTC
B0095-87 No signal from the right front impact sensor

Is DTC B0095-87 indicated?

YES

The failure is duplicated. Go to step 2.

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.

Connector connection check

-1. Turn the vehicle to the OFF (LOCK) mode.

- 2. Check the following connections.

SRS unit connector A (39P)

Right front impact sensor 2P connector (on the engine compartment wire harness)

Connector between the SRS unit and the right front impact sensor

Are the connectors OK?

YES

Go to step 4.

Go to step 3.

System check

-1. Reset the loose connections that caused the problem in step 2.

- 2. Clear the DTCs with the HDS.

- 3. Turn the vehicle to the ON mode, then wait for 10 seconds.

- 4. Check for DTCs with the HDS.

DTC Description	DTC
B0095-87 No signal from the right front impact sensor

Is DTC B0095-87 indicated?

YES

Turn the vehicle to the OFF (LOCK) mode, then go to step 4.

The system is OK at this time.

Shorted wire check (RFS+ line to RFS- line)

-1. Disconnect the negative cable from the Battery, then wait at least 3 minutes.

- 2. Disconnect the following connectors.

SRS unit connector A (39P)

Right front impact sensor 2P connector (on the engine compartment wire harness)

- 3. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	SRS unit connector A (39P): disconnected
	Right front impact sensor 2P connector (on the engine compartment wire harness): disconnected
Test point 1	SRS unit connector A (39P) No. 29 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
Test point 2	SRS unit connector A (39P) No. 30 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020)

Is there an open circuit, or at least 1 MΩ?

YES

The RFS+ and RFS- wires are not shorted. Go to step 5.

Short to another wire in the engine compartment wire harness or the dashboard wire harness; replace the faulty harness, then clear the DTC.

Shorted wire check (RFS+, RFS- lines)

-1. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	SRS unit connector A (39P): disconnected
	Right front impact sensor 2P connector (on the engine compartment wire harness): disconnected
Test point 1	SRS unit connector A (39P) No. 29 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
Test point 2	Body ground

Test point 1	SRS unit connector A (39P) No. 30 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020),
Test point 2	Body ground

Is there an open circuit, or at least 1 MΩ?

YES

The RFS+ and RFS- wires are not shorted. Go to step 6.

Short to ground in the engine compartment wire harness or the dashboard wire harness; replace the faulty harness, then clear the DTC.

Shorted wire check (RFS+, RFS- lines to power)

-1. the negative cable to the Battery.

- 2. Turn the vehicle to the ON mode.

- 3. Measure the voltage between test points 1 and 2.

Test condition	Vehicle ON mode
	SRS unit connector A (39P): disconnected
	Right front impact sensor 2P connector (on the engine compartment wire harness): disconnected
Test point 1	SRS unit connector A (39P) No. 29 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
Test point 2	Body ground

Test point 1	SRS unit connector A (39P) No. 30 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020),
Test point 2	Body ground

Is there 0.2 V or less?

YES

The RFS+ and RFS- wires are not shorted to power. Go to step 7.

Short to power in the engine compartment wire harness or the dashboard wire harness; replace the faulty harness, then clear the DTC.

Open wire check (RFS+, RFS- lines)

-1. Turn the vehicle to the OFF (LOCK) mode.

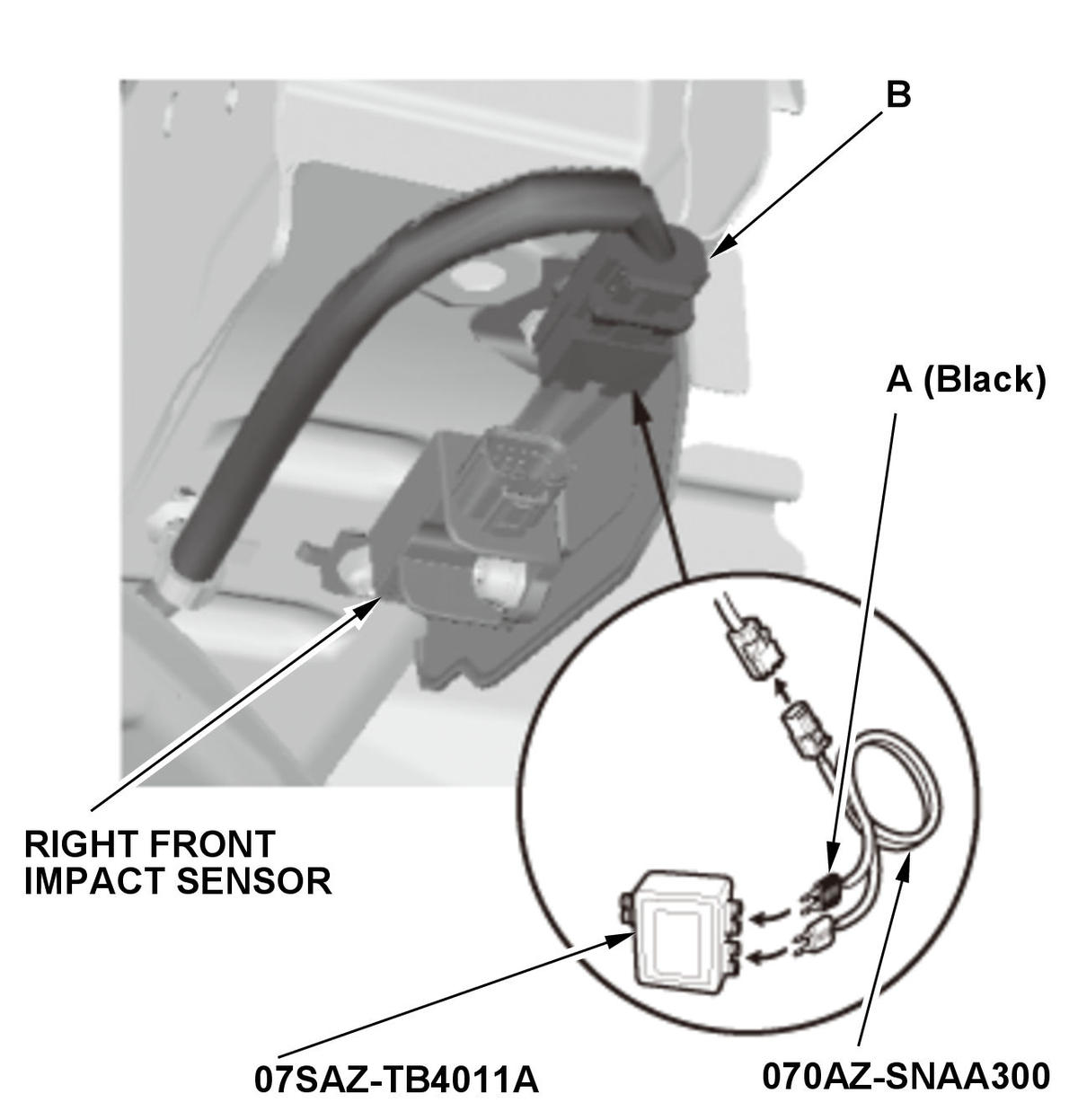

- 2. Connect the black terminal (A) of SRS simulator lead L to the SRS inflator simulator (jumper connector), then connect SRS simulator lead L to the right front impact sensor 2P connector (B) on the right engine compartment wire harness.

Courtesy of HONDA, U.S.A., INC.

- 3. Measure the resistance between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	SRS unit connector A (39P): disconnected
	Right front impact sensor 2P connector (on the engine compartment wire harness): disconnected
	Right front impact sensor 2P connector (on the right engine compartment wire harness): connected to SRS simulator lead L
Test point 1	SRS unit connector A (39P) No. 29 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
Test point 2	SRS unit connector A (39P) No. 30 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020)

Is there 1.0 Ω or less?

YES

The RFS+ and RFS- wires are OK. Replace the right front impact sensor , then clear the DTC, and retest. If the DTC is still present, check for any authorized service information related to the DTCs or symptoms you are troubleshooting or replace the SRS unit - Refer to: SRS Unit Removal and Installation, or SRS Unit Removal and Installation (2017 2018 2019 2020) .

Open in the engine compartment wire harness or the dashboard wire harness; replace the faulty harness, then clear the DTC.
