DTC B007A-11 (2017 2018 2019 2020)

DTC B007A-11  : Short to Ground in the Front Passenger's Seat Belt Outer Lap Tensioner

Special Tools Required

-SRS Inflator Simulator 07SAZ-TB4011A

-SRS Simulator Lead M 070AZ-SNAA400

NOTE: Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed .
• Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and Battery Terminal Disconnection and Reconnection - Refer to: Battery Terminal Disconnection and Reconnection .

DTC (SRS)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 3. Check for DTCs with the HDS.

   DTC Description	DTC
   P007A-11 Short to ground in the front passenger's seat belt outer lap tensioner

   Is DTC B007A-11 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.

2. Front passenger's seat belt outer lap tensioner check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the negative cable from the battery, then wait at least 3 minutes.

   - 3. Disconnect the front passenger's seat belt outer lap tensioner 2P connector (A) on the floor wire harness.

   Courtesy of HONDA, U.S.A., INC.

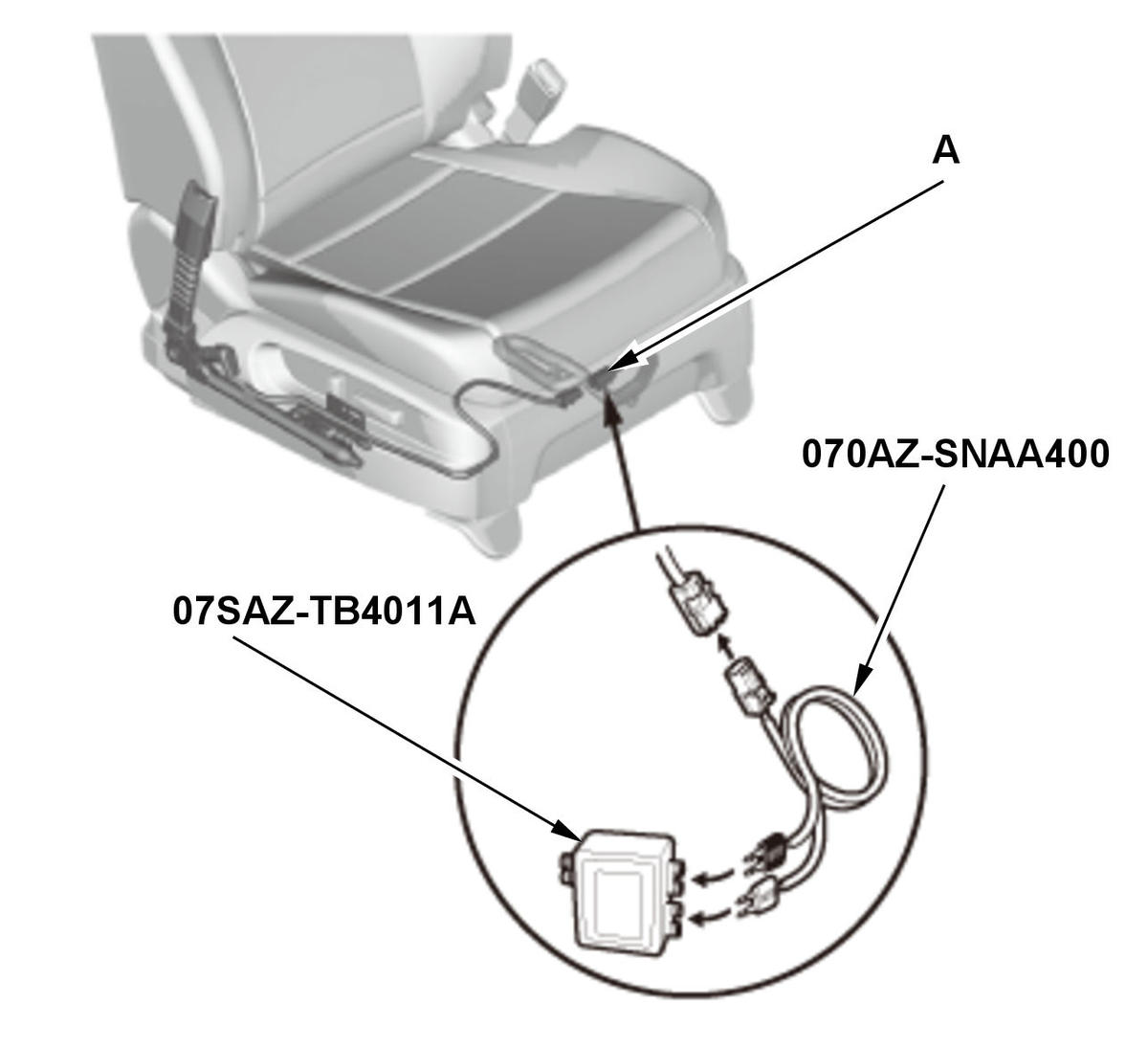

   - 4. Connect the terminals of SRS simulator lead M to the SRS inflator simulator (2 ' connectors), then connect SRS simulator lead M to the front passenger's seat belt outer lap tensioner 2P connector on the floor wire harness.

   - 5. Reconnect the negative cable to the battery.

   - 6. Clear the DTCs with the HDS.

   - 7. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 8. Check for DTCs with the HDS.

   DTC Description	DTC
   P007A-11 Short to ground in the front passenger's seat belt outer lap tensioner

   Is DTC B007A-11 indicated?

   YES

   Go to step 3.

   NO

   Short to ground in the front passenger's seat belt outer lap tensioner; replace the front passenger's seat belt outer lap tensioner , then clear the DTC.

3. Shorted wire check (RLAP P+, RLAP P- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the negative cable from the battery, then wait at least 3 minutes.

   - 3. Disconnect the following connector.

   SRS unit connector B (39P)

   - 4. Disconnect SRS simulator lead M from the front passenger's seat belt outer lap tensioner 2P connector on the floor wire harness.

   - 5. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	SRS unit connector B (39P): disconnected
   	Right front seat belt outer lap tensioner 2P connector (on the floor wire harness): disconnected
   Test point 1	SRS unit connector B (39P) No. 22 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020)
   Test point 2	Body ground

   Test point 1	SRS unit connector B (39P) No. 23 - Refer to: SRS Unit Connector for Inputs and Outputs (2017 2018 2019 2020),
   Test point 2	Body ground

   Is there an open circuit, or at least 1 MΩ?

   YES

   The RLAP P+ and RLAP P- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection between the connector and the SRS unit. If the connection is OK, replace the SRS unit - Refer to: SRS Unit Removal and Installation (2017 2018 2019 2020), . If the DTC does not clear, replace the floor wire harness.

   NO

   Short to ground in the floor wire harness; replace the floor wire harness, then clear the DTC.
